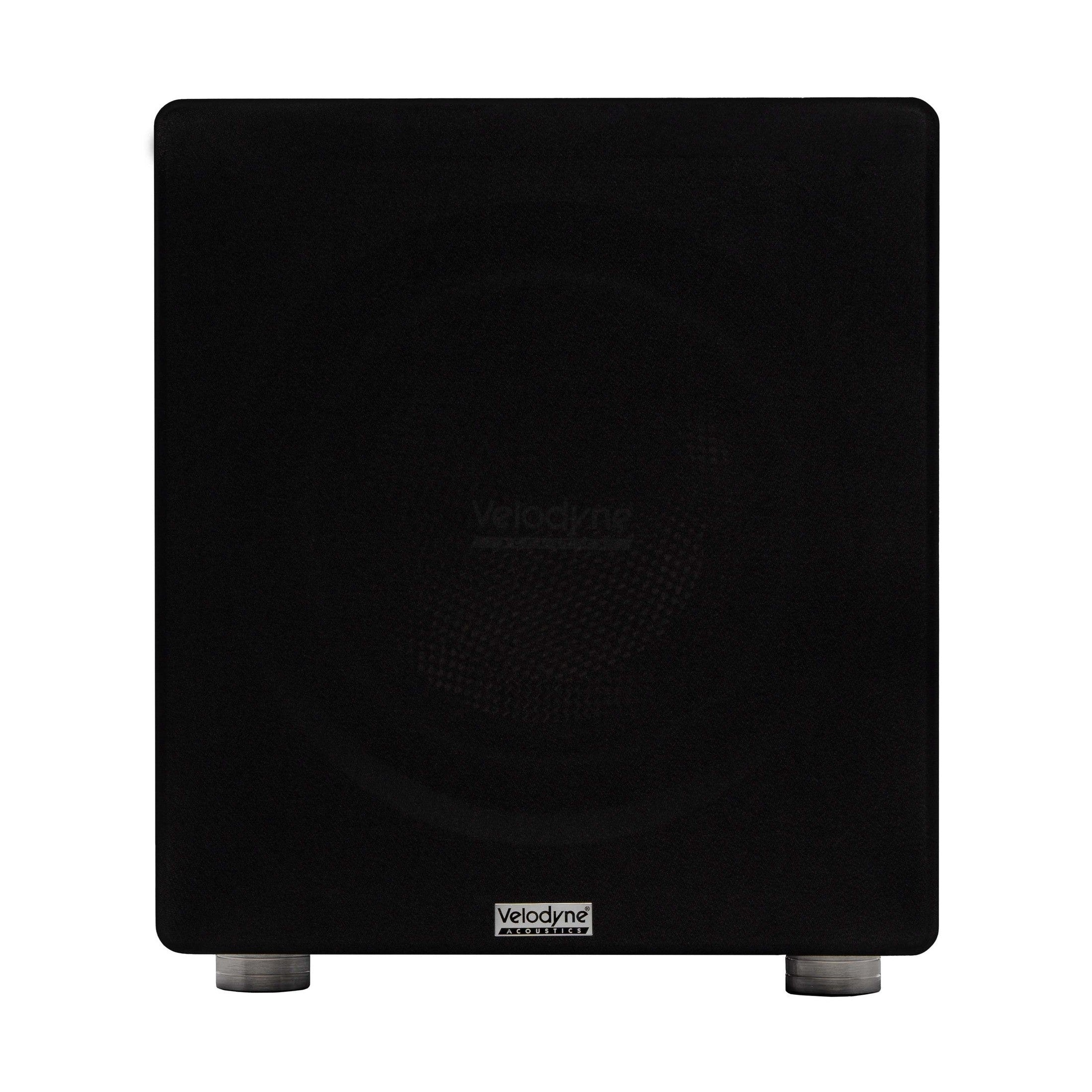

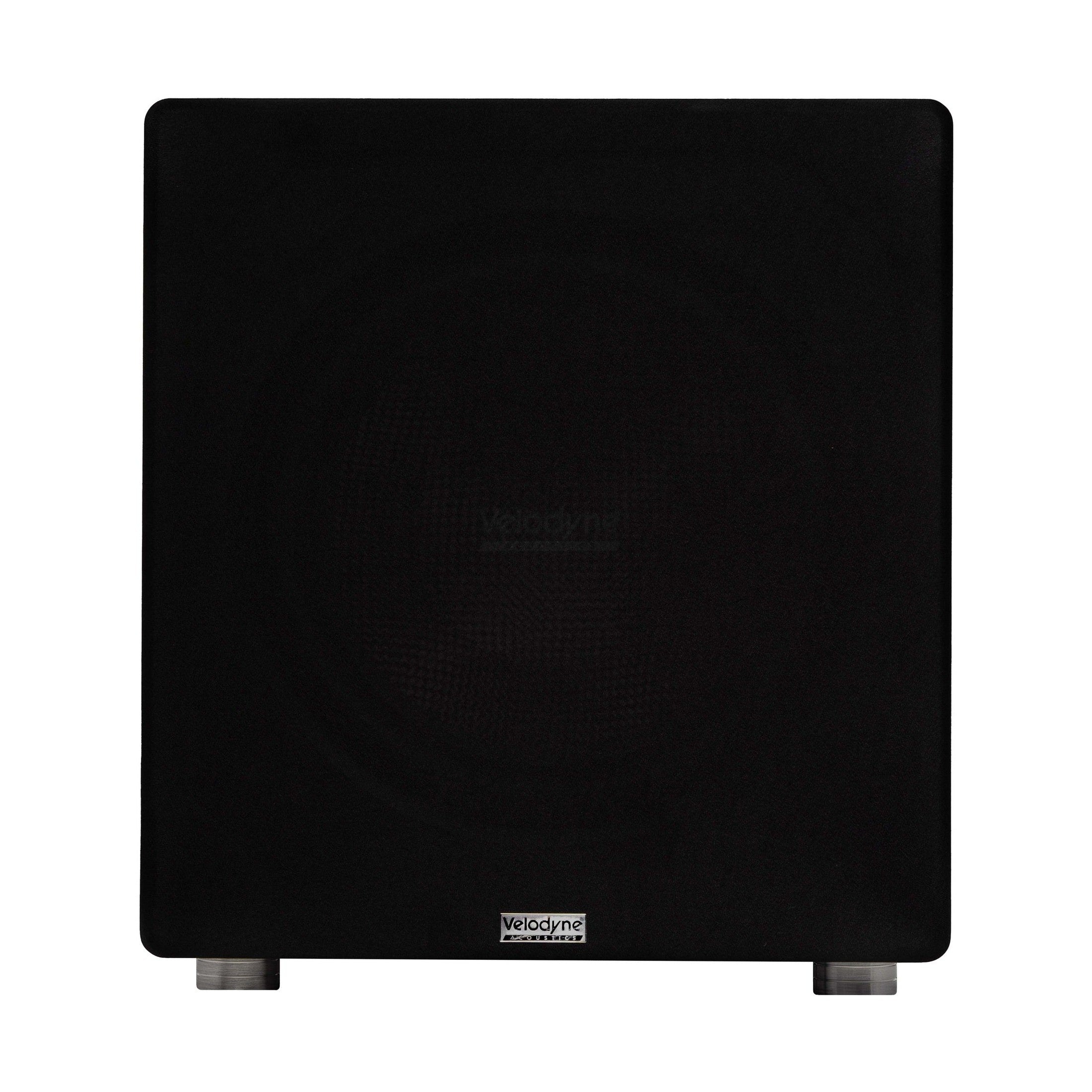

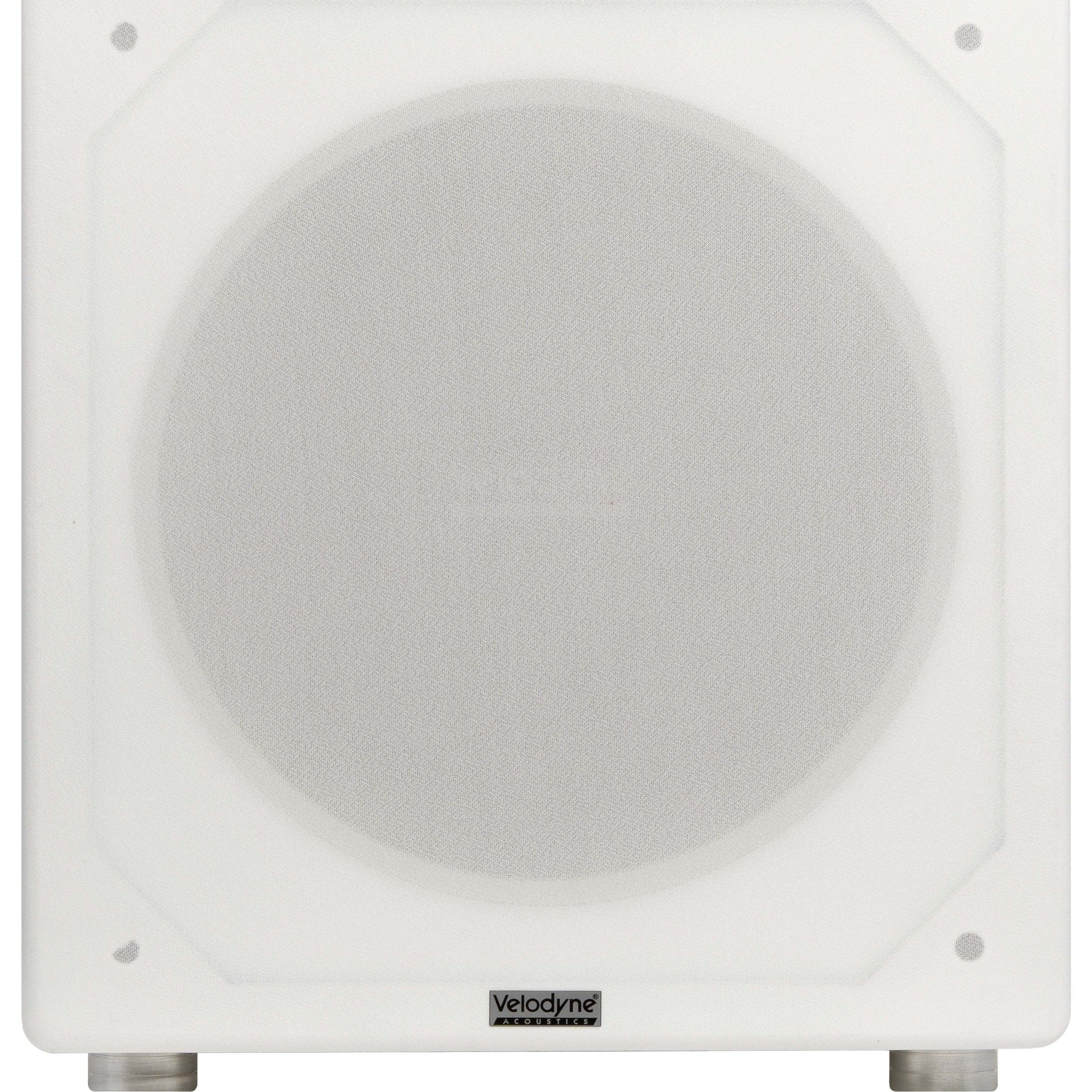

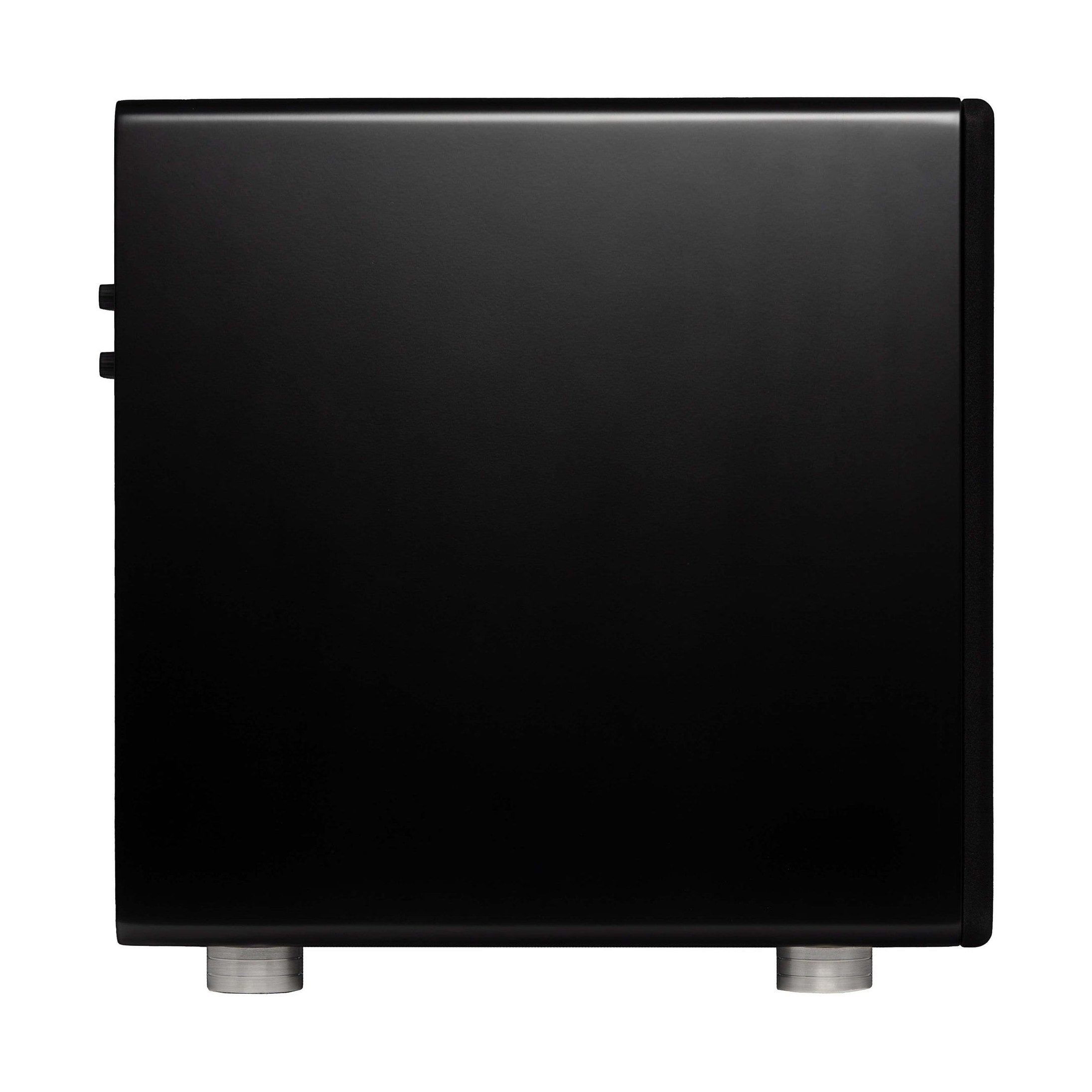

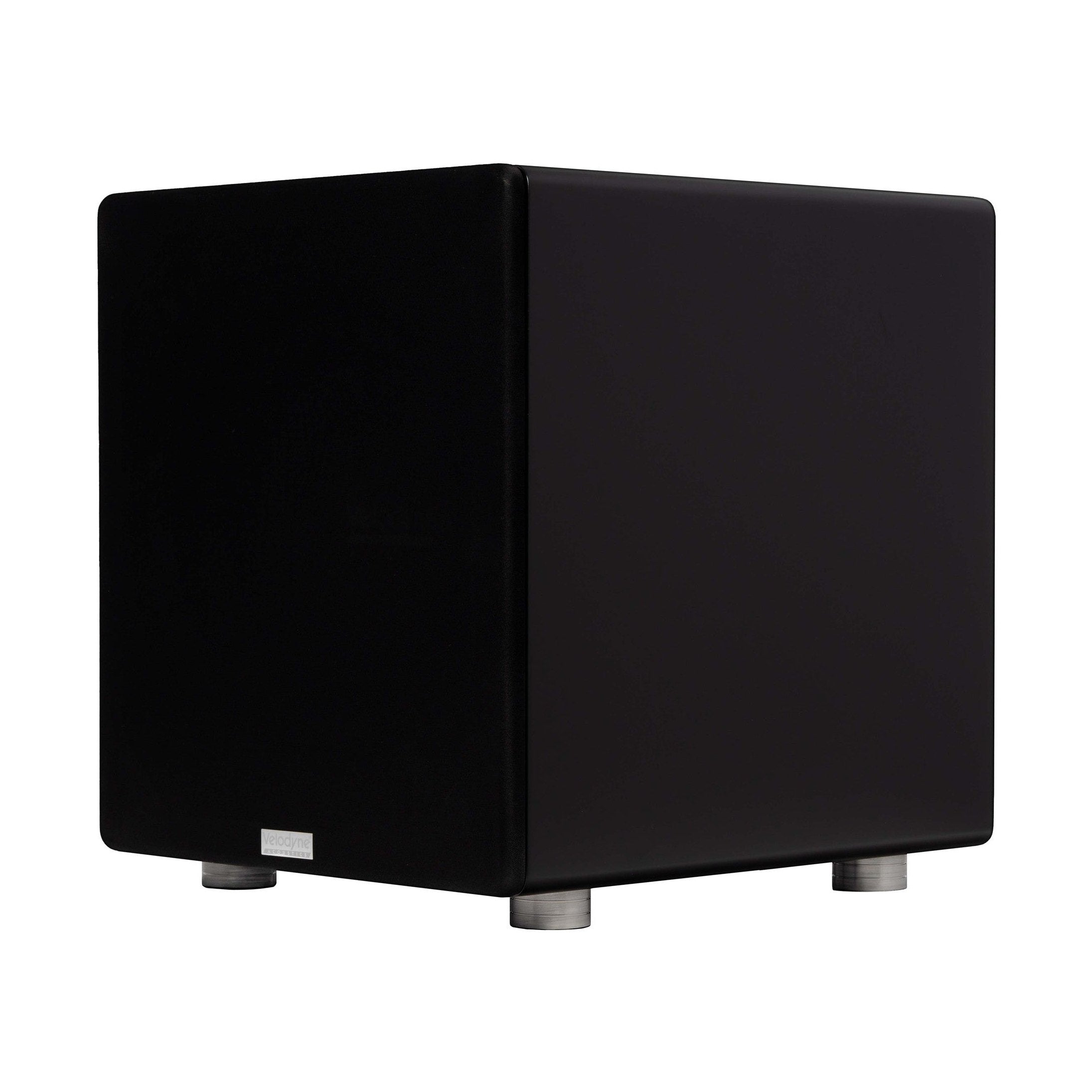

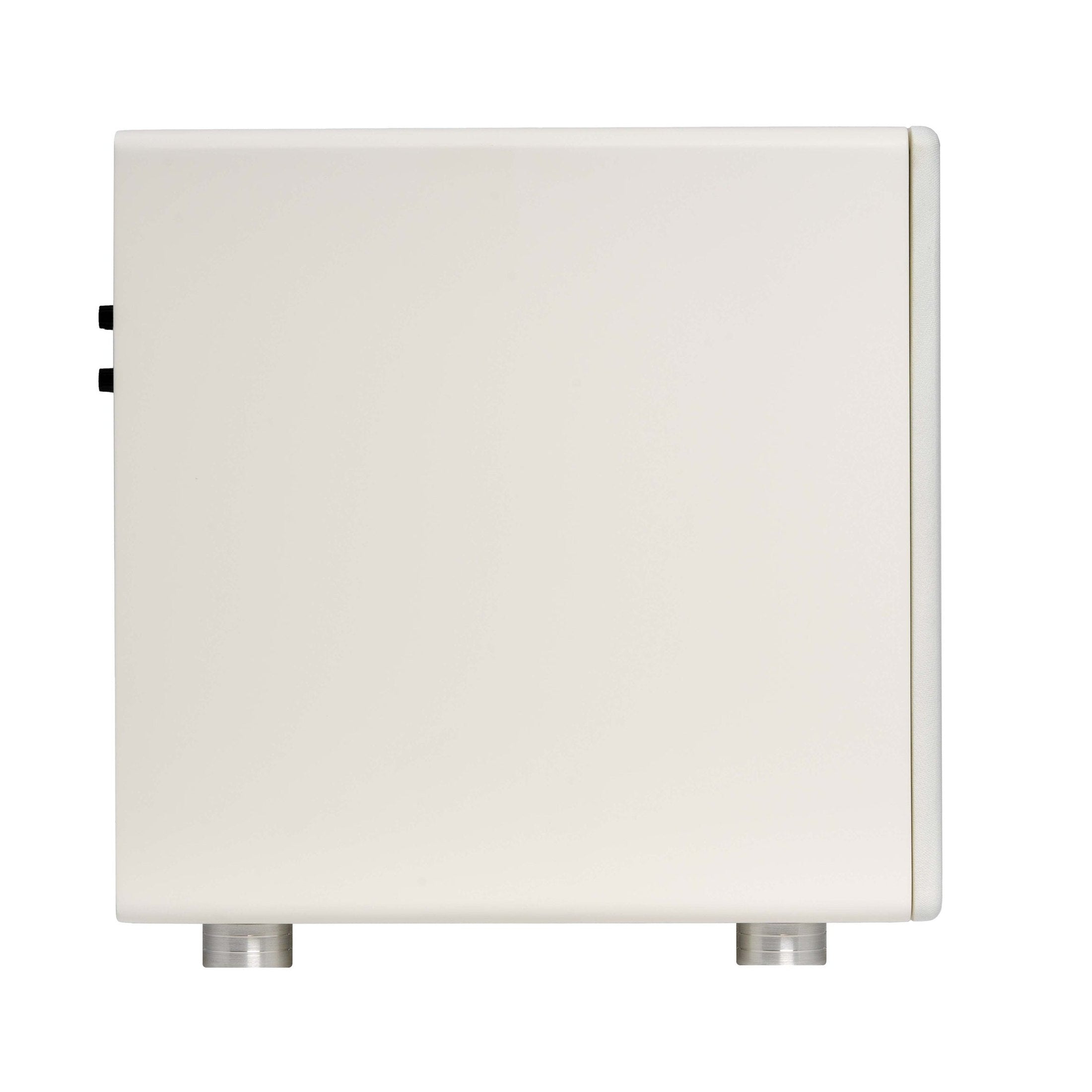

The sealed cabinet design of the VI-Q series features everything that makes Velodyne Acoustics Subwoofers stand out in a modern way. In addition, the three models provide a particularly high-quality driver configuration and the iWoofer™ app, which gives users full control with room adjustment, a 25-band parametric equalizer, and presets.
combine extremely high performance with low distortion with the best ease of use in a premium matte black enclosure.
| Driver | 10″ front firing driver |
|---|---|
| Amplifier Class D | 850 watt dynamic 450-watt RMS |
| Overall Frequency Response: (± 3 dB) | 28 – 200 Hz |
| Overall Frequency Response: (± 10 dB) | 25 – 280 Hz |
| Low Pass Crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet Design | 22mm HDF 50mm front |
| Magnet Structure | Dual ferrite magnet motor |

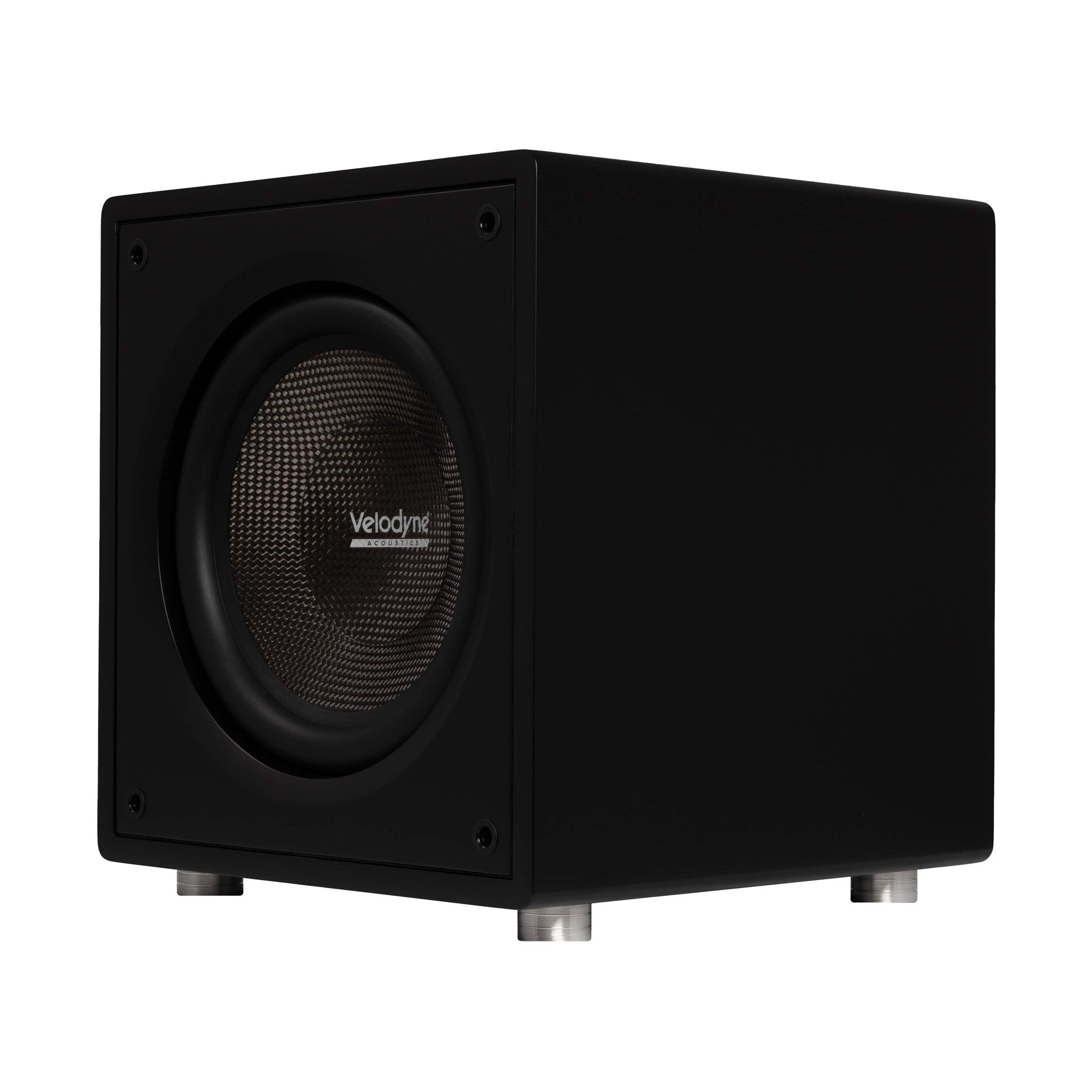

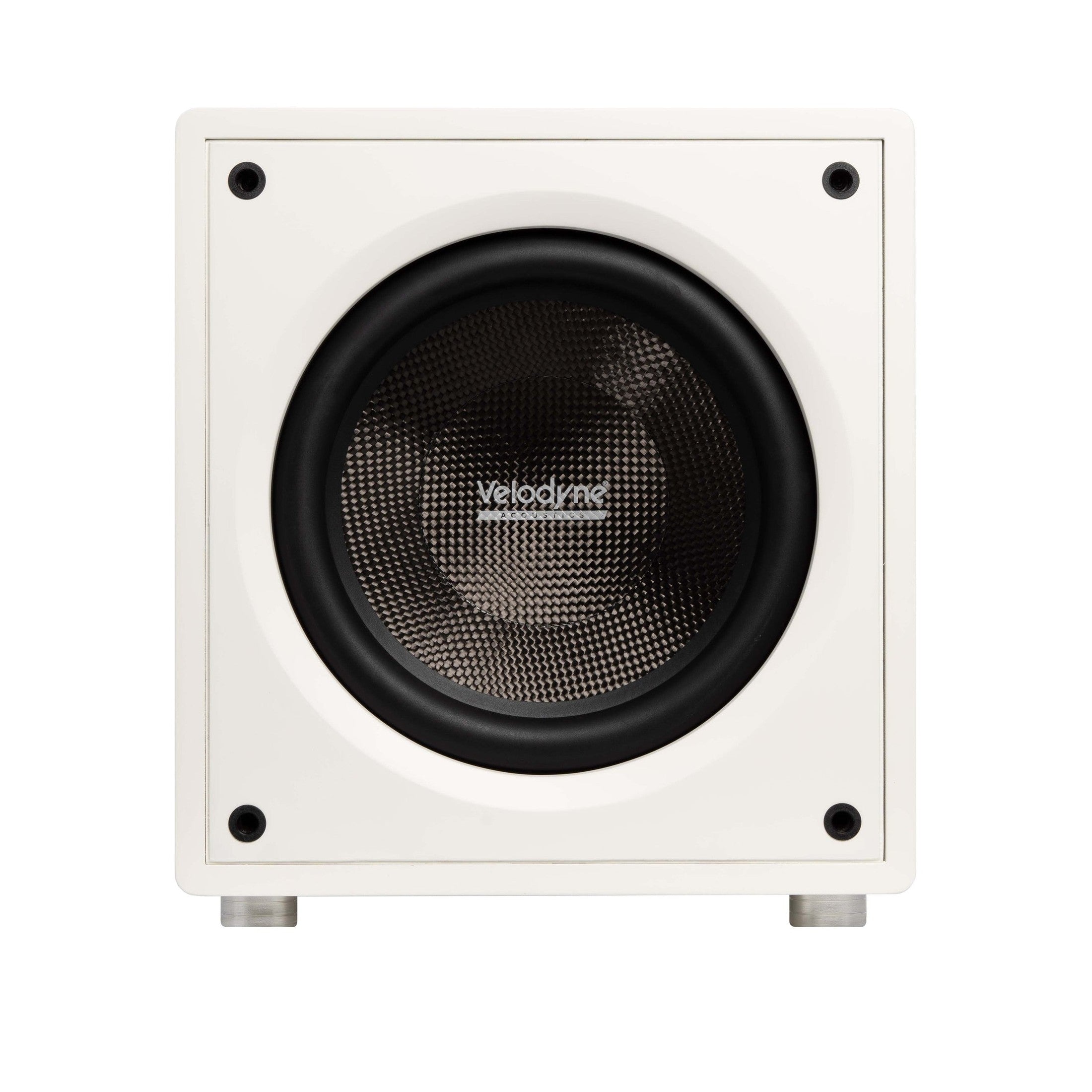

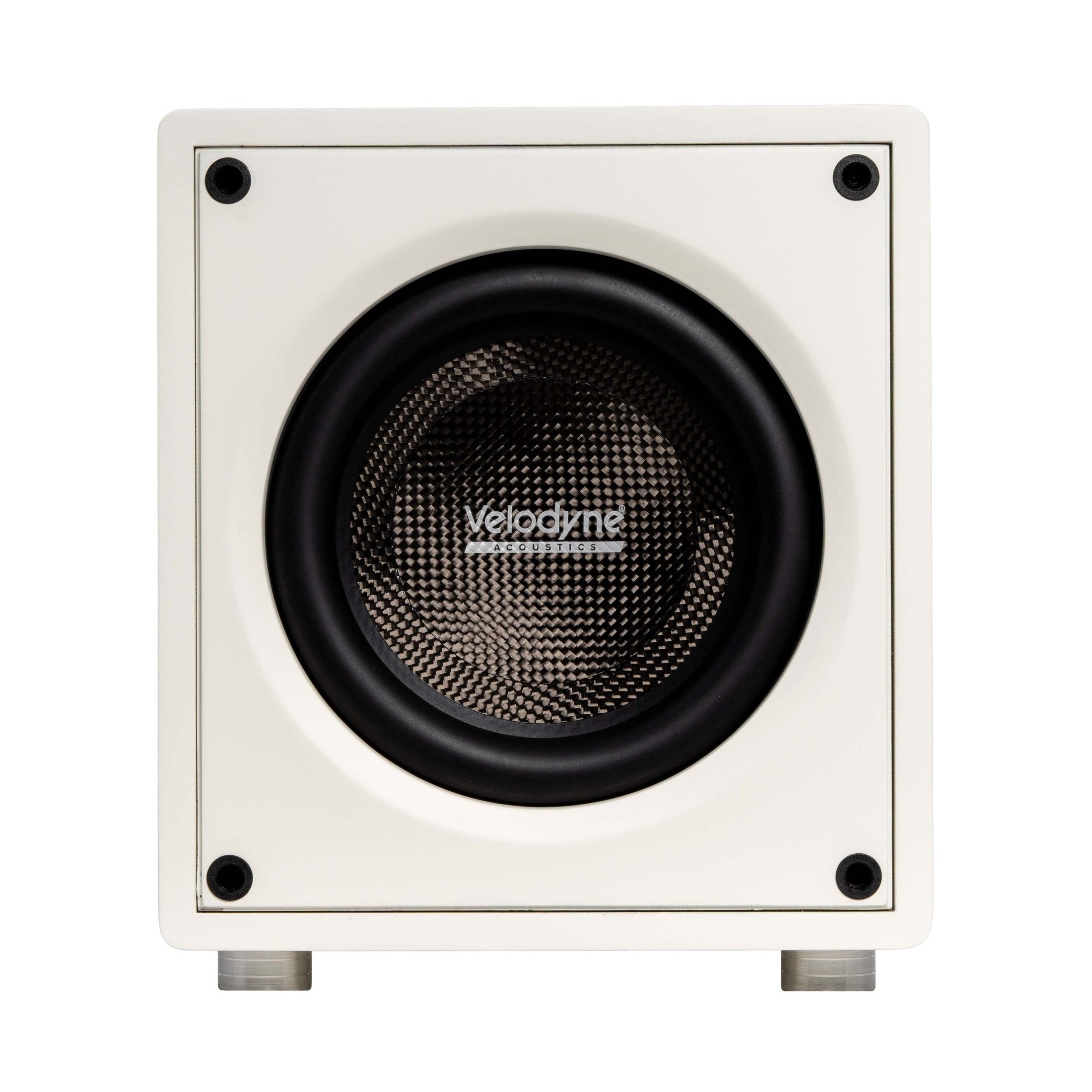

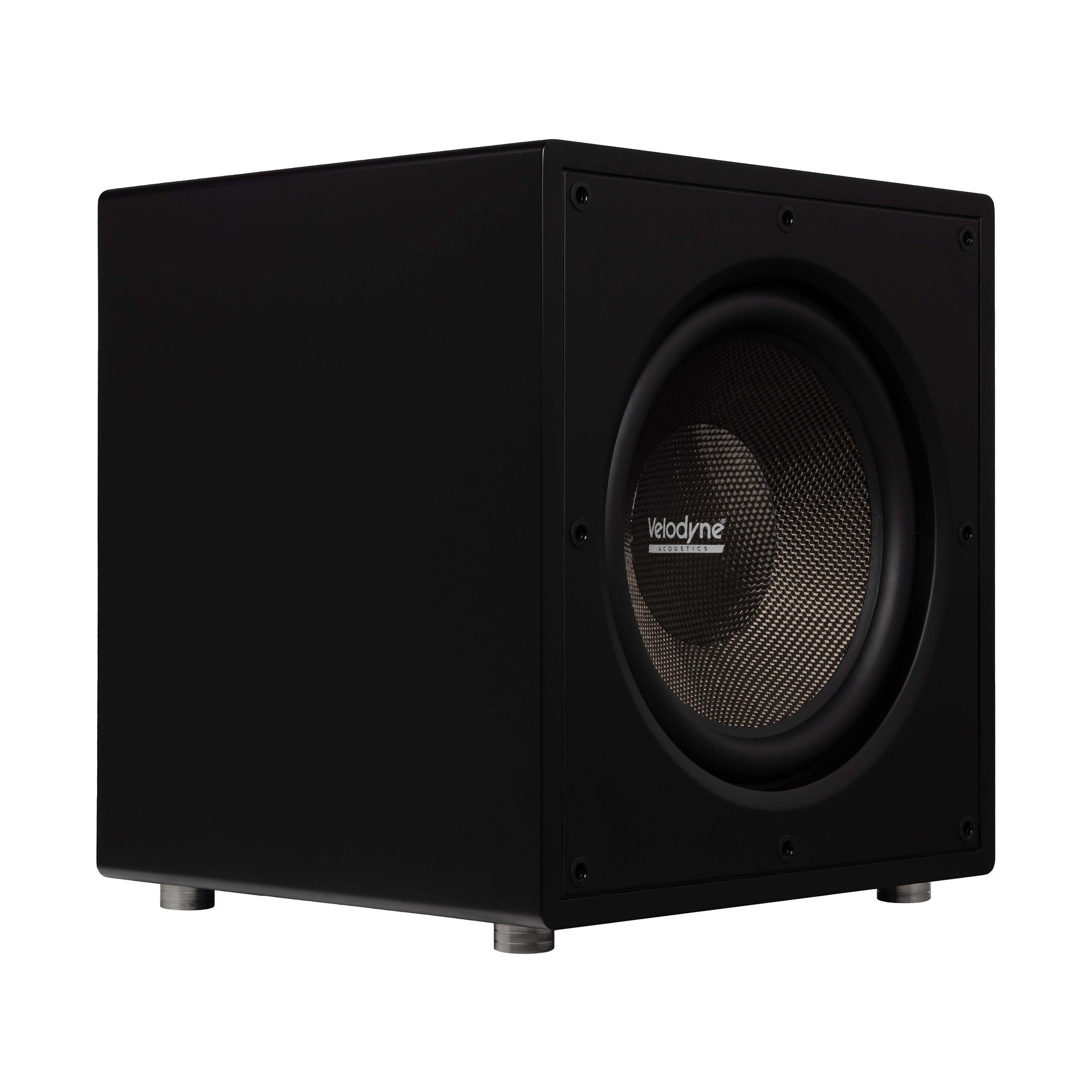

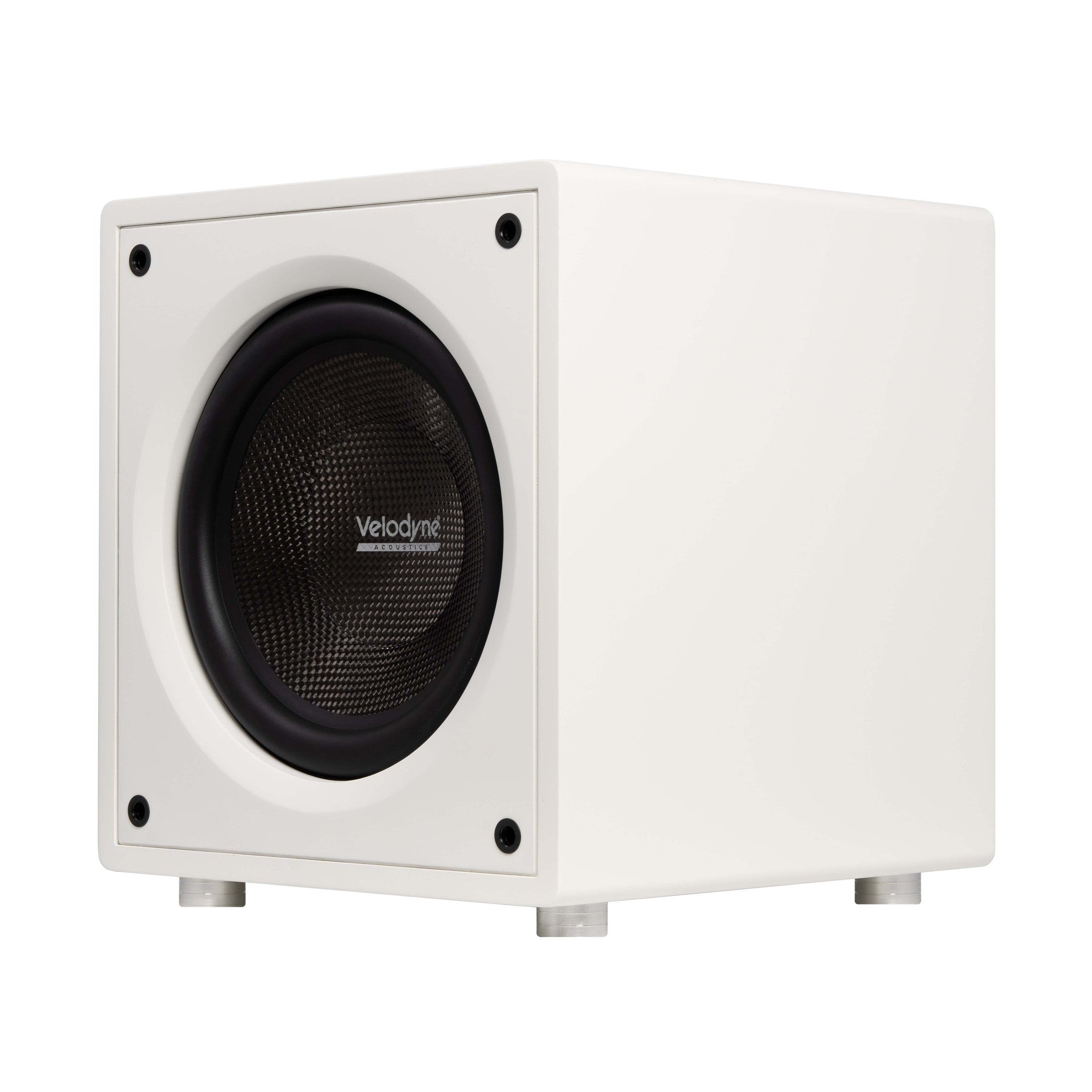

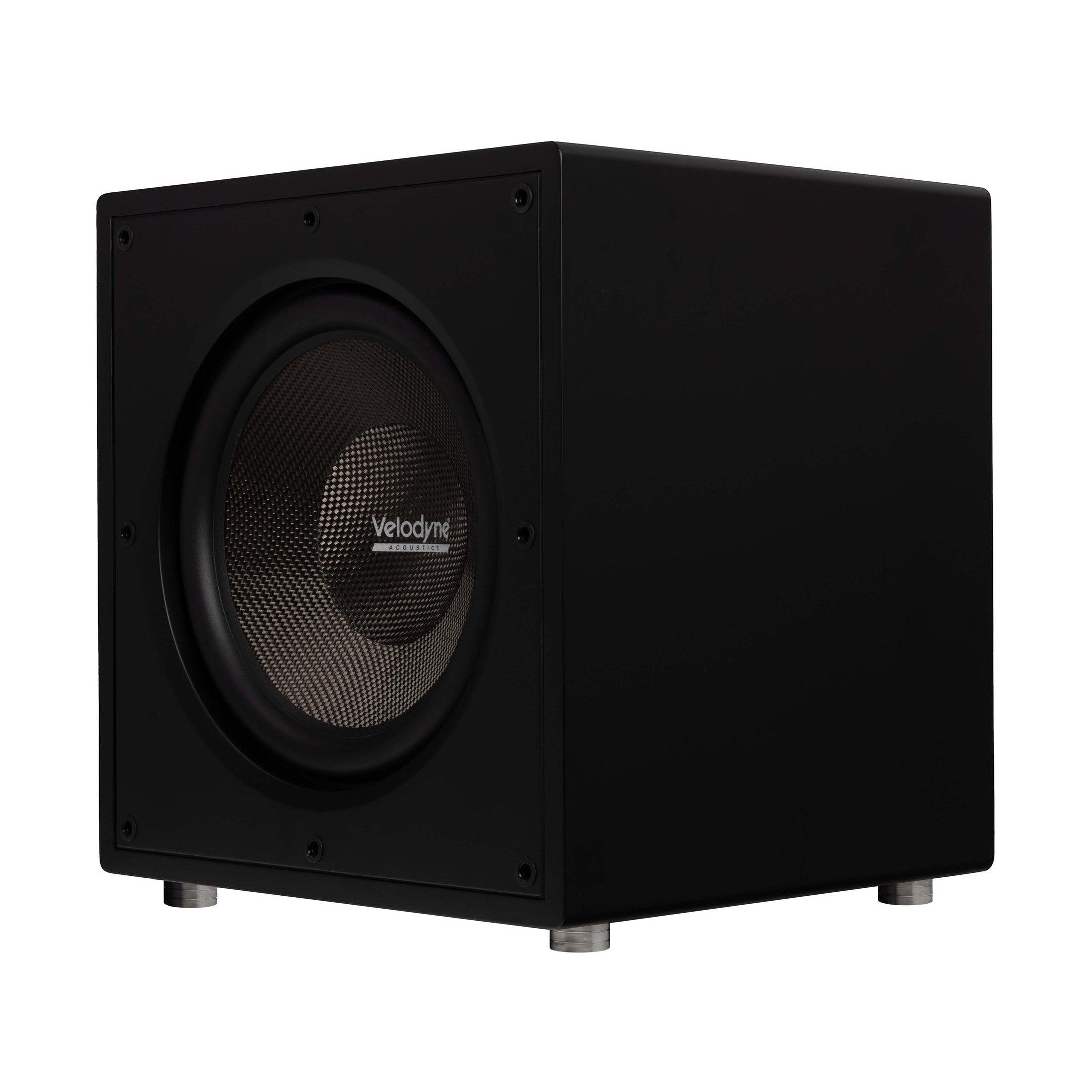

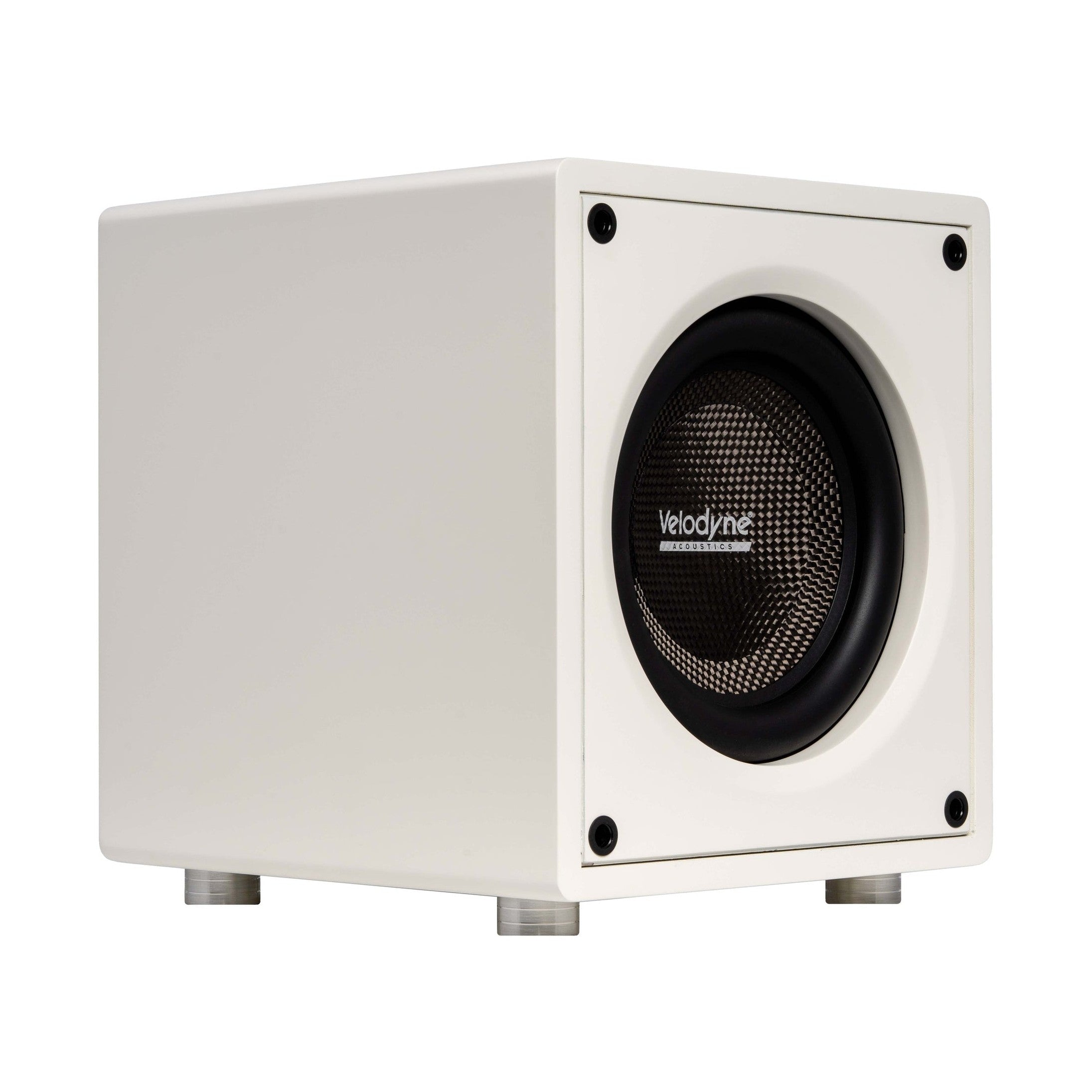

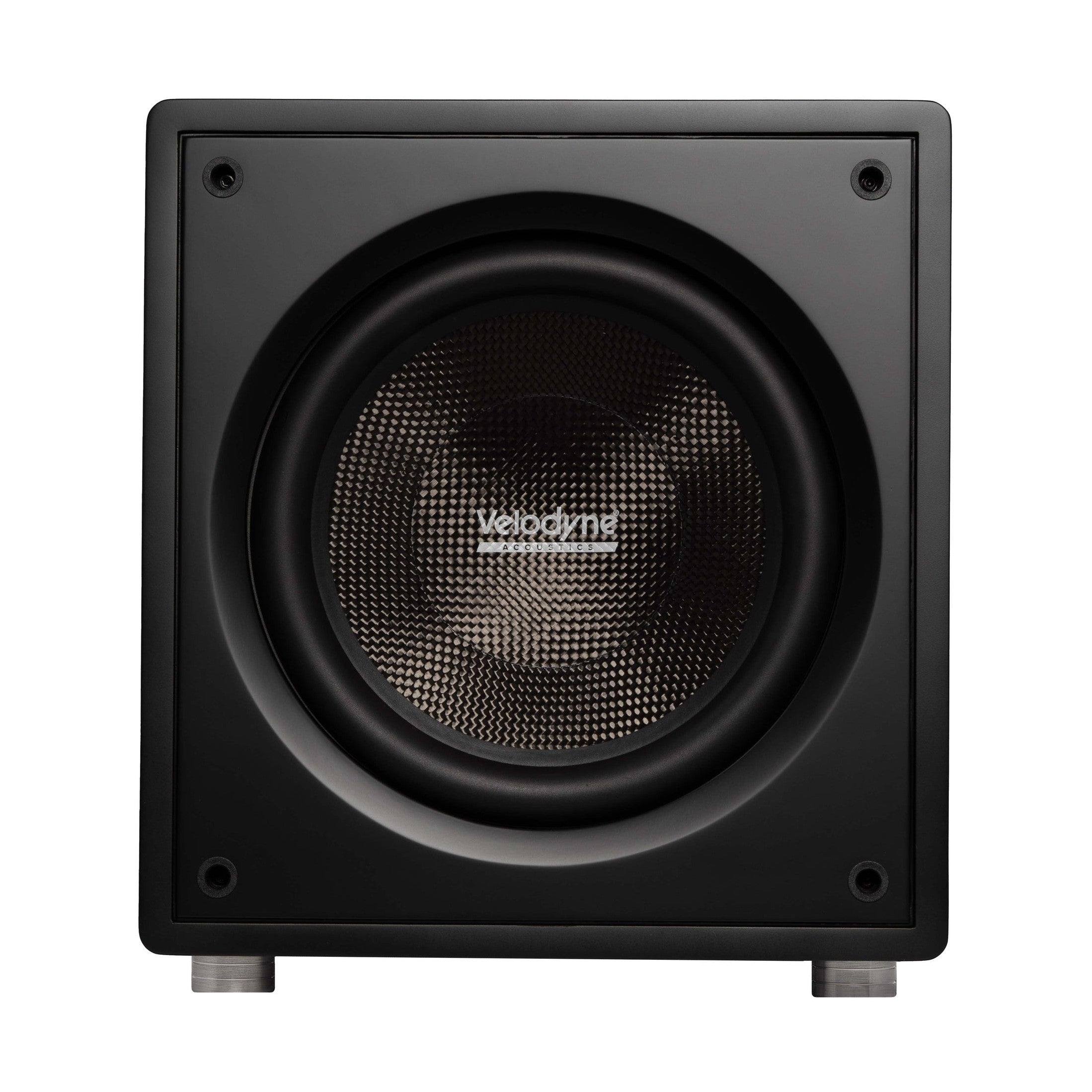

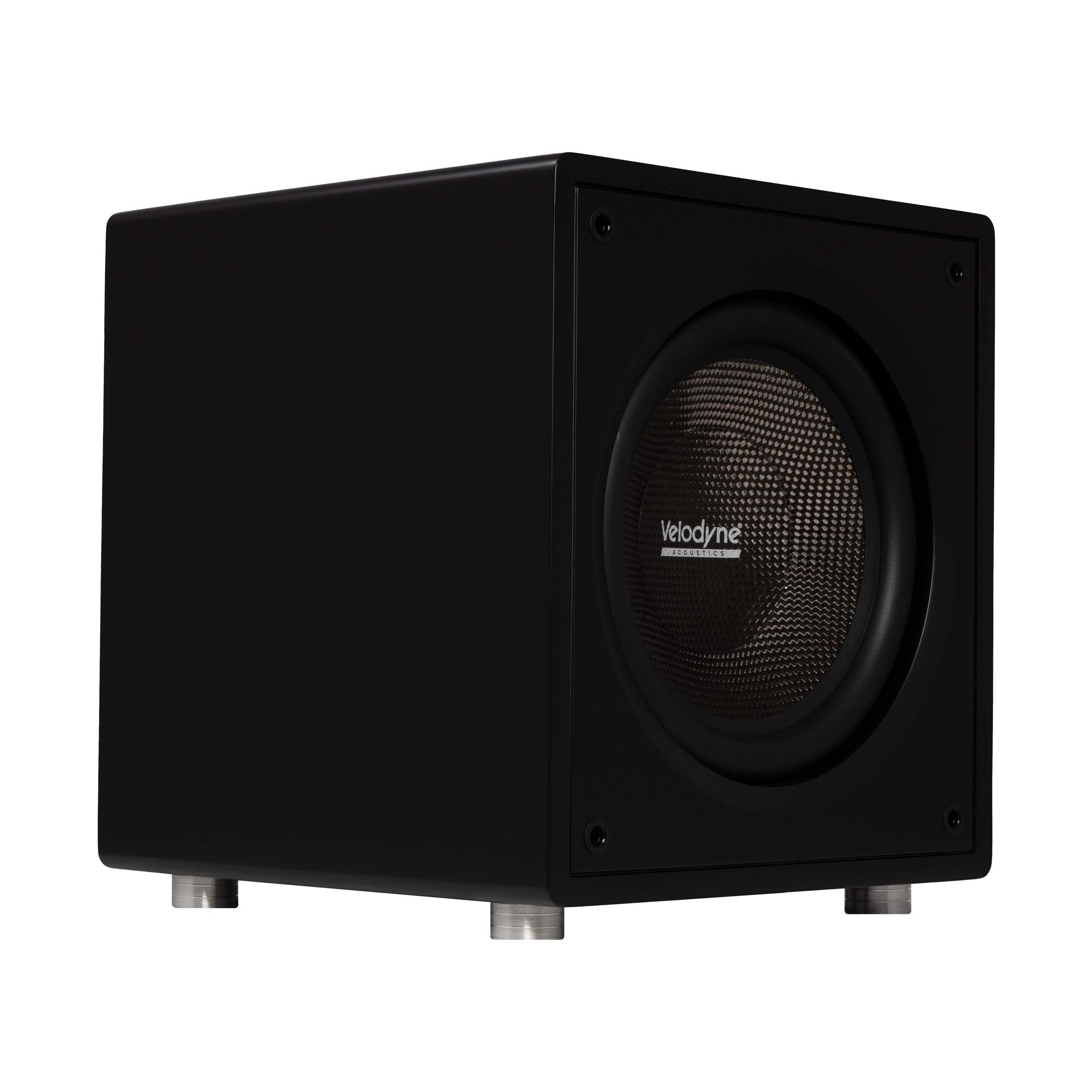

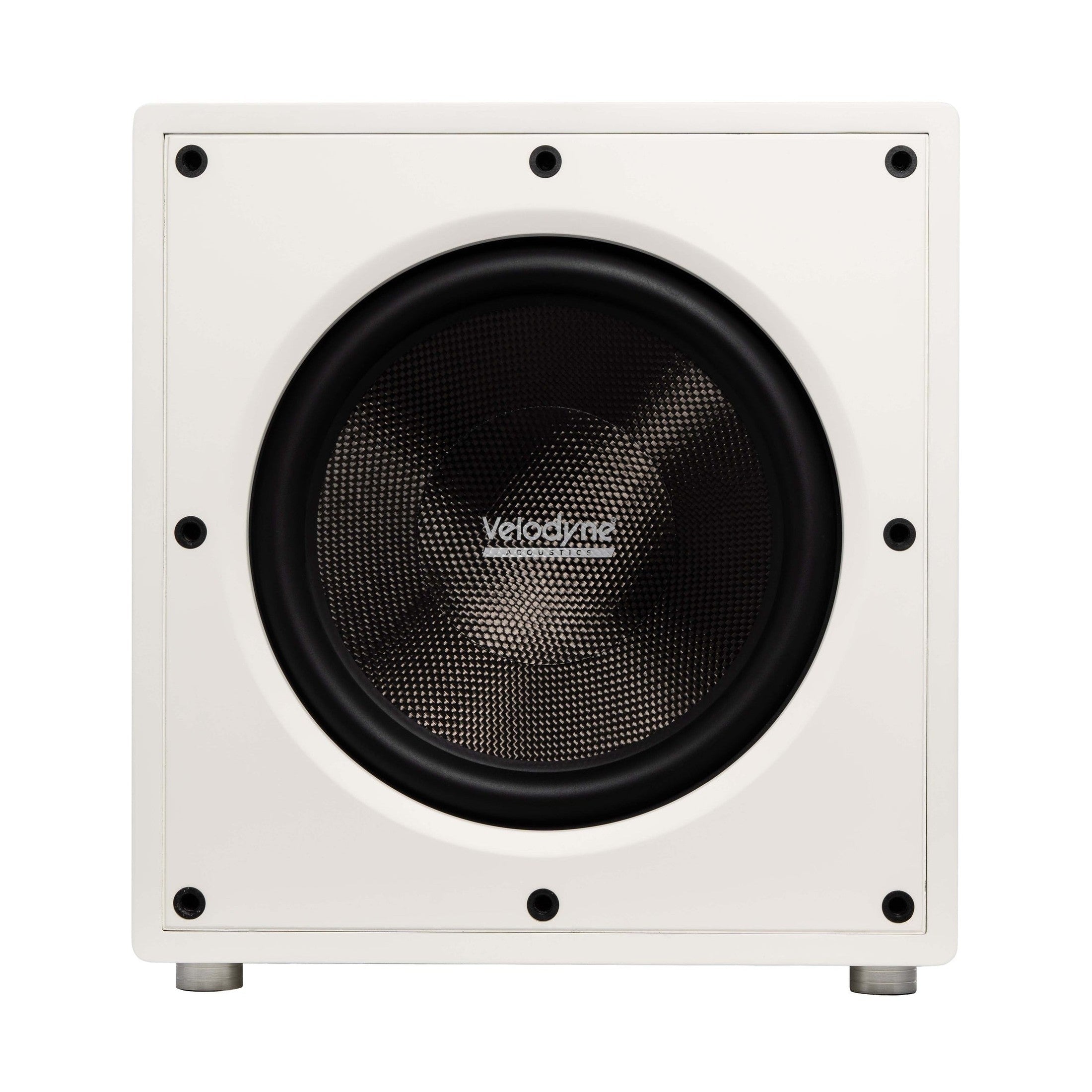

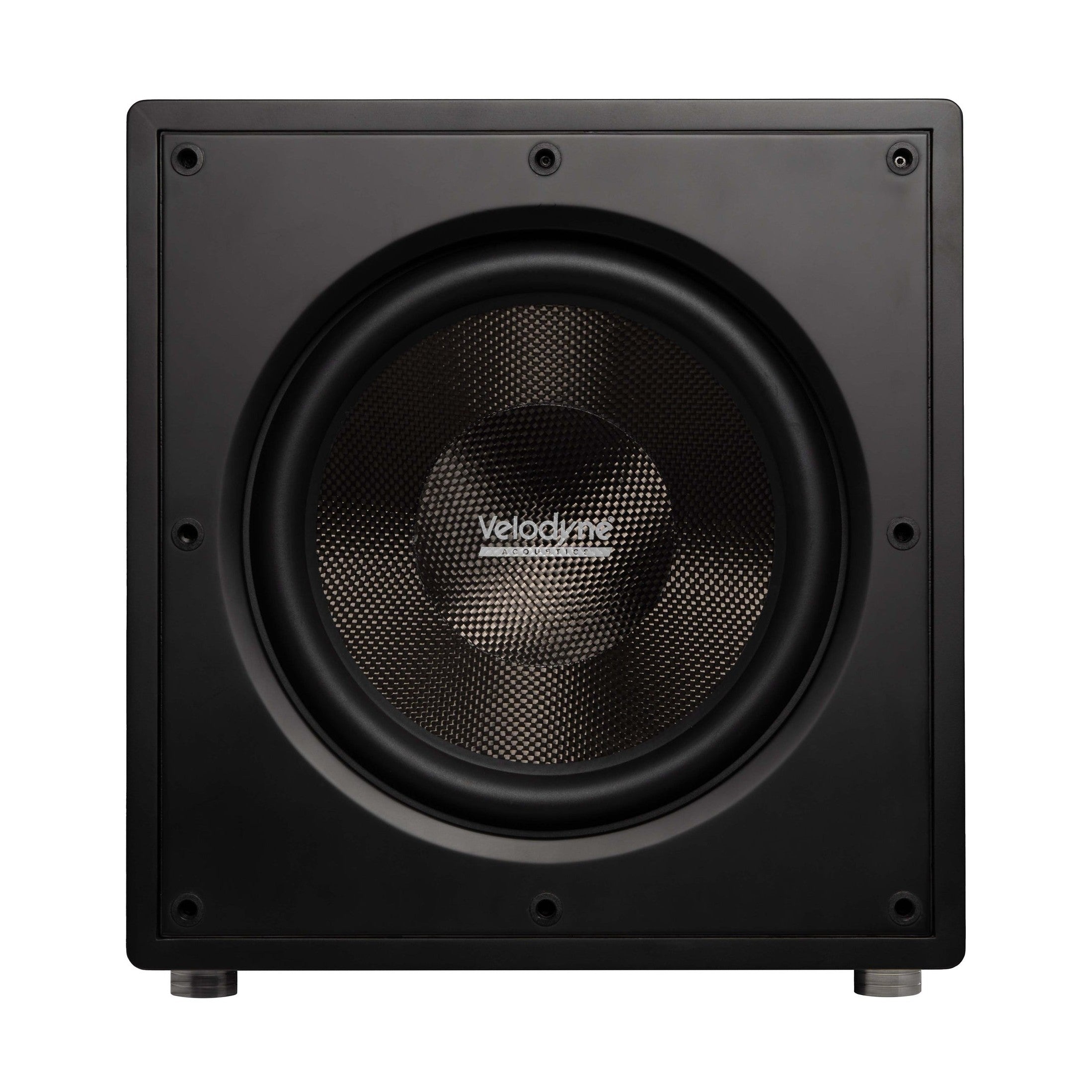

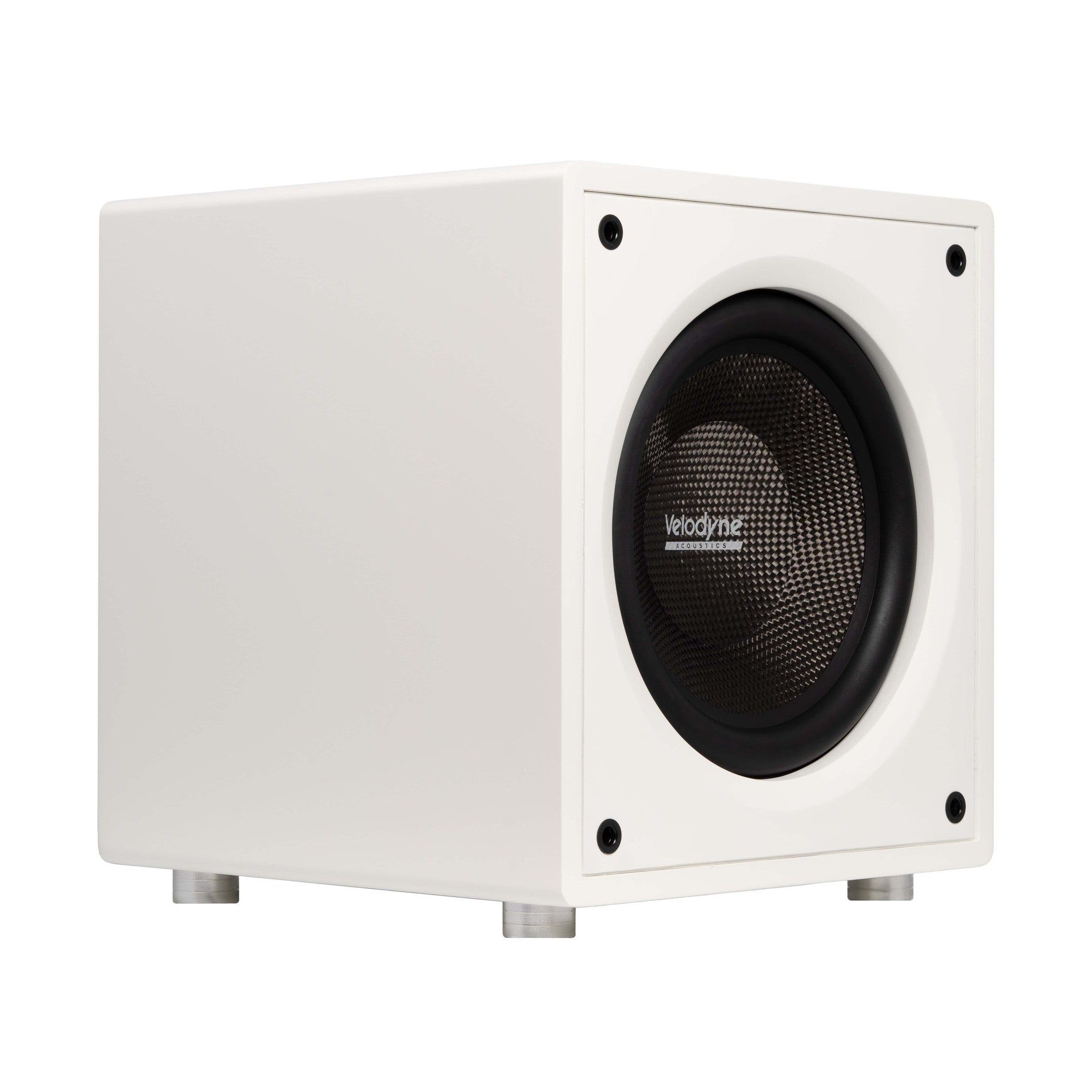

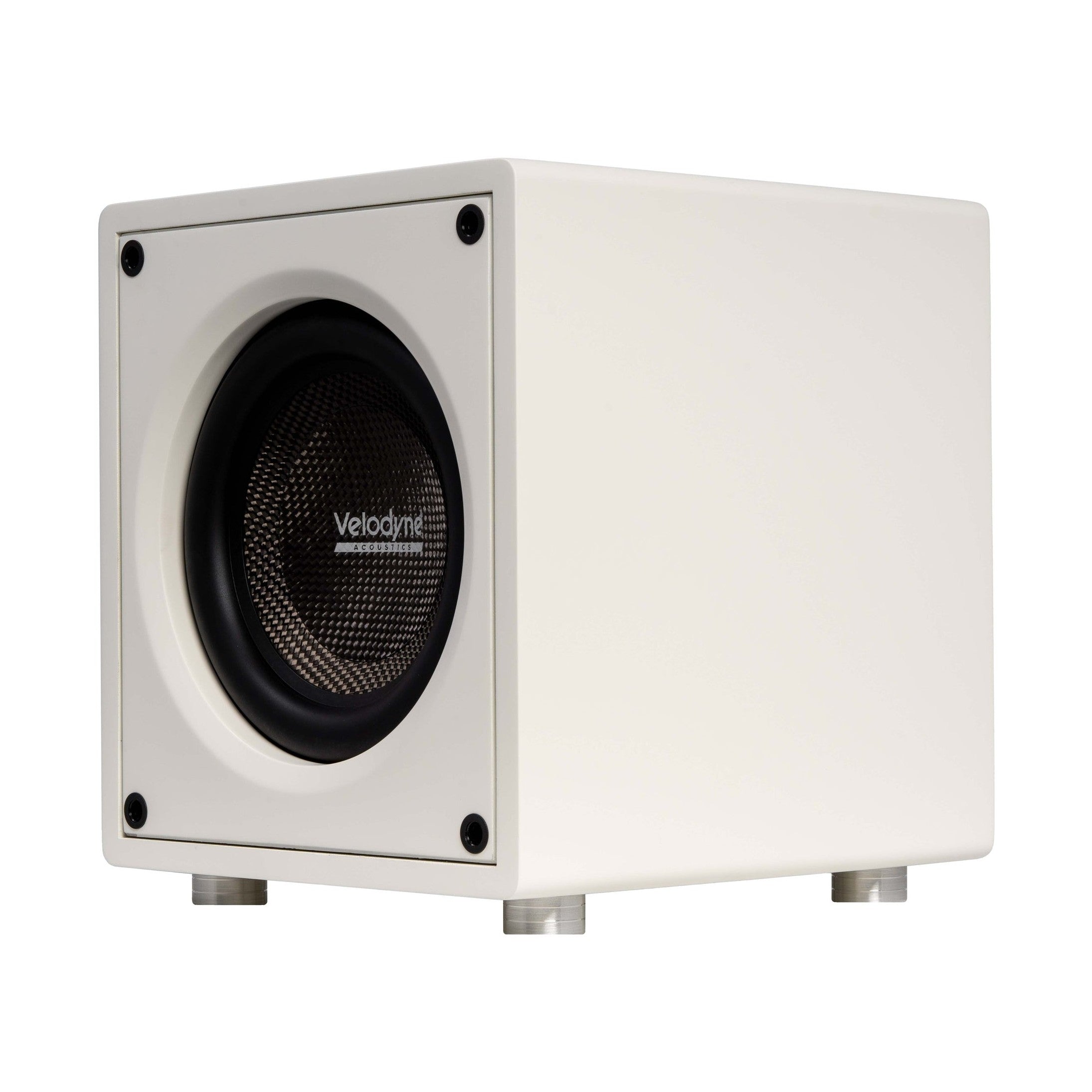

| Woofer | 10” high excursion triple vented basket driver with carbon fiber Membrane and convex cone |
| Voice Coil | Four Layer 2,5″ / 63mm voice coil |

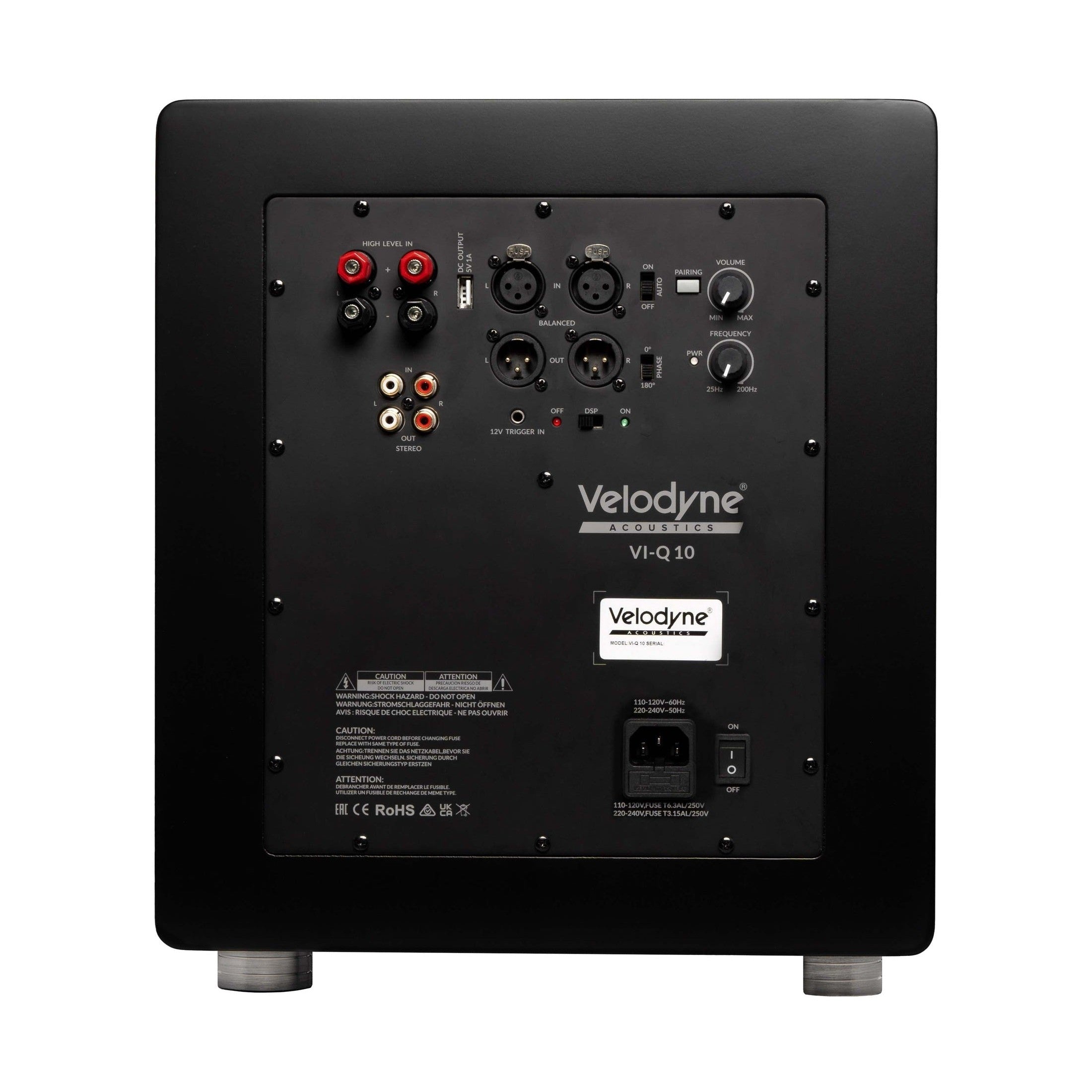

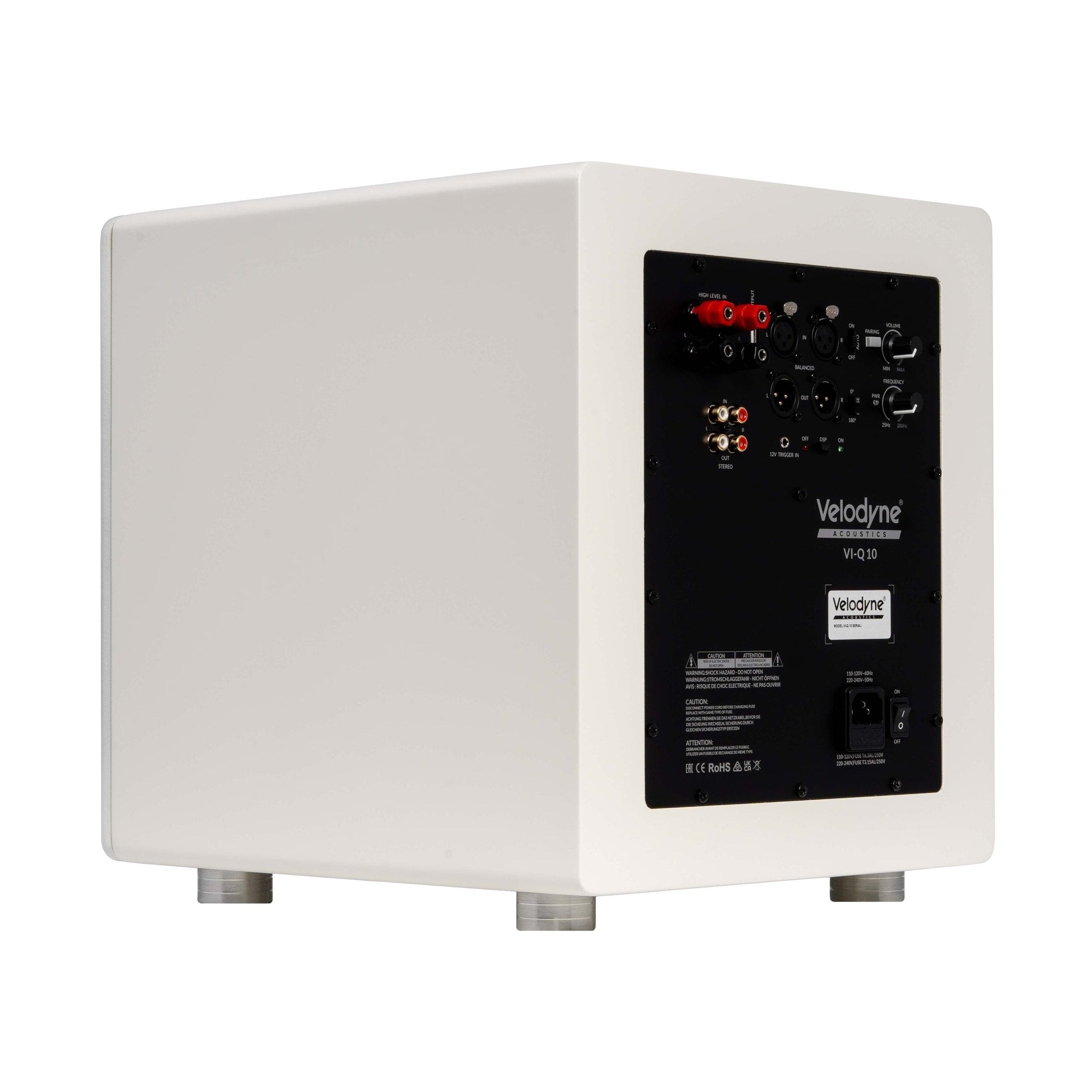

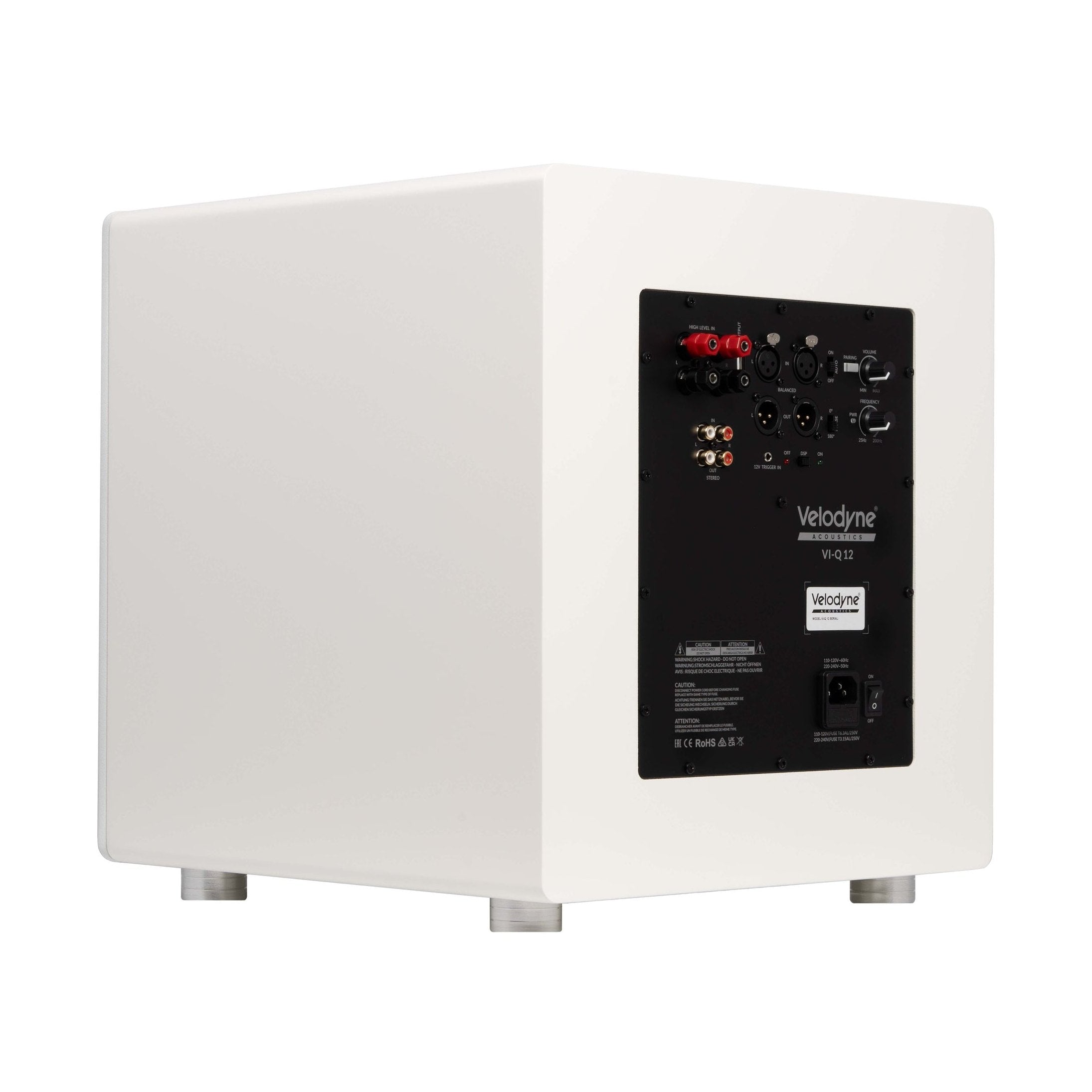

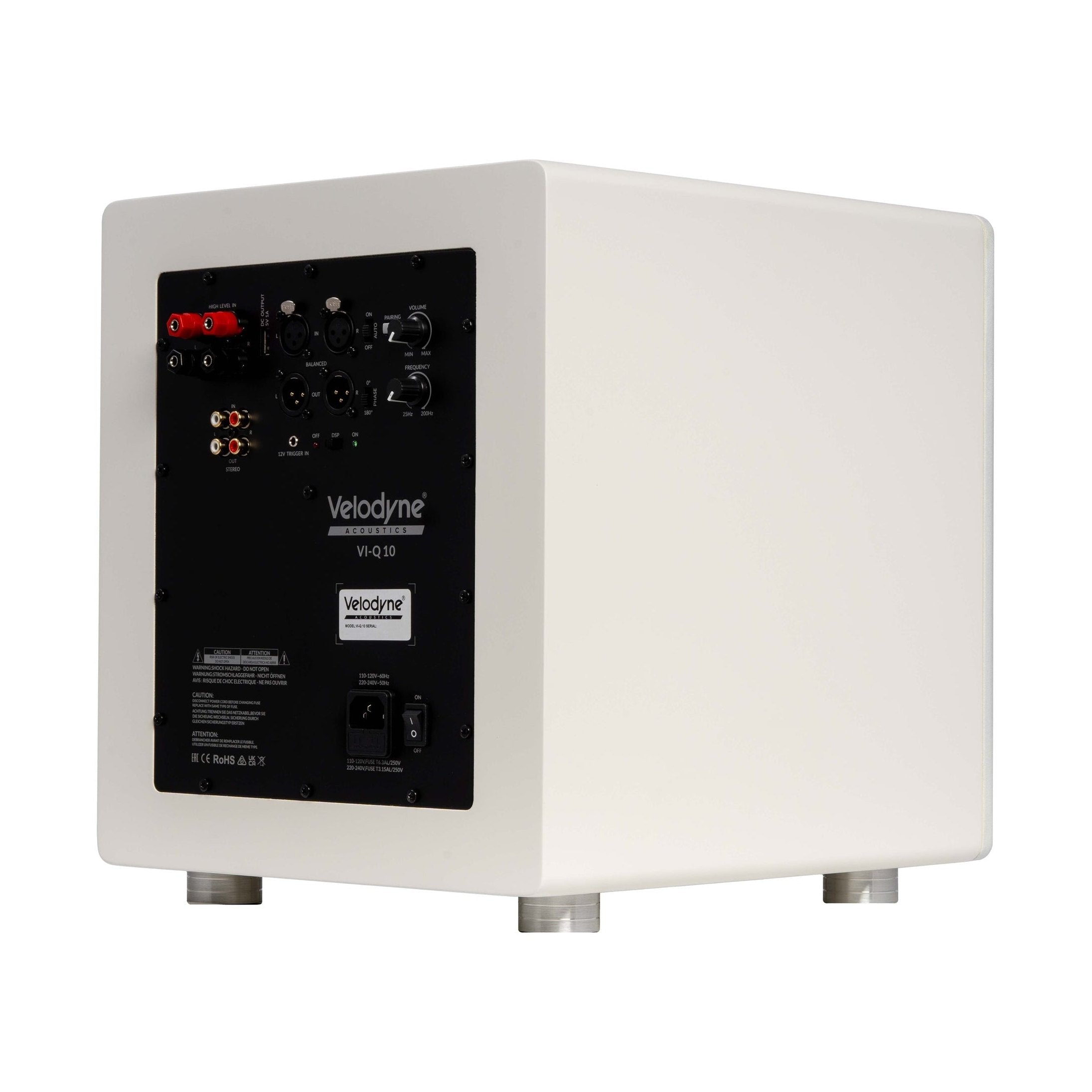

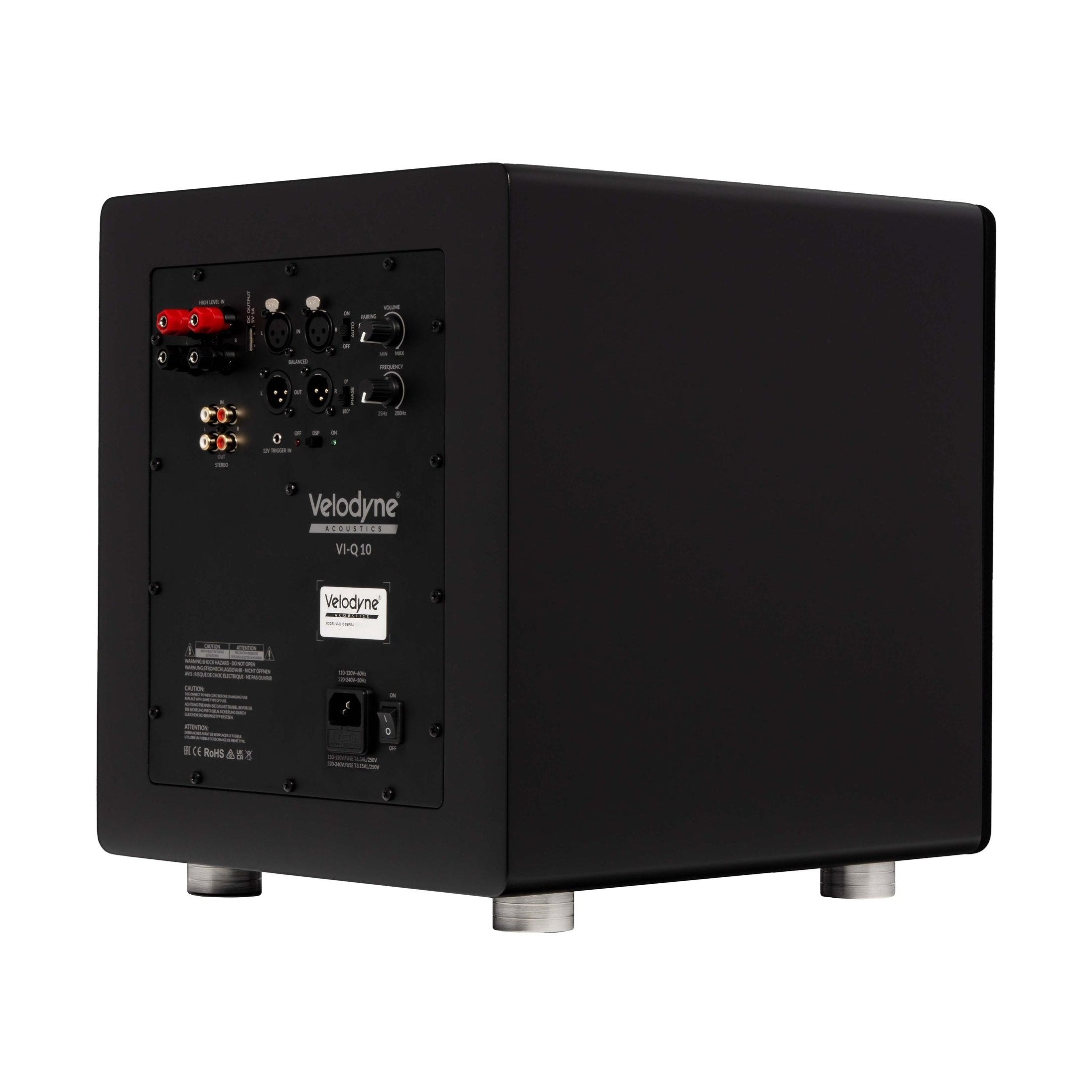

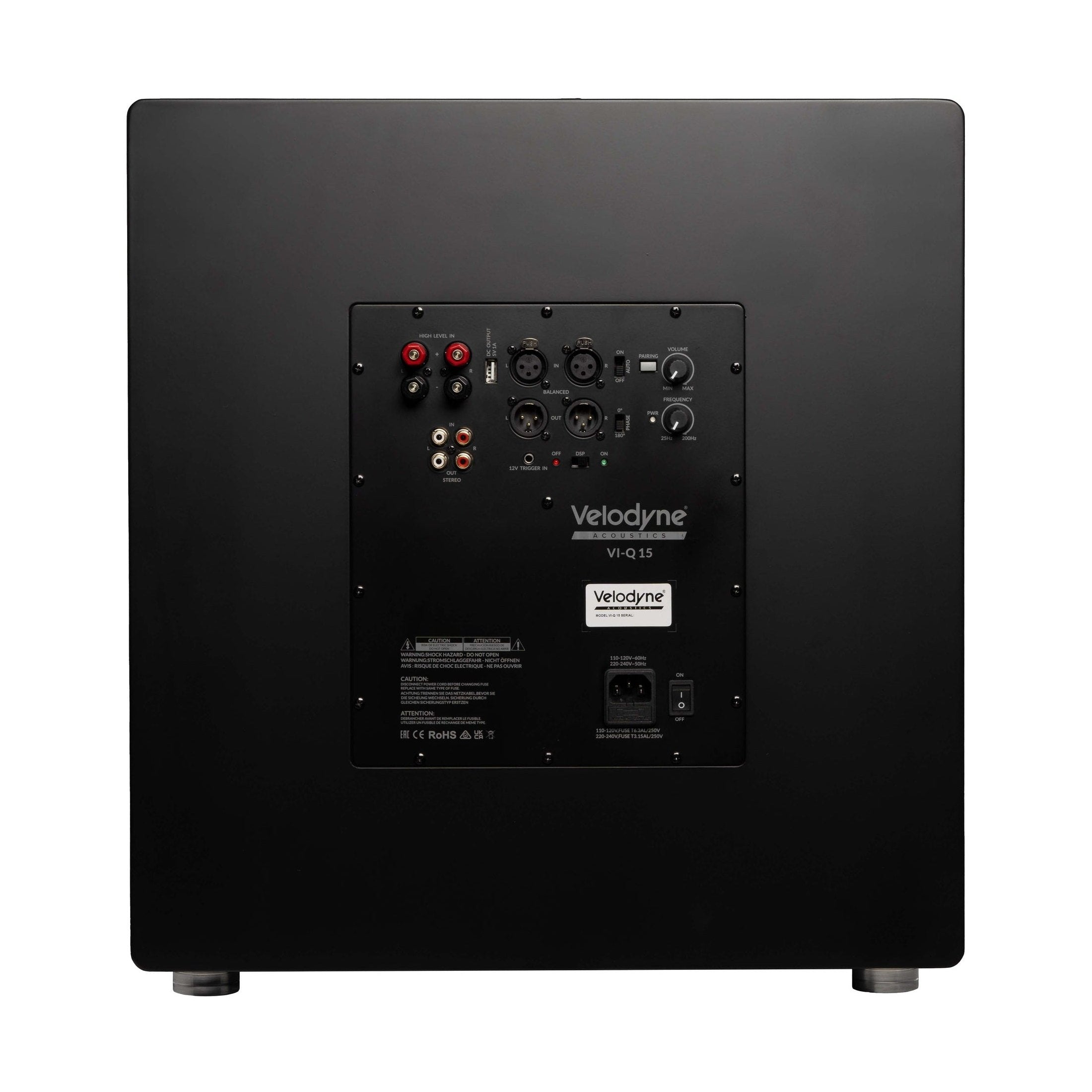

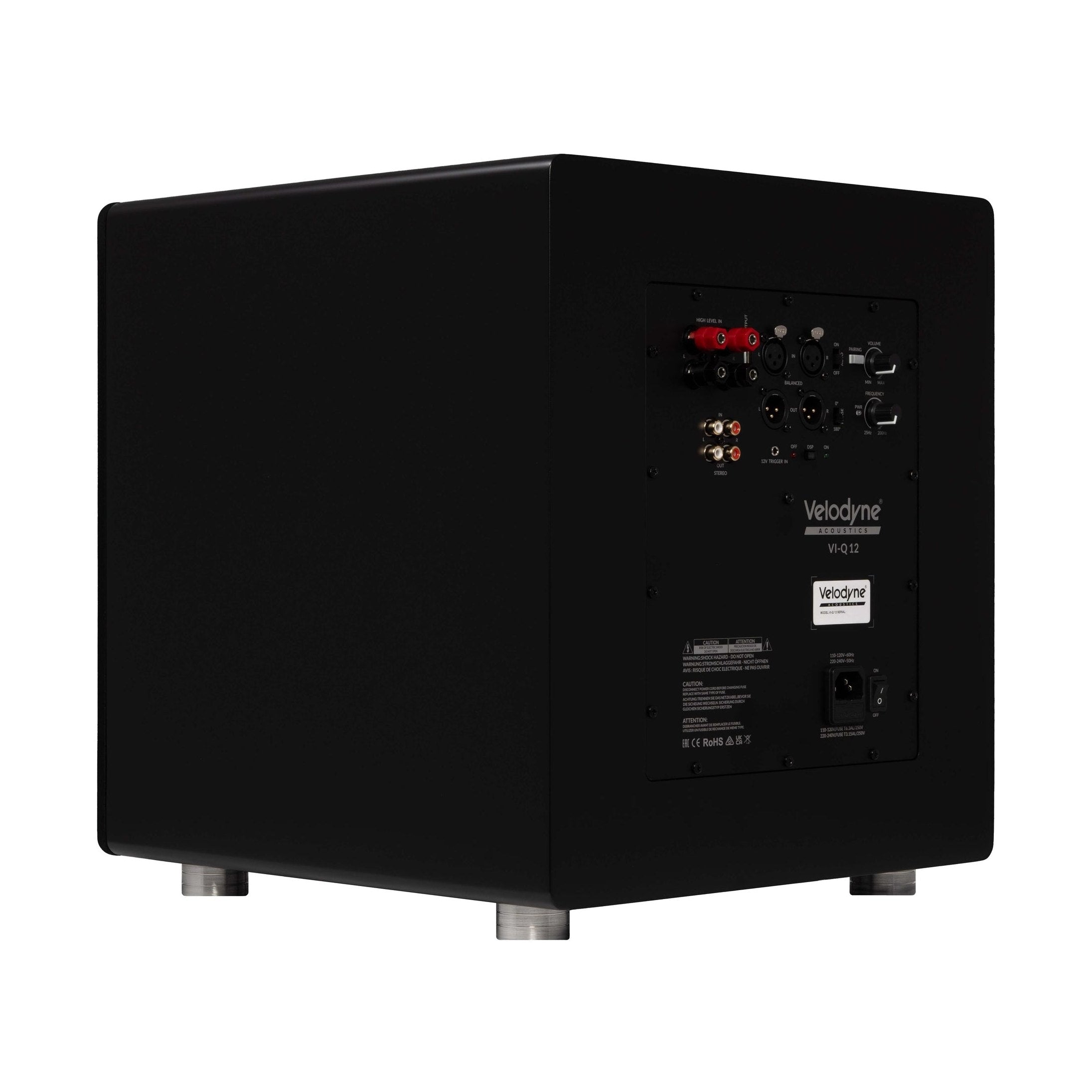

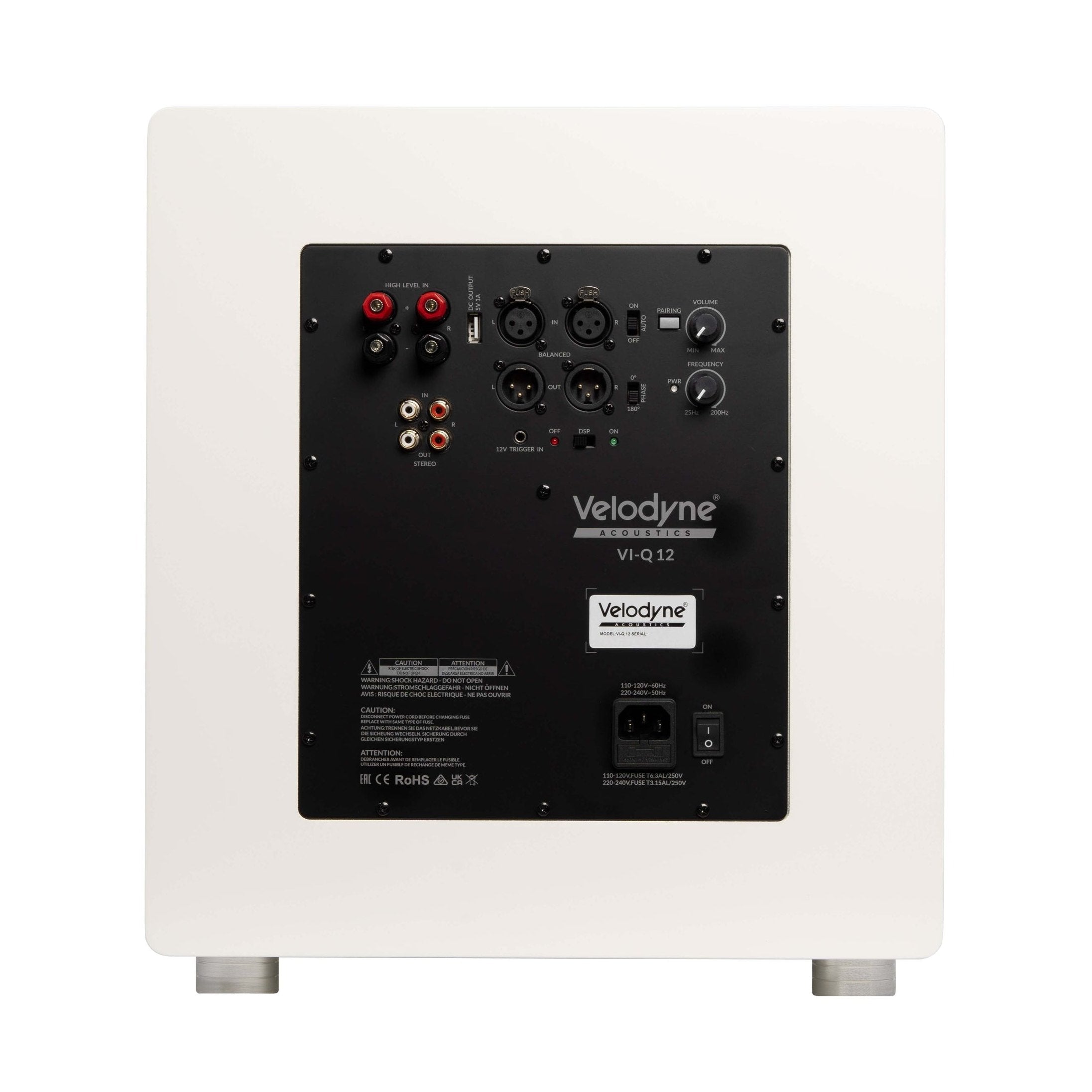

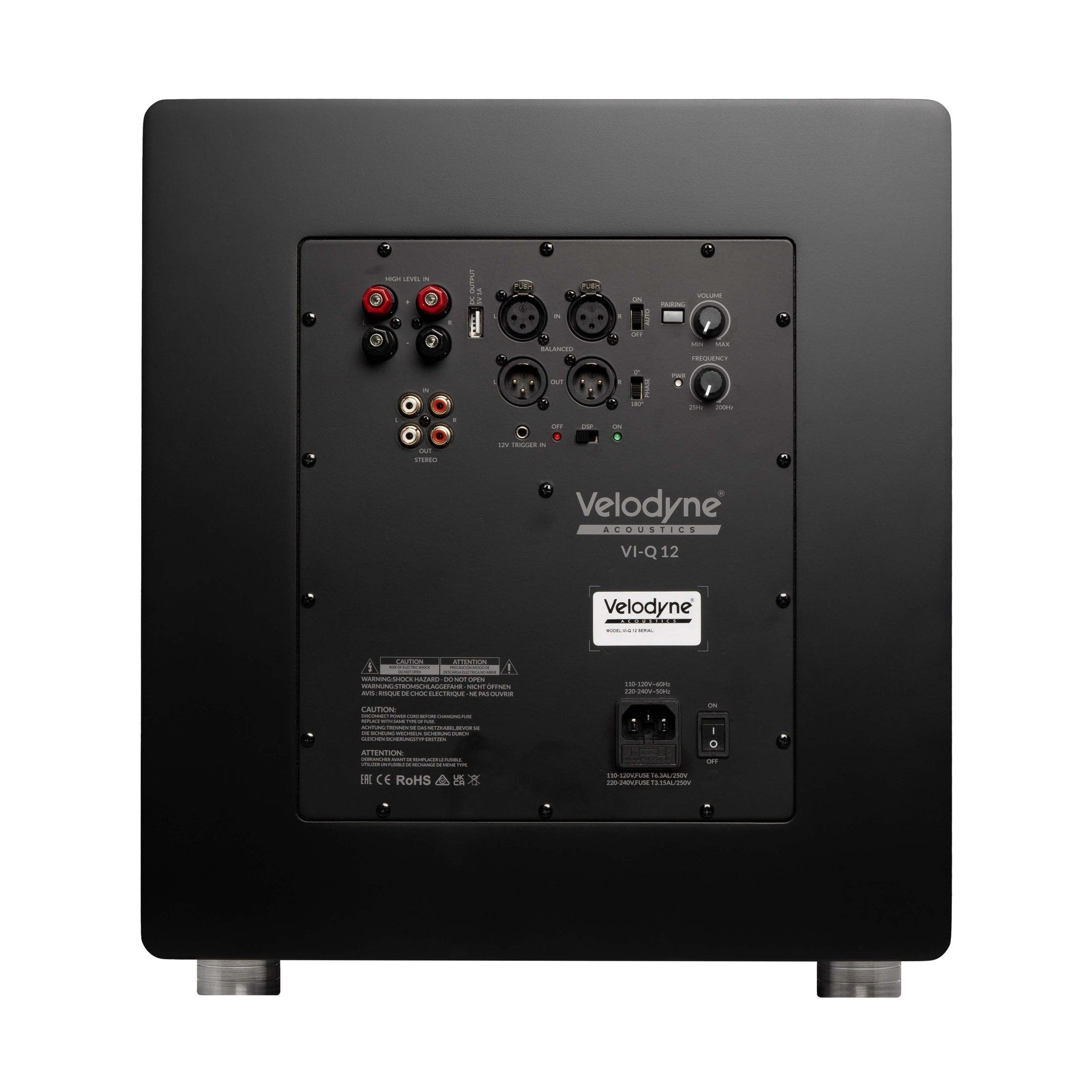

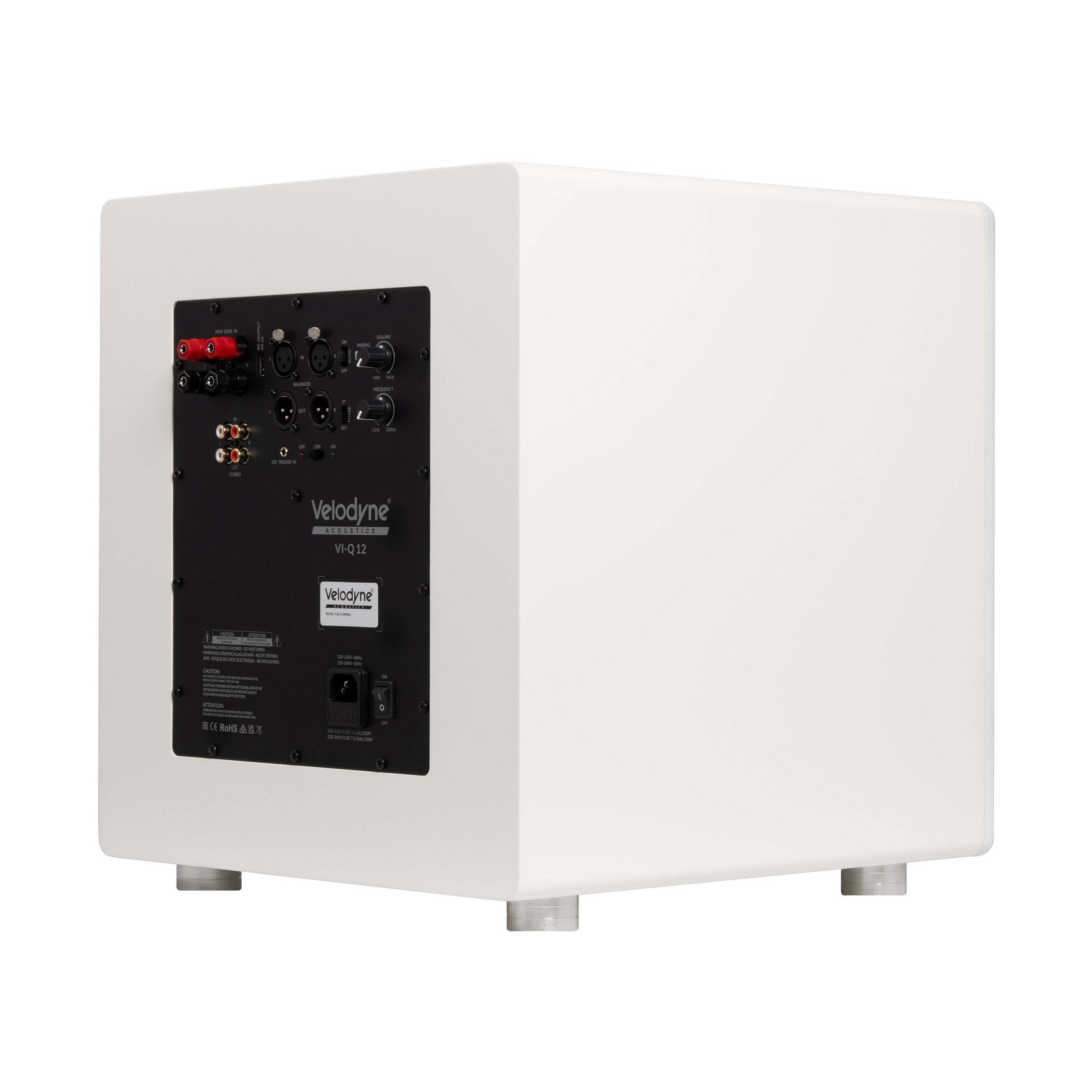

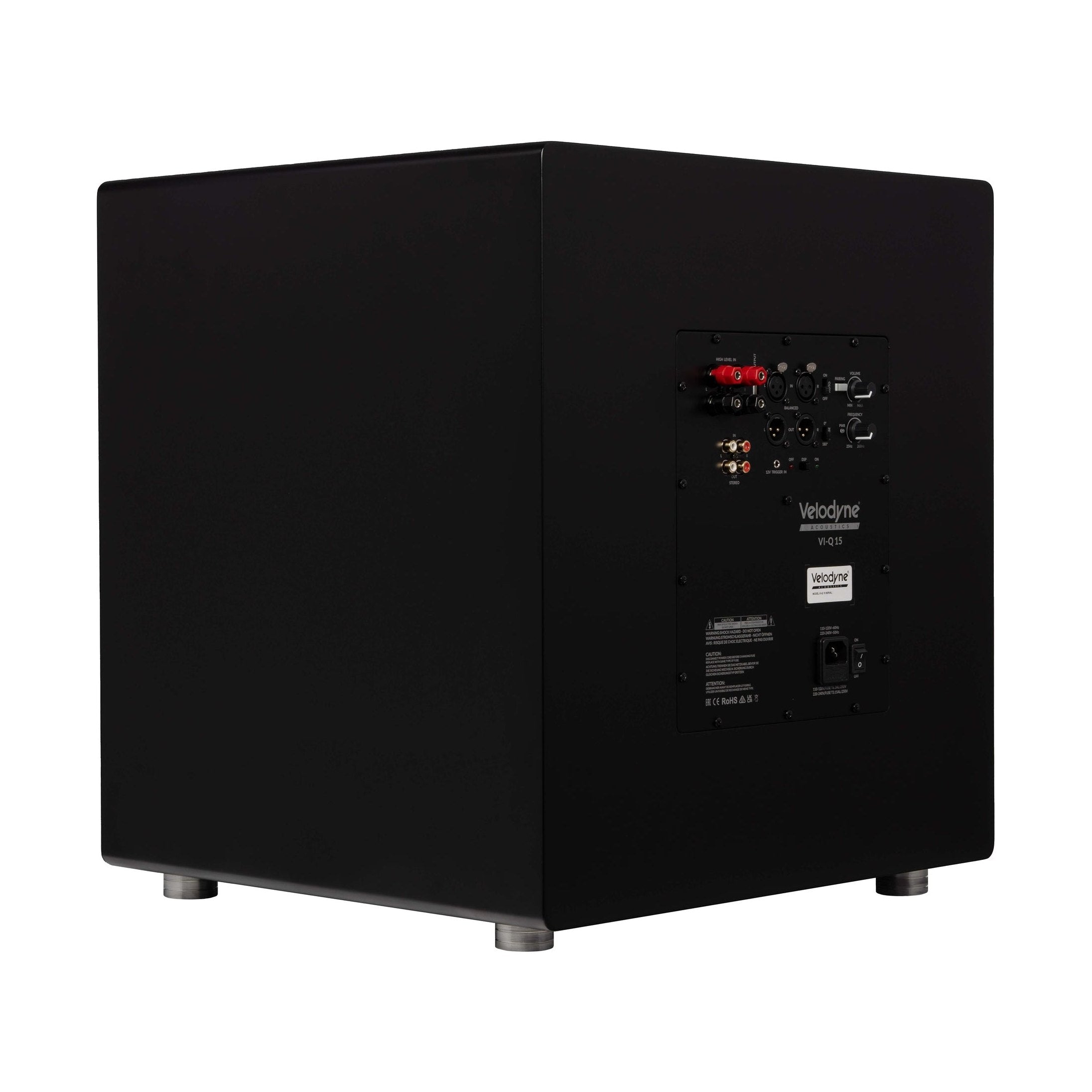

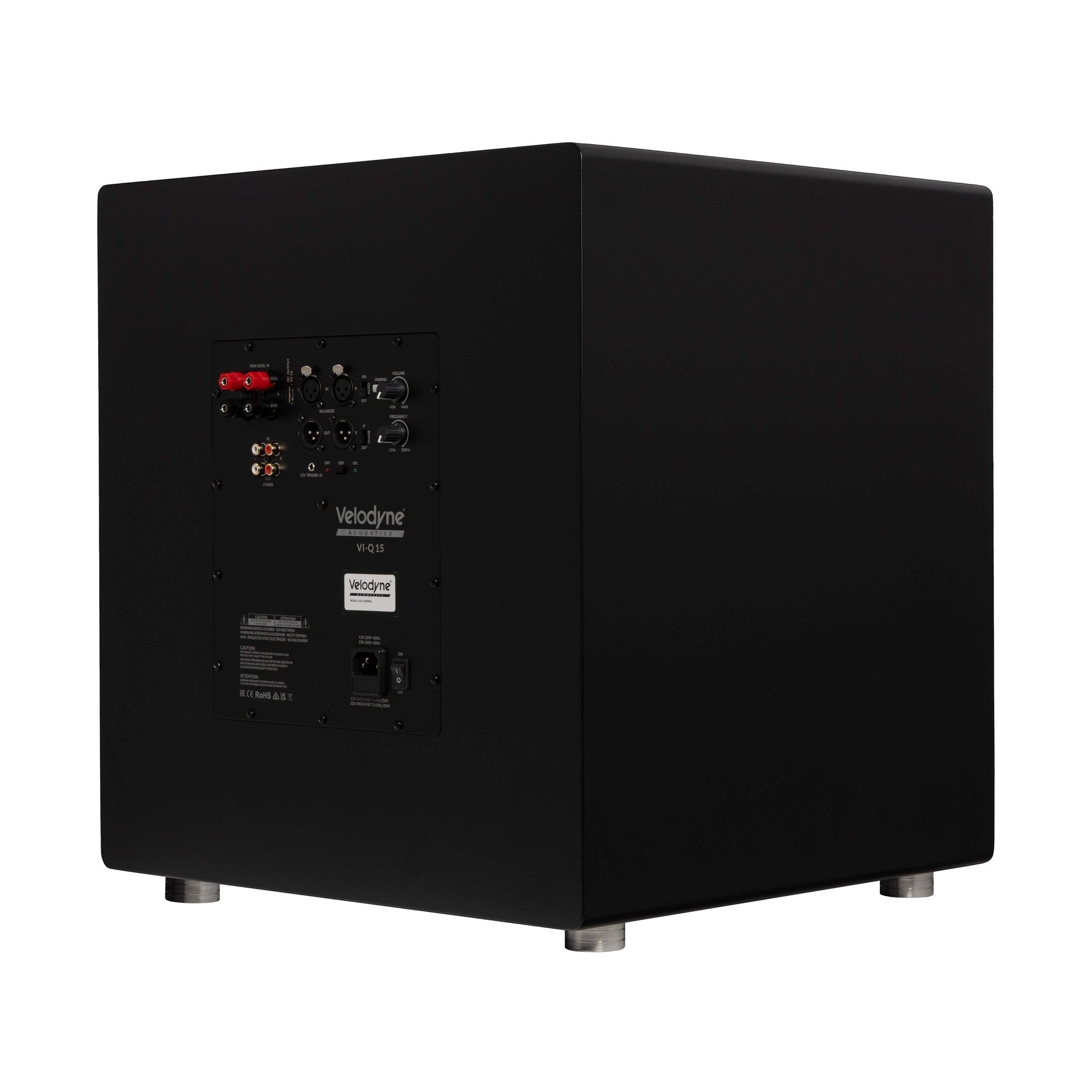

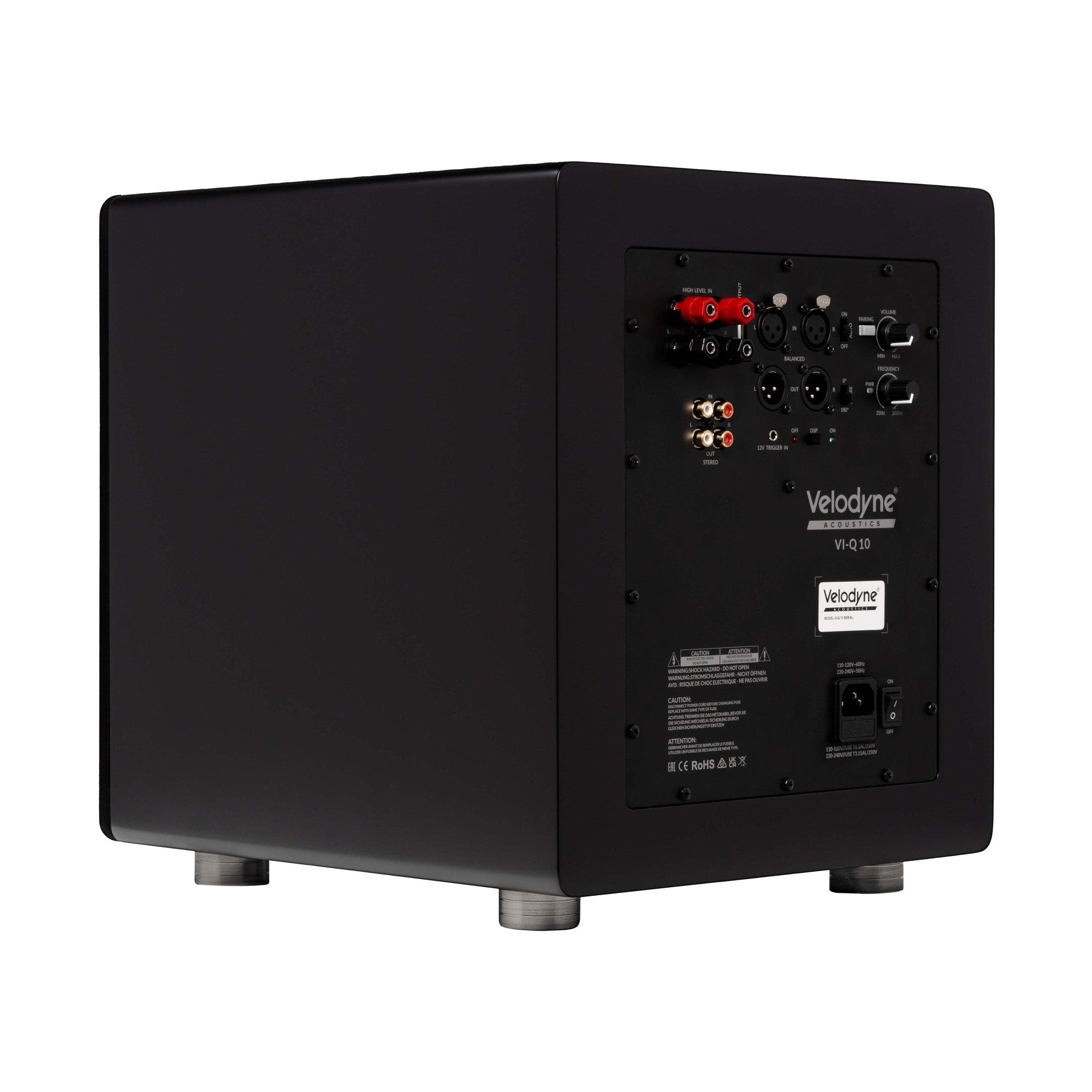

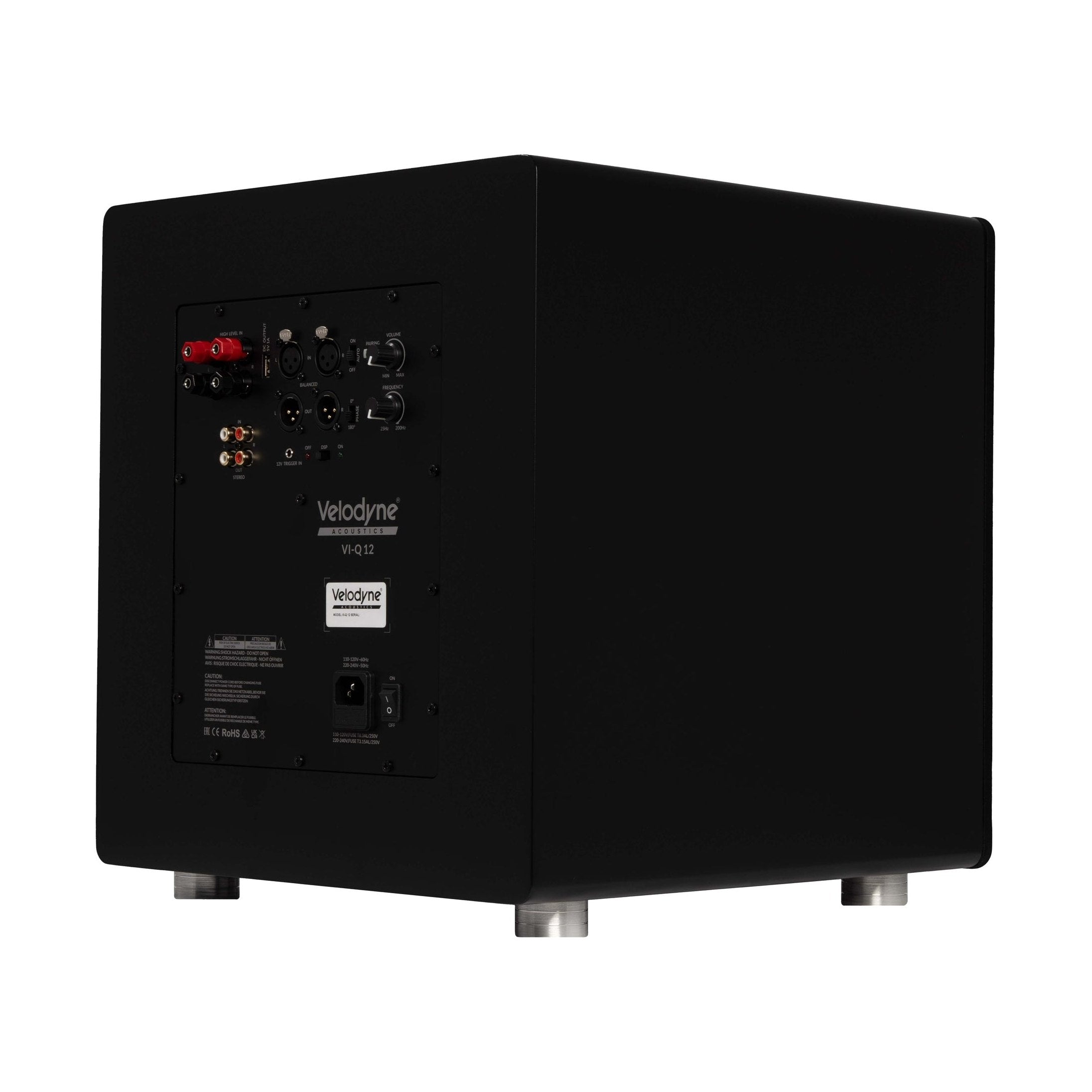

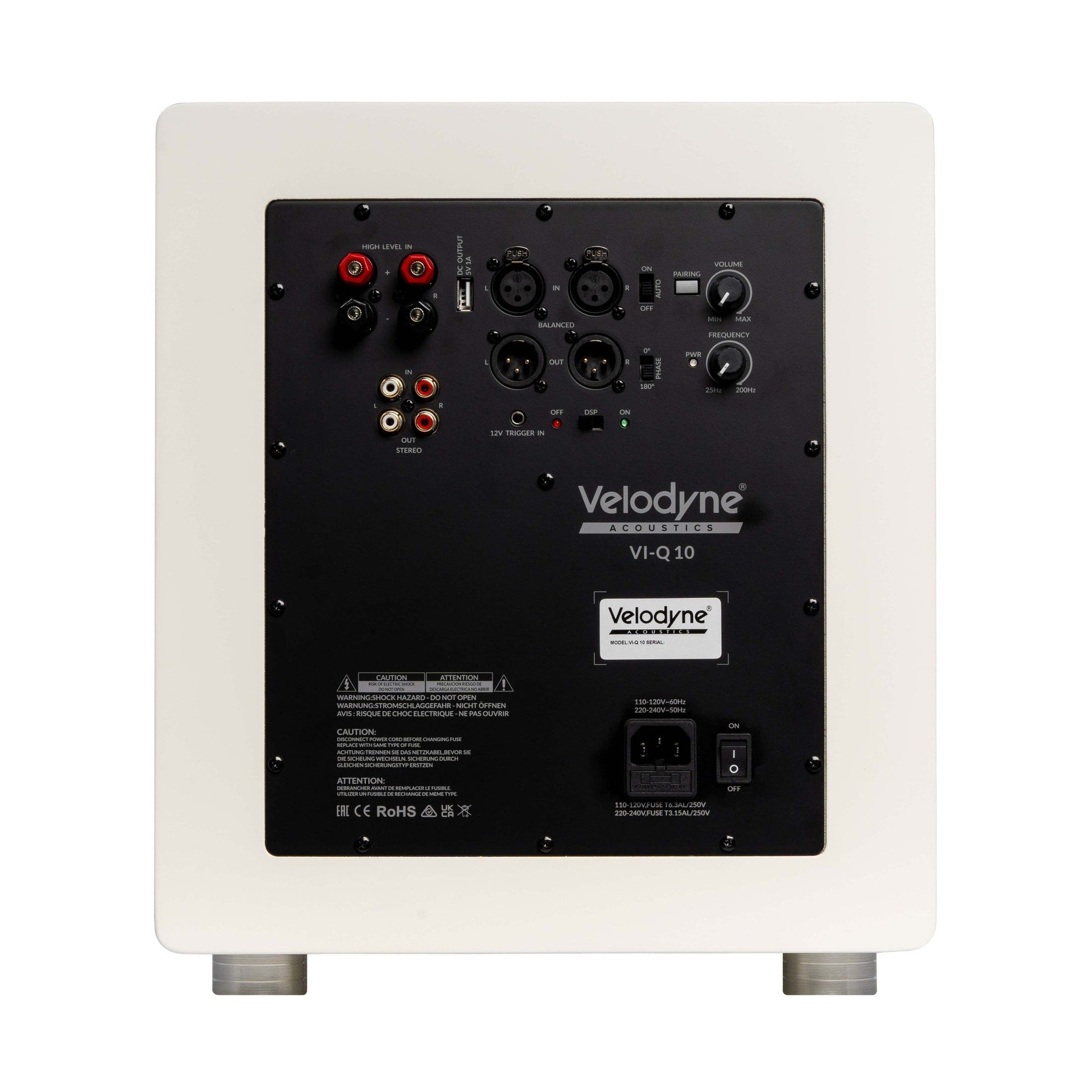

| Input | Gold plated Stereo/LFE RCA, Nickel plated XLR and High level in |
| Output | Gold plated Stereo/LFE RCA, Nickel plated XLR |
| Power Selector | Off / Auto / On |

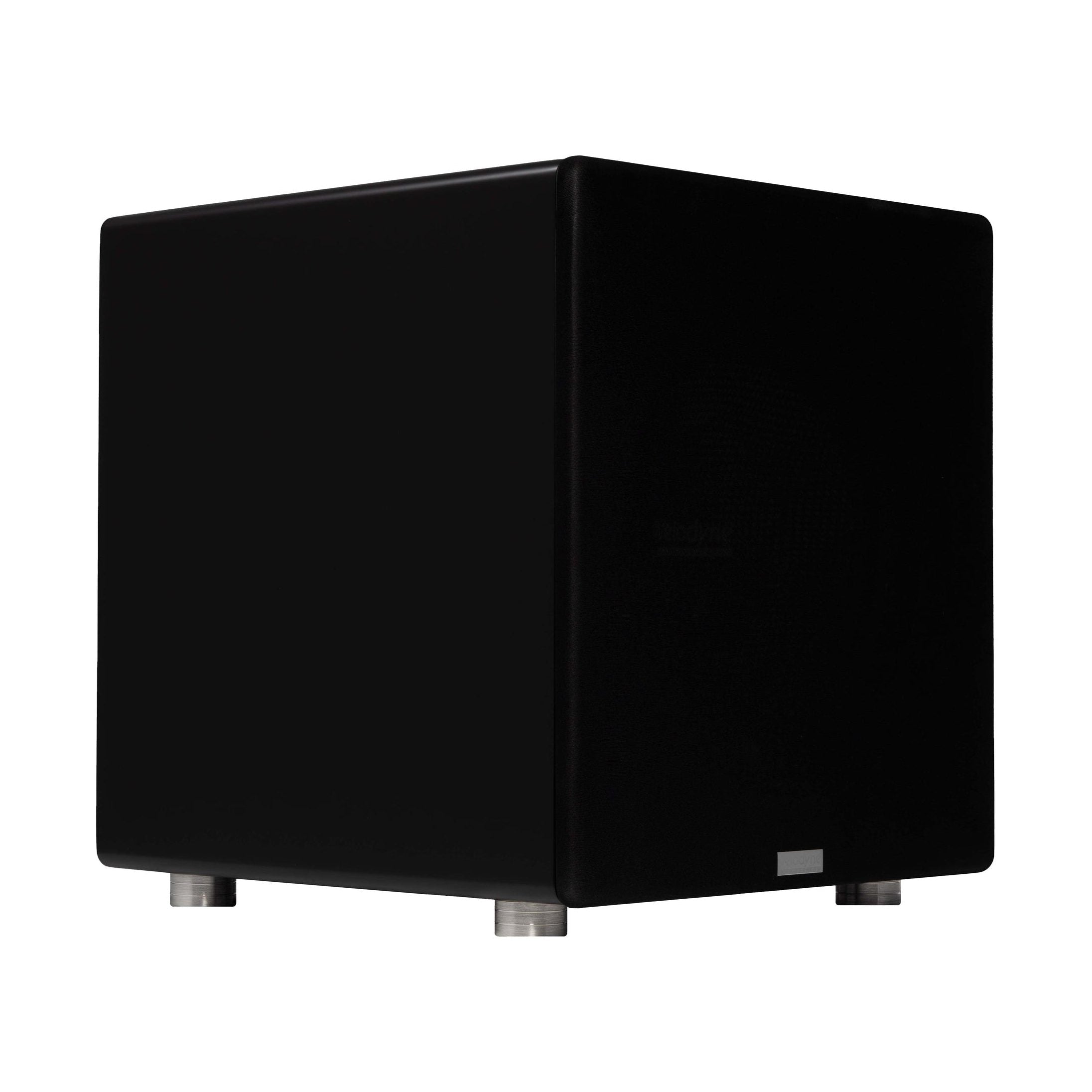

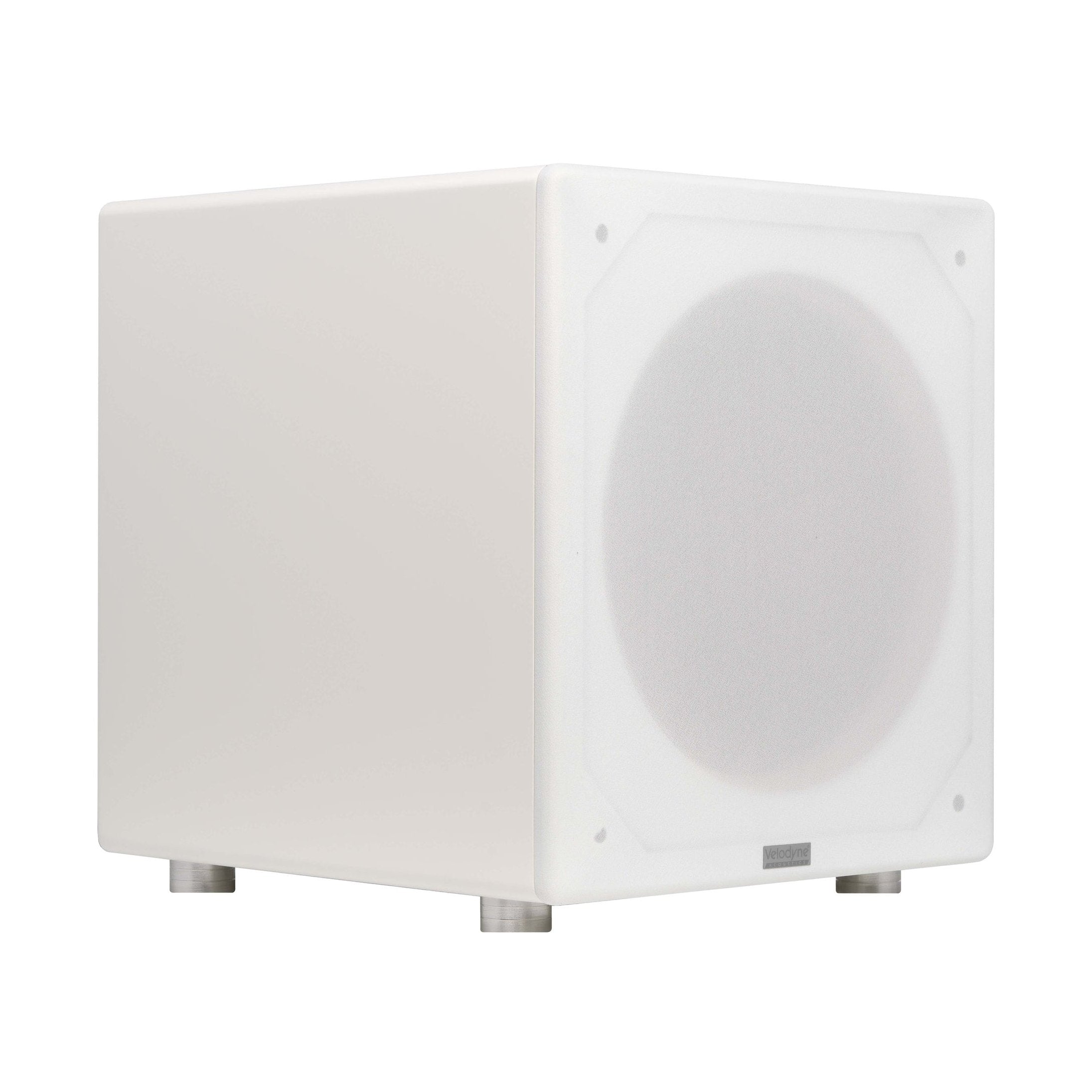

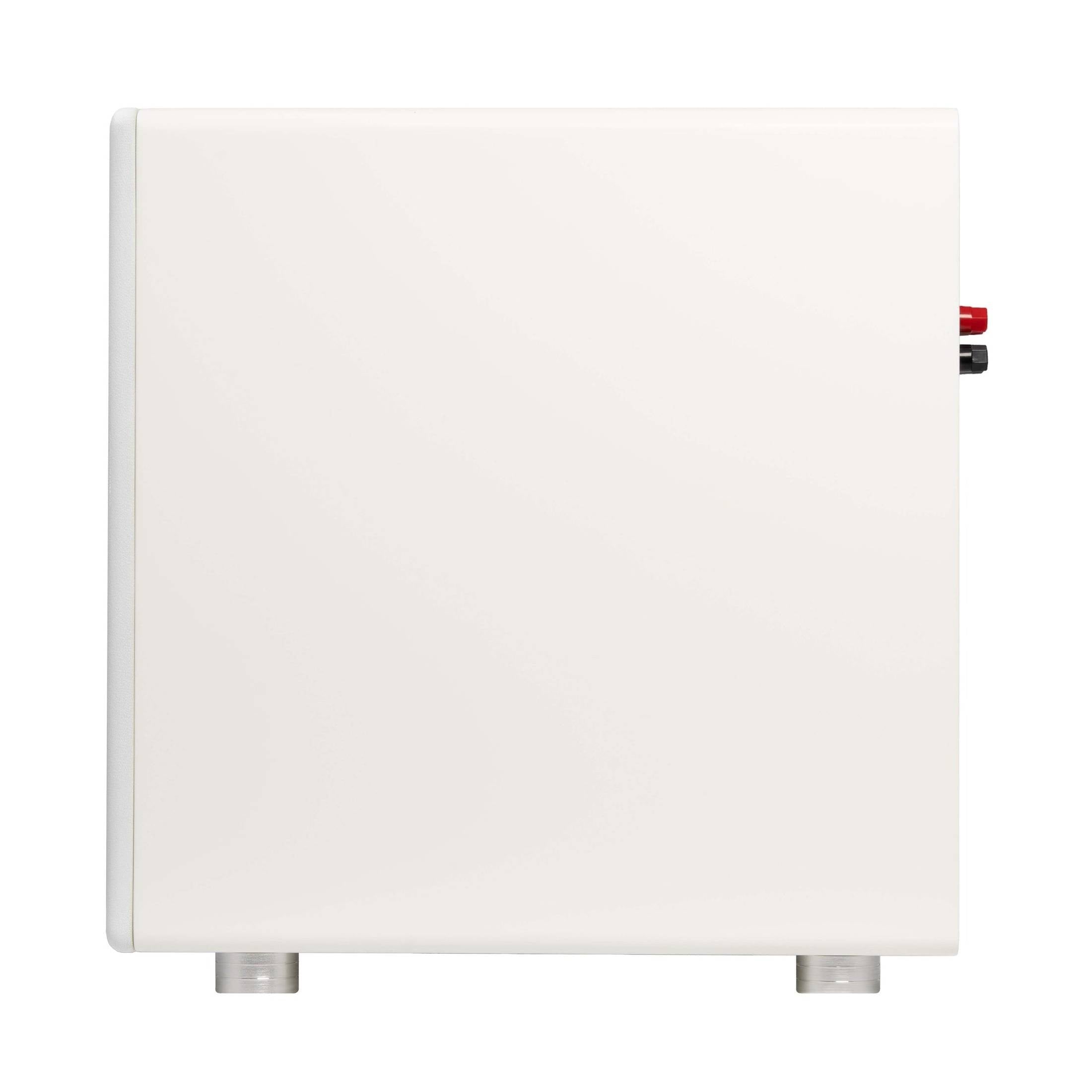

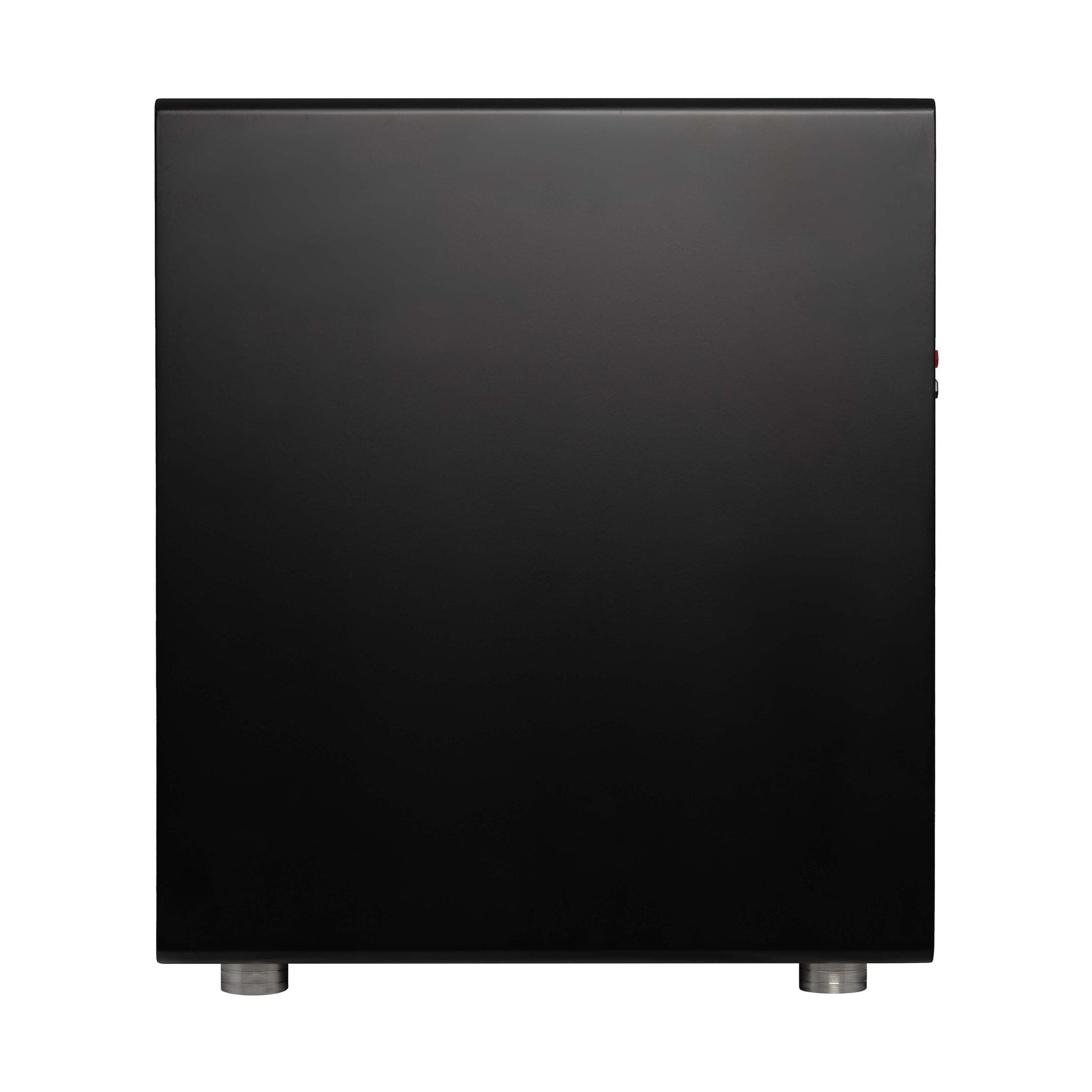

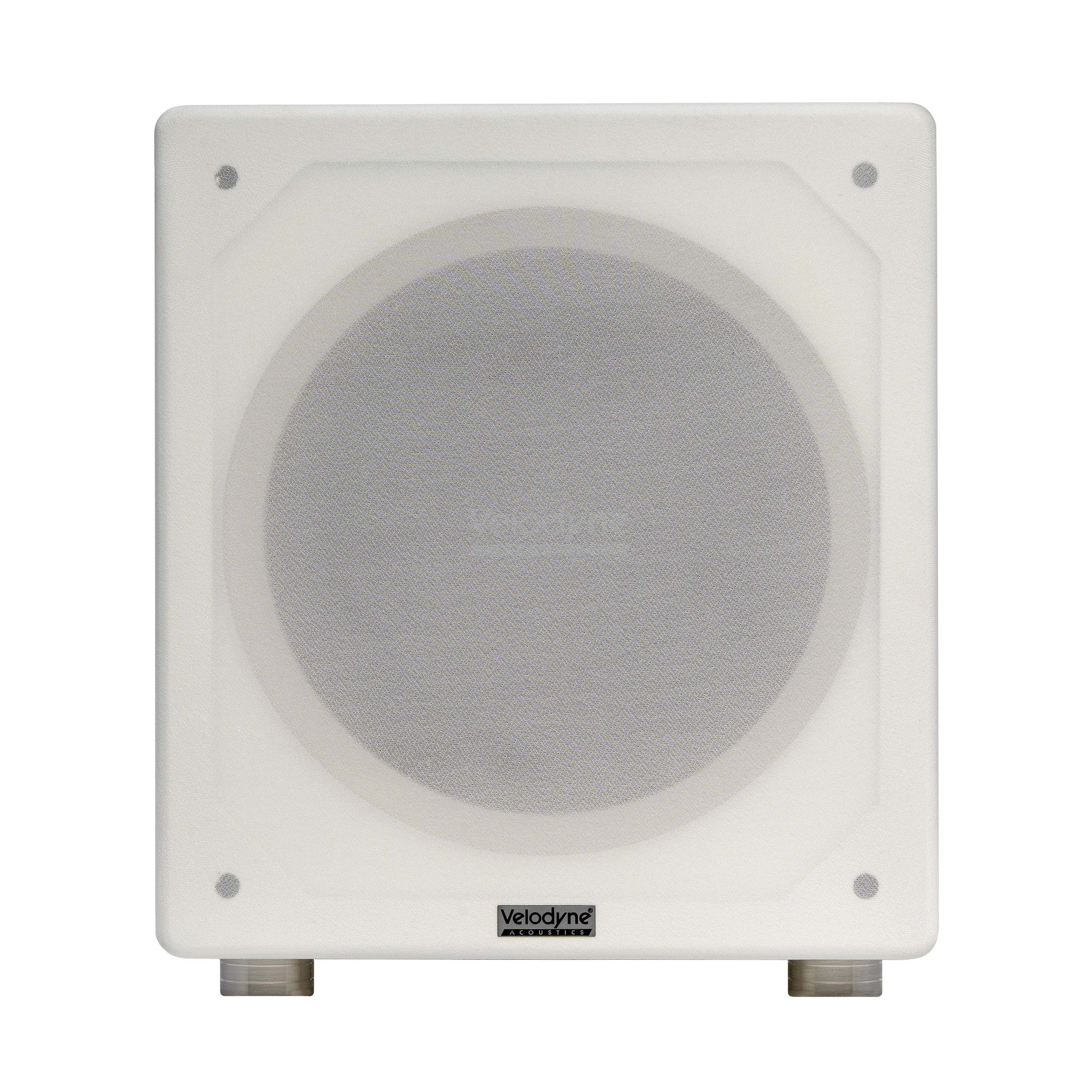

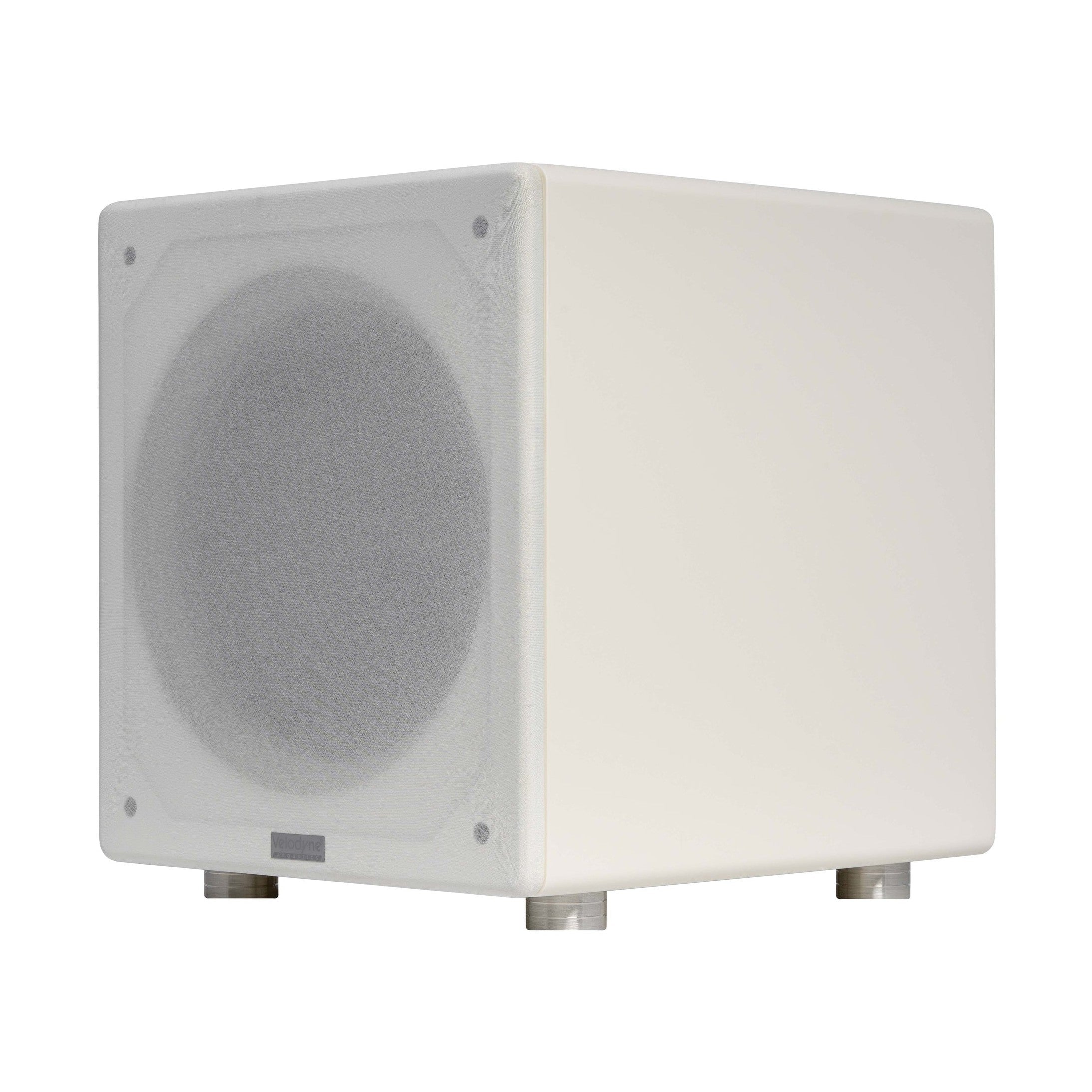

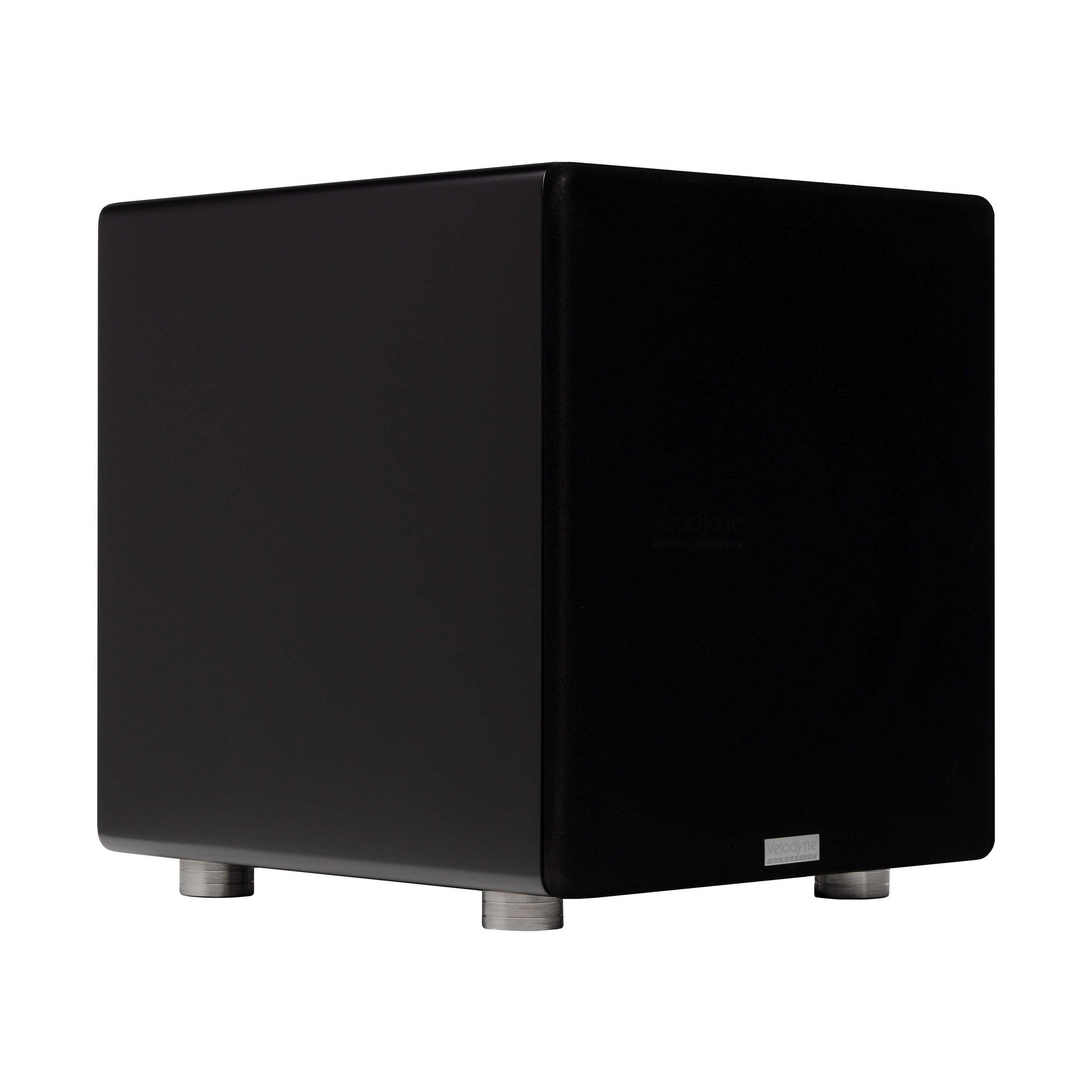

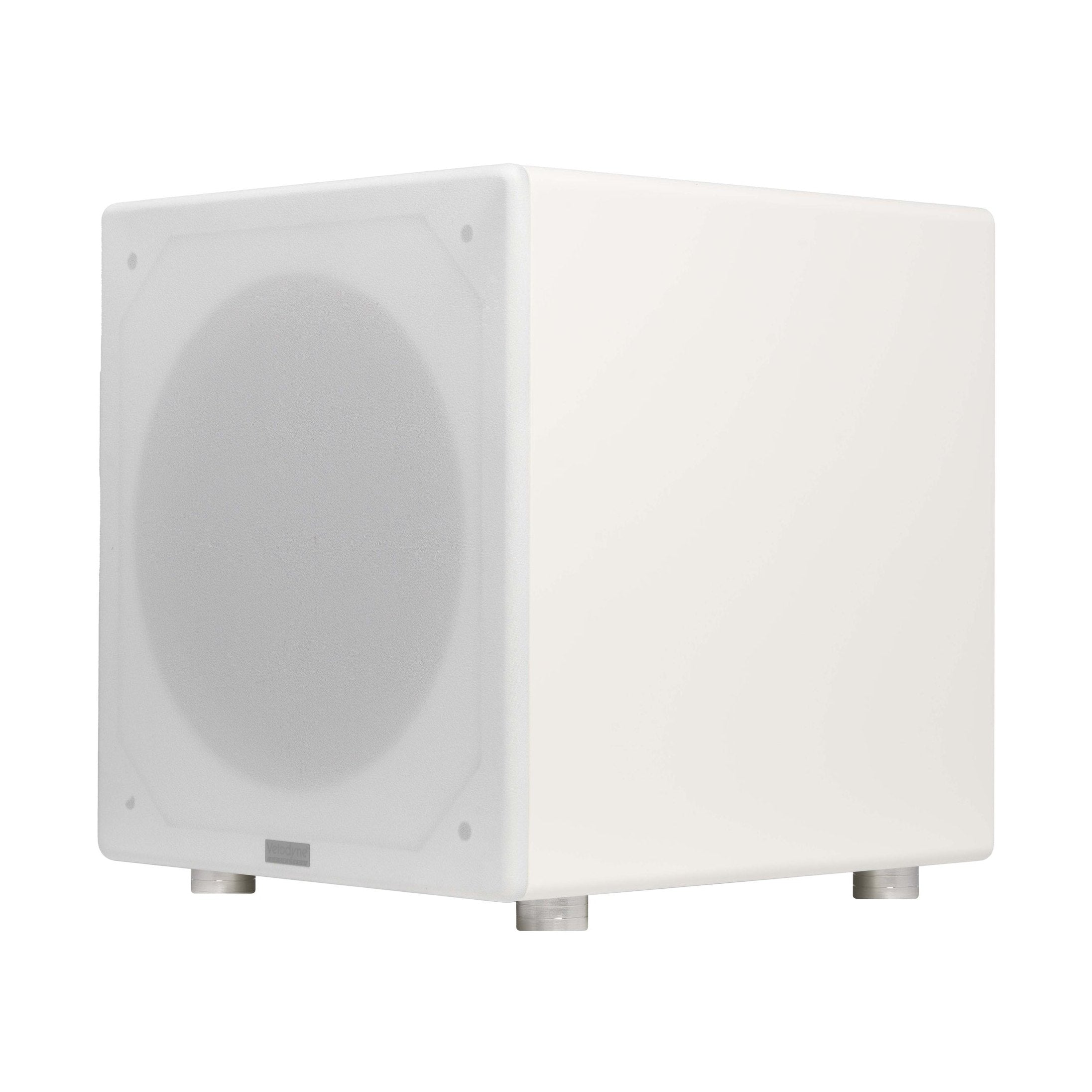

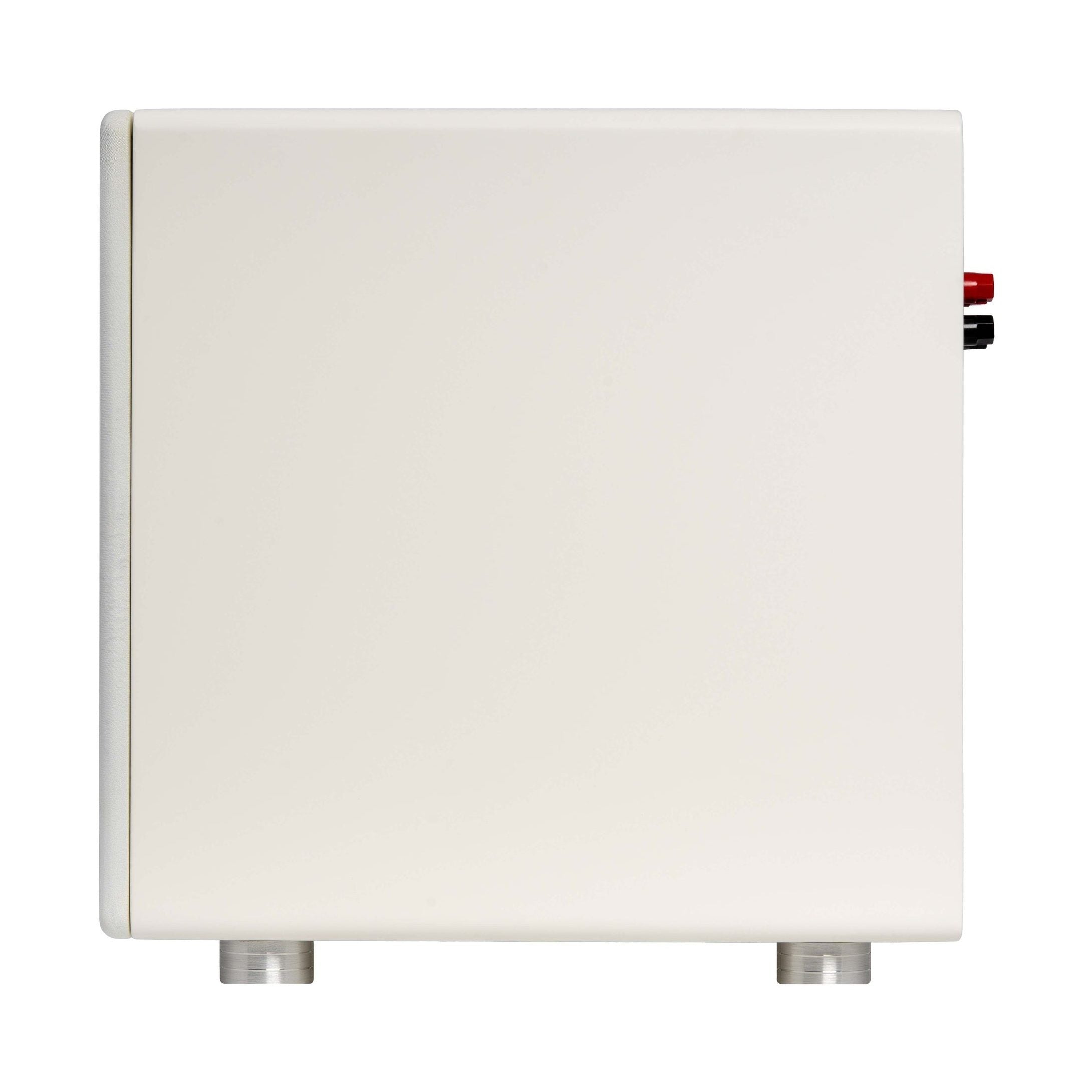

| Finishes | Flat mat black / Flat mat white |
| Dimensions (W/H/D) (includes feet and connectors) | 38cm x 40cm x 32 cm |
| Weight (approx) | 21 kg |
| Shipping Weight (approx) | 24 kg |
