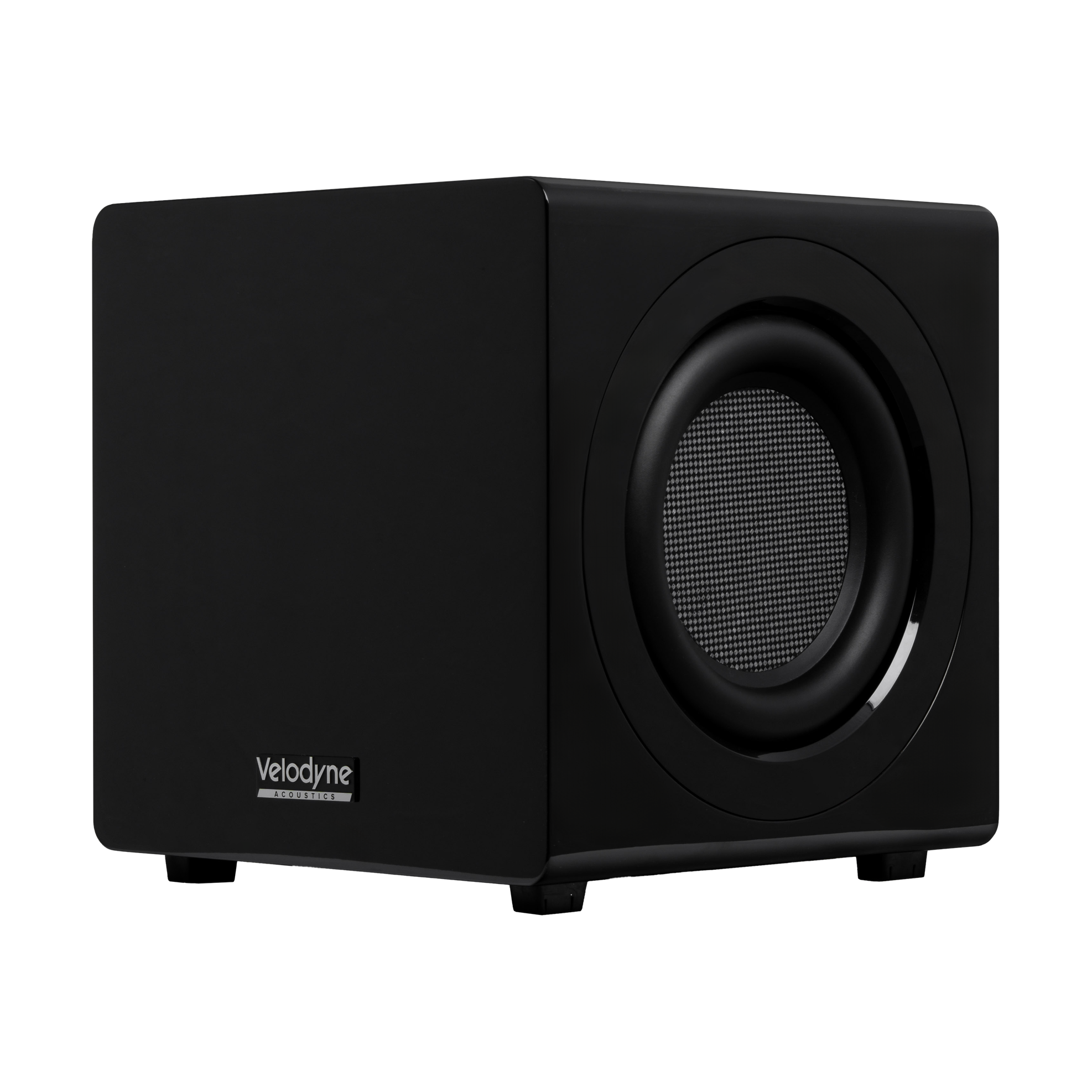

Velodyne Acoustics MiniVee X Subwoofer-8
Velodyne Acoustics MiniVee X Subwoofer-9

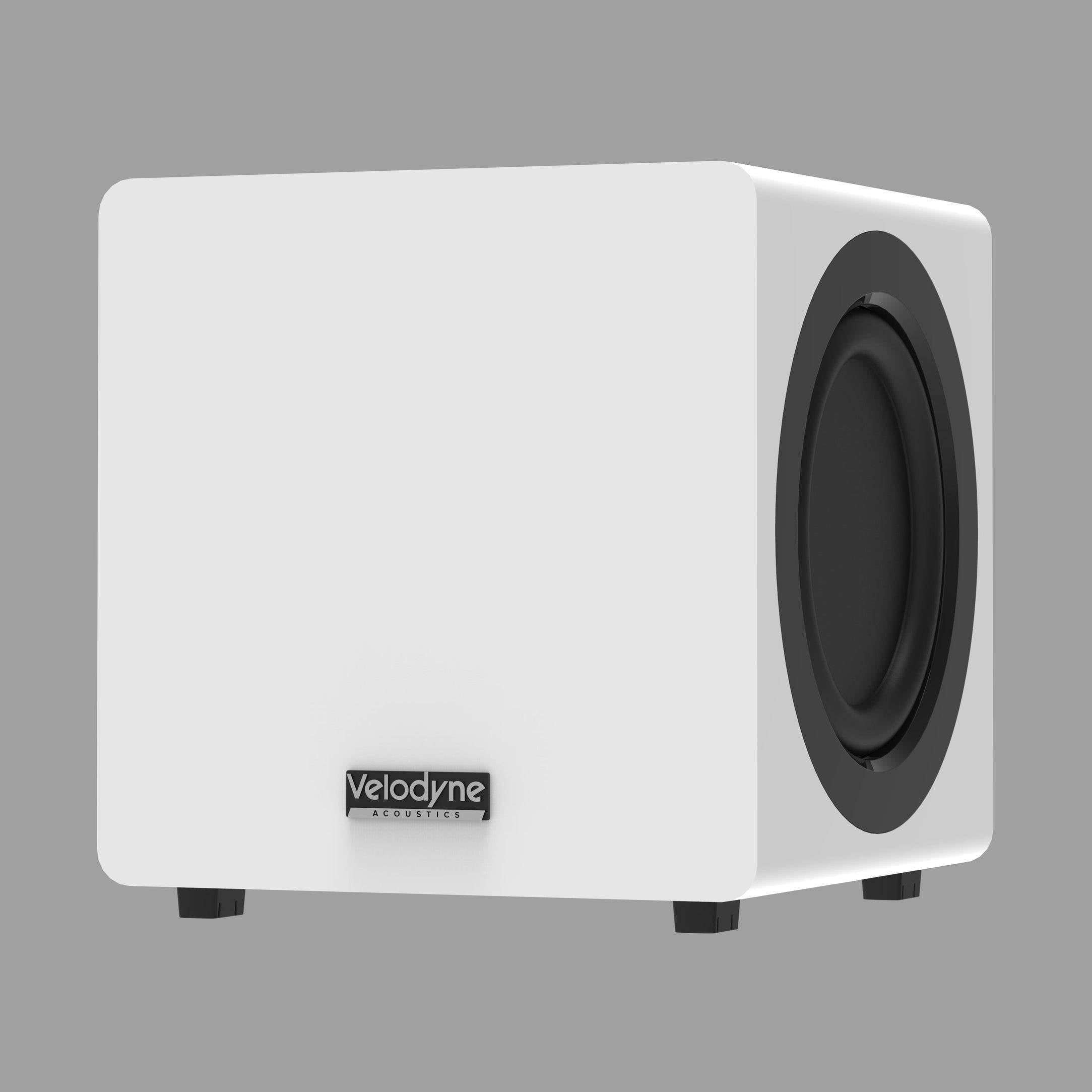

Velodyne Acoustics MiniVee X Subwoofer-10
Velodyne Acoustics MiniVee X Subwoofer-11

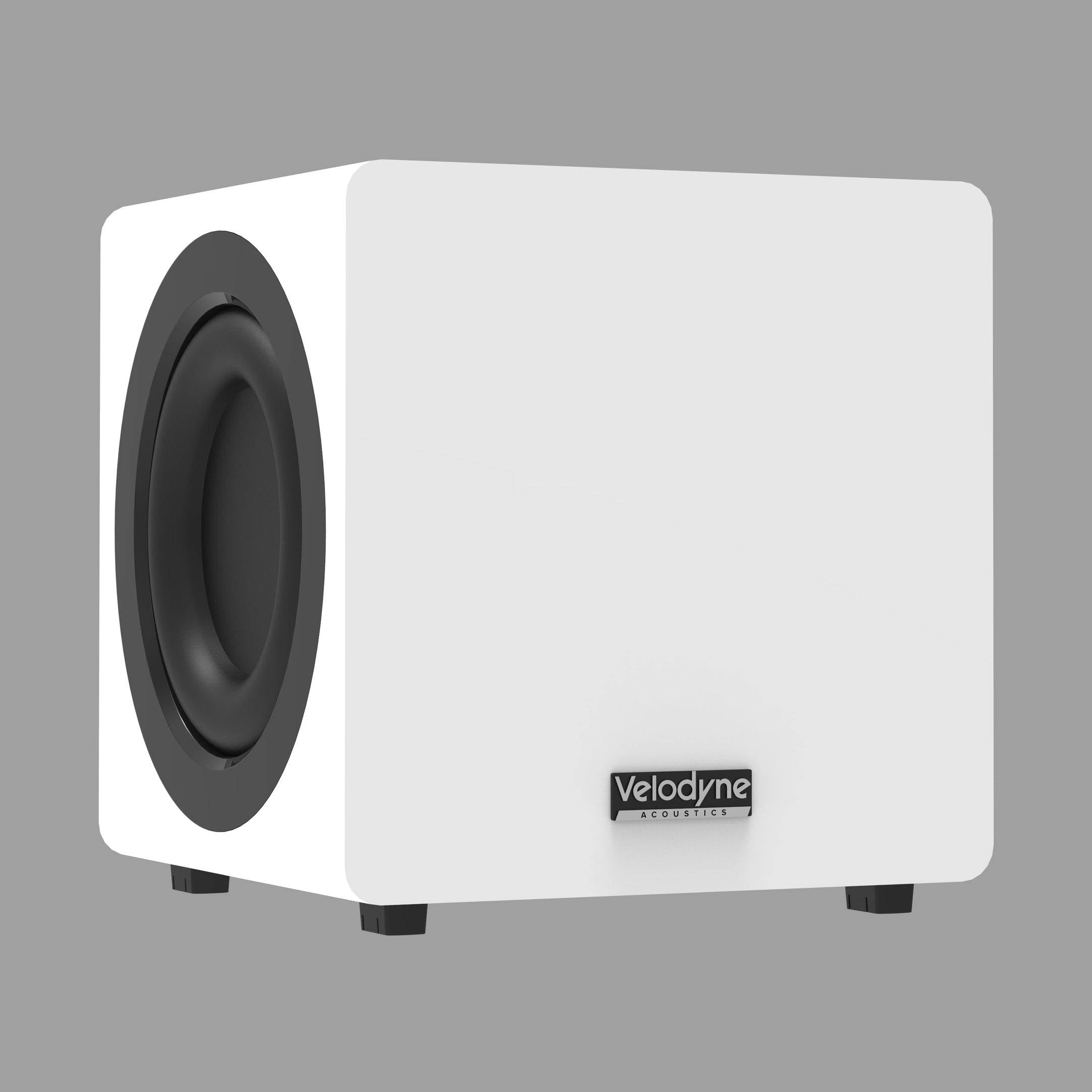

Velodyne Acoustics MiniVee X Subwoofer-12
Description

RRP: $2100 - Black and White Gloss;

$3200 - Clear Acrylic

Ultra-compact powerhouse with app control and automatic room correction

The very compact, closed cabinet of the MiniVee X offers unbeatable precision and is free from disruptive resonances thanks to internal bracing. The configuration of an active and a passive 8″ driver also ensures minimal cabinet movement and a particularly precise, powerful bass. Thanks to the Velodyne Acoustics Auto EQ app and included microphone, room optimization is effortless.

 Specifications Images Downloads

Features

  • Convenient adjustment and configuration with the Velodyne Acoustics Auto EQ app (available on the Apple Store and Google Play Store): In combination with the provided microphone, calibration and fully automatic room optimization is absolutely hassle-free. Numerous settings are also available to individually tailor the sound to your own preferences.
  • Ultra-compact MDF cabinet with internal bracing to eliminate disruptive resonances.
  • Powerful up to 800 W maximum output with Class D amplification; oversized ferrite magnets
  • Perfect connections for everyone: professional XLR connections, RCA input sockets for the left and right channels, and speaker terminals

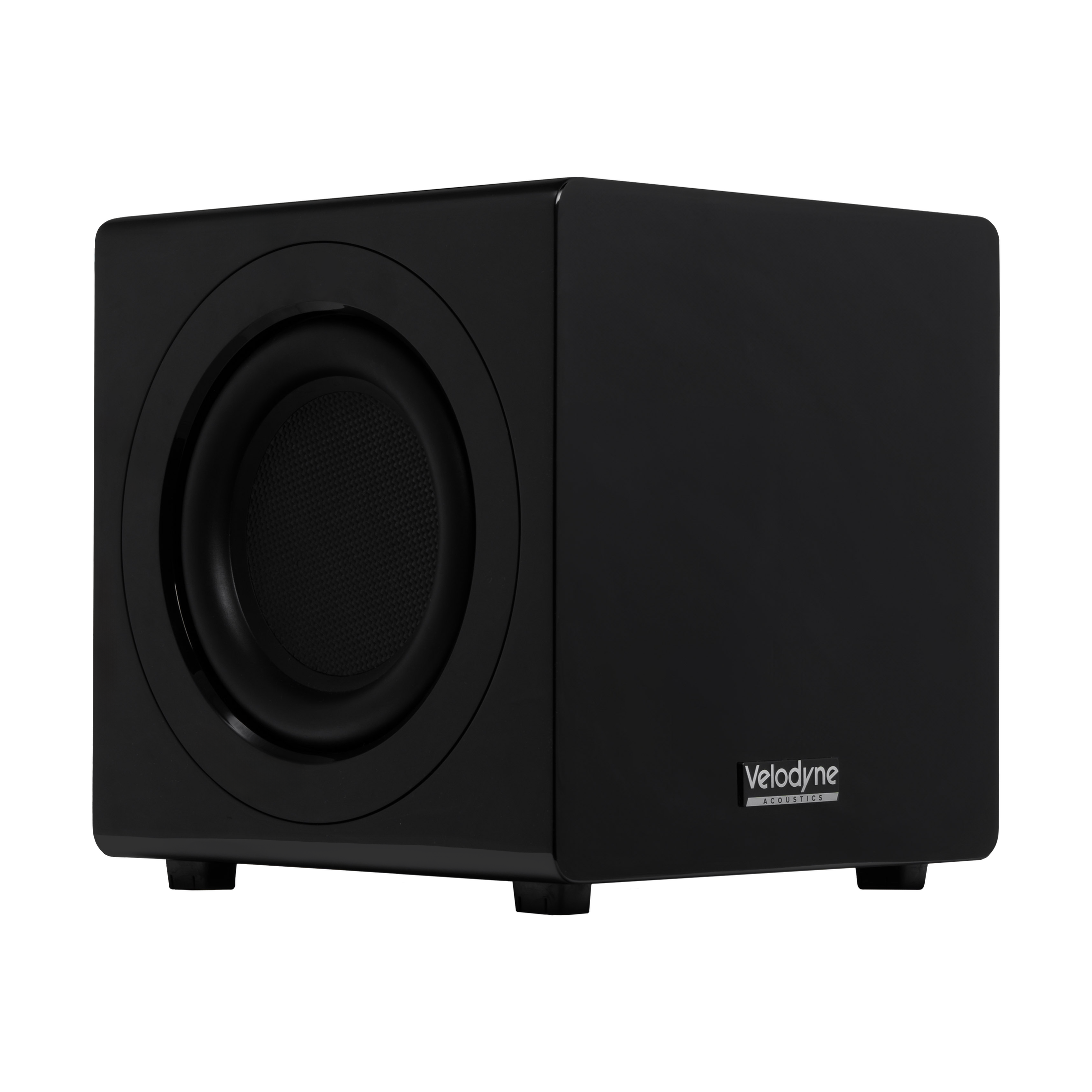

The Velodyne Acoustics MiniVee X

State-of-the-art technologies in a high-gloss black cabinet.
High performance in a compact design with comprehensive app control.





Driver All-new proprietary 8” long-throw driver with high-precision tuned overhung motor configuration with 8” passive radiator
Amplifier Class D 350W RMS @ 0,5% THD, 600 W @ 2% THD, 800 W maximal
Frequency Response: Overall
Frequency Response: (± 3 dB)		 18 – 300 Hz
32 – 180 Hz
Low Pass Crossover 30 to 200 Hz low-pass crossover with a 12 dB/octave slope
Phase 0 to 180 degrees
Cabinet Design High-gloss MDF
Magnet Structure Dual ferrite magnet motor
Woofer All-new proprietary 8” long-throw driver with high-precision tuned overhung motor configuration with 8” passive radiator
Voice Coil 2” diameter Voice Coil with high current 4-layer high-purity copper wire windings

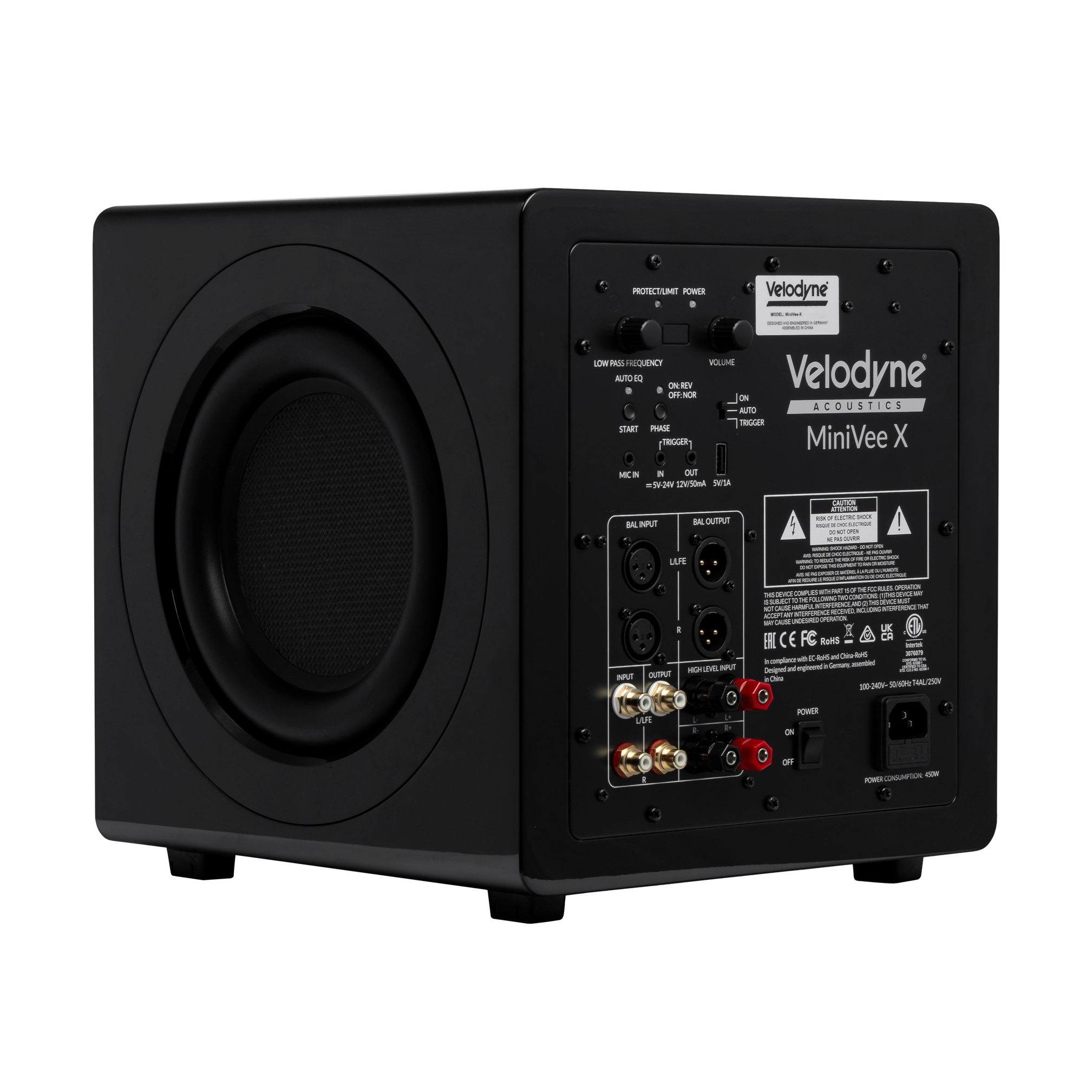

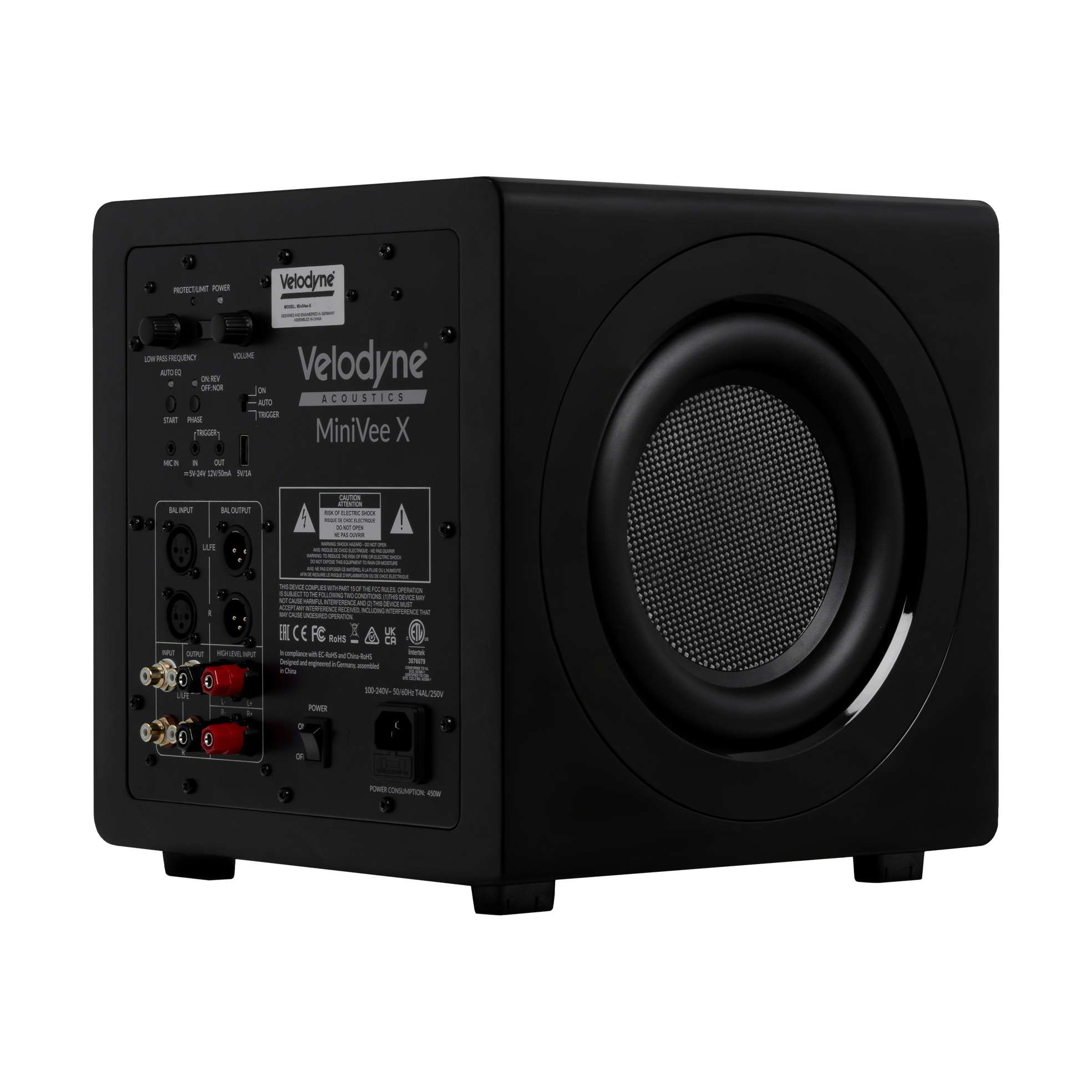

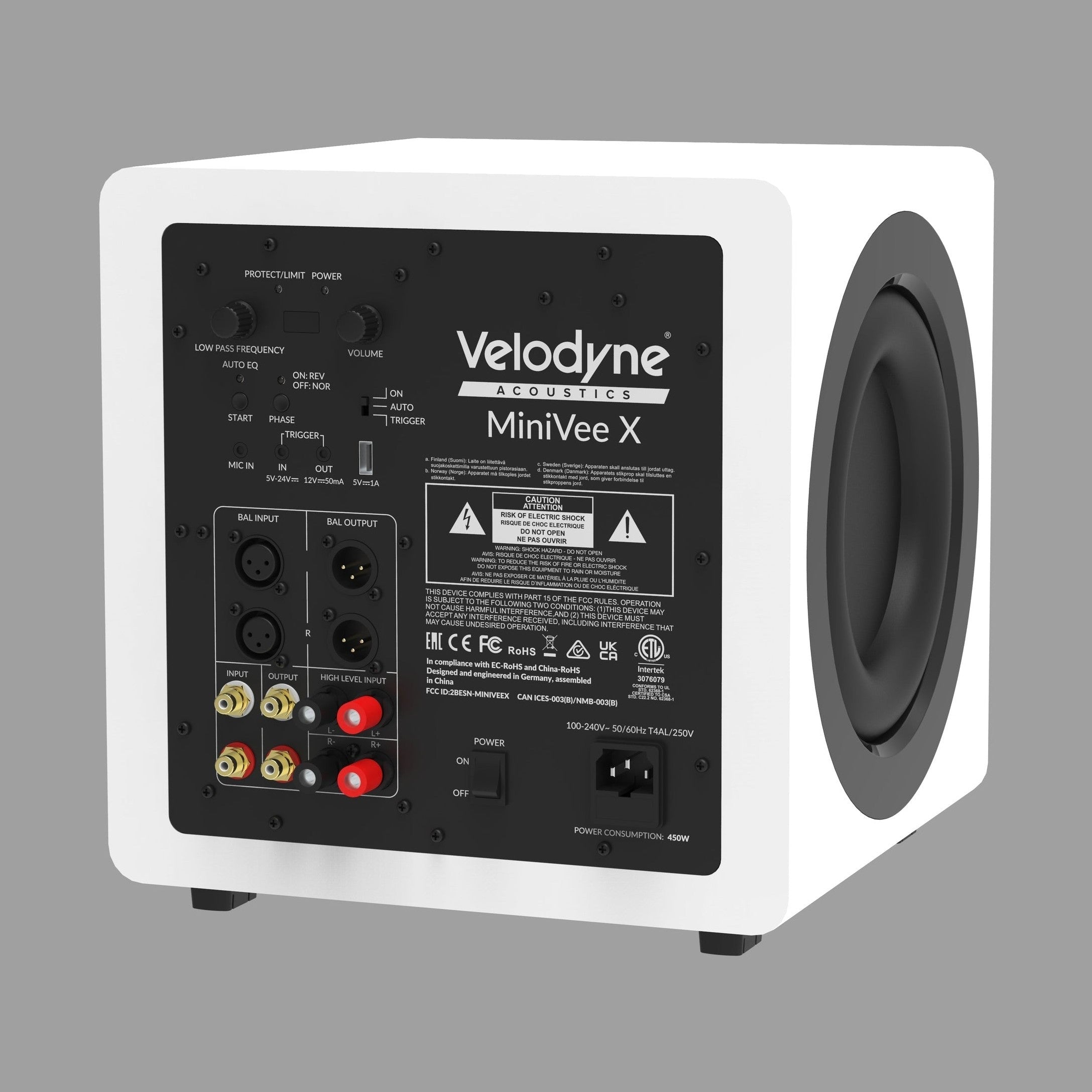

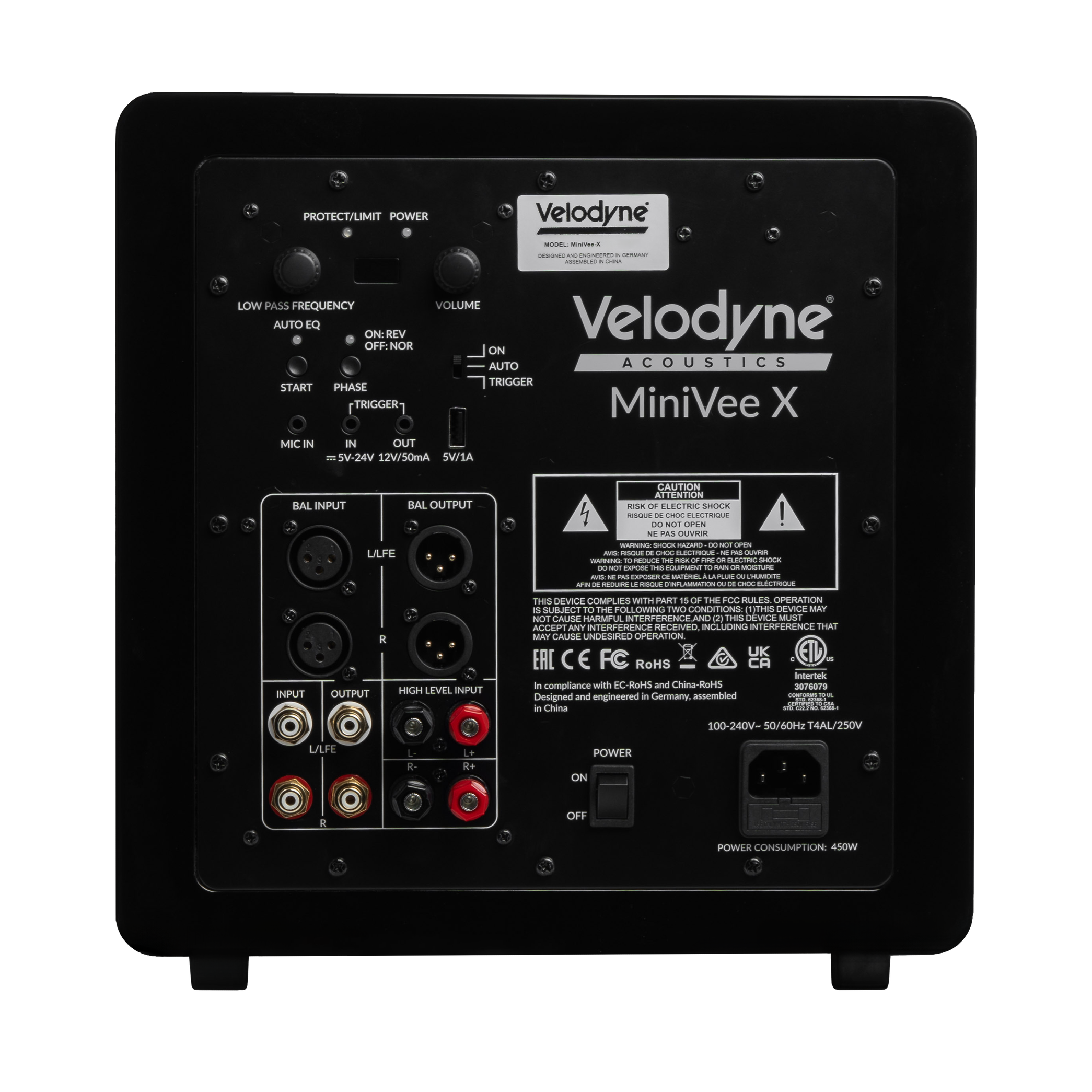

Input Unbalanced Stereo/LFE RCA input, Balanced Stereo/LFE XLR Input, 3,5 mm mini jack 12 V trigger input, 5 V / 1 A Power USB socket to power external Wireless Signal transmitting system Wi-Connect II
Output Unbalanced Stereo/LFE RCA output for easy daisy chain, Balanced Stereo/LFE XLR output for easy daisy chain, 3,5 mm mini jack trigger output with 5 seconds delay
Power Selector Blue (power on) / Red (power standby) mode indicator LED
Finishes Black
Dimensions (H/W/D) (includes feet and connectors) 30 cm x 29 cm x 29 cm
Weight (approx) 15 kg
Shipping Weight (approx) 20 kg

Velodyne Acoustics MiniVee X Subwoofer

$2,100.00 CAD
