The Digital Drive Plus series redefines the term subwoofer. Digitally controlled drivers with impressive performance, almost endless power and the latest calibration algorithms with extensive adjustment options make these subwoofers precision tools of a special class.
Specifications
Images
Downloads
make the Digital Drive Plus Series the essence of everything the Velodyne Acoustics brand is all about. Digitally controlled high-end drivers, extensive customization options and infinite power lead to incorruptible precision down to the lowest frequency basement
They all have one thing in common: maximum precision in all situations.

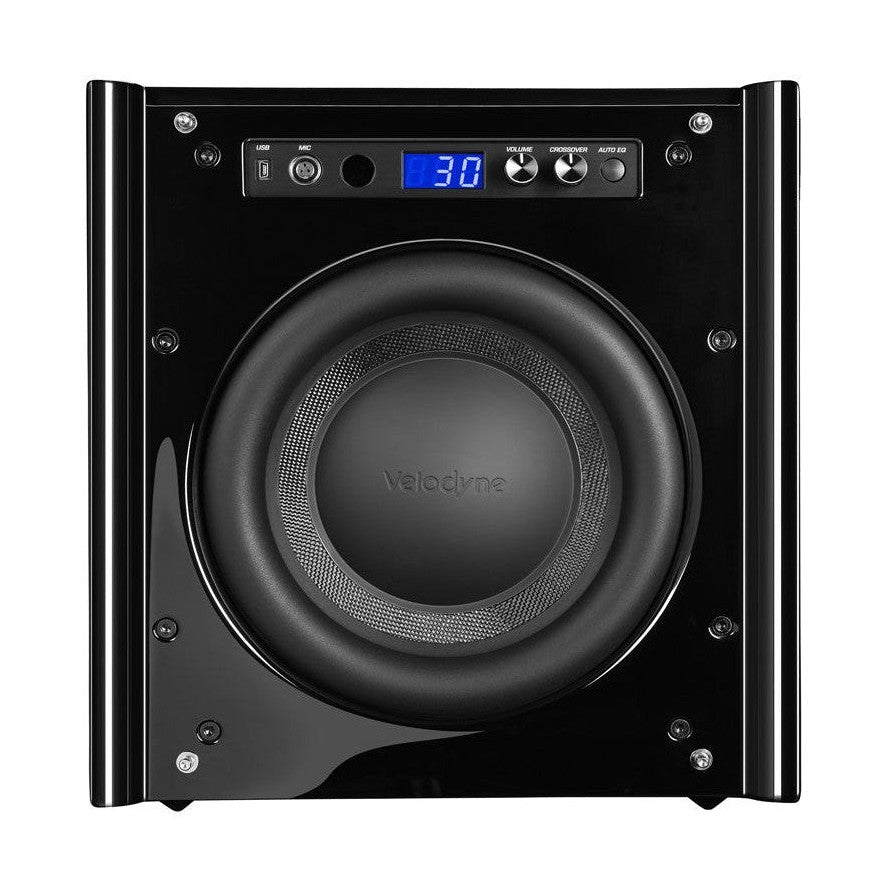

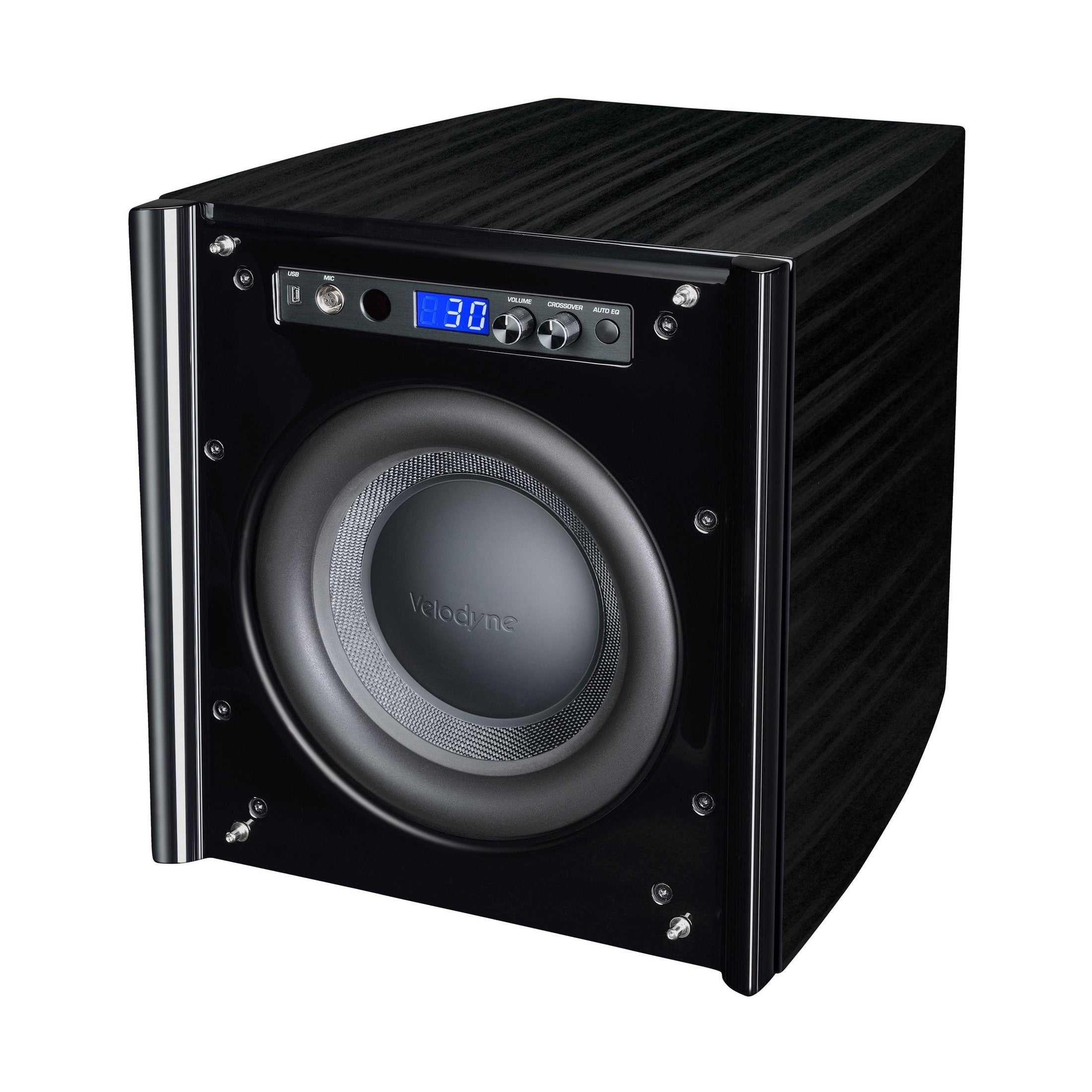

| Driver | 10″ forward firing | |||
|---|---|---|---|---|
| Amplifier Class D | 3000 watts dynamic 1250 watts RMS power |
|||
| Frequency Response: Overall Frequency Response: (± 3 dB) |
10.5 – 300 Hz 18.7 – 120 Hz |
|||
| THD | < 0.5 % (typical) | |||
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave | |||
| Low Pass Crossover | 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
|||
| Phase | 0 to 180 degrees (variable in 15 degree increments) | |||
| Polarity | Adjustable (+/-) | |||
| Magnet Structure | 35 lbs. | |||
| Voice Coil | Six-layer, 65 mm | |||
| Cone | Fiberglass Rohacell Laminate | |||

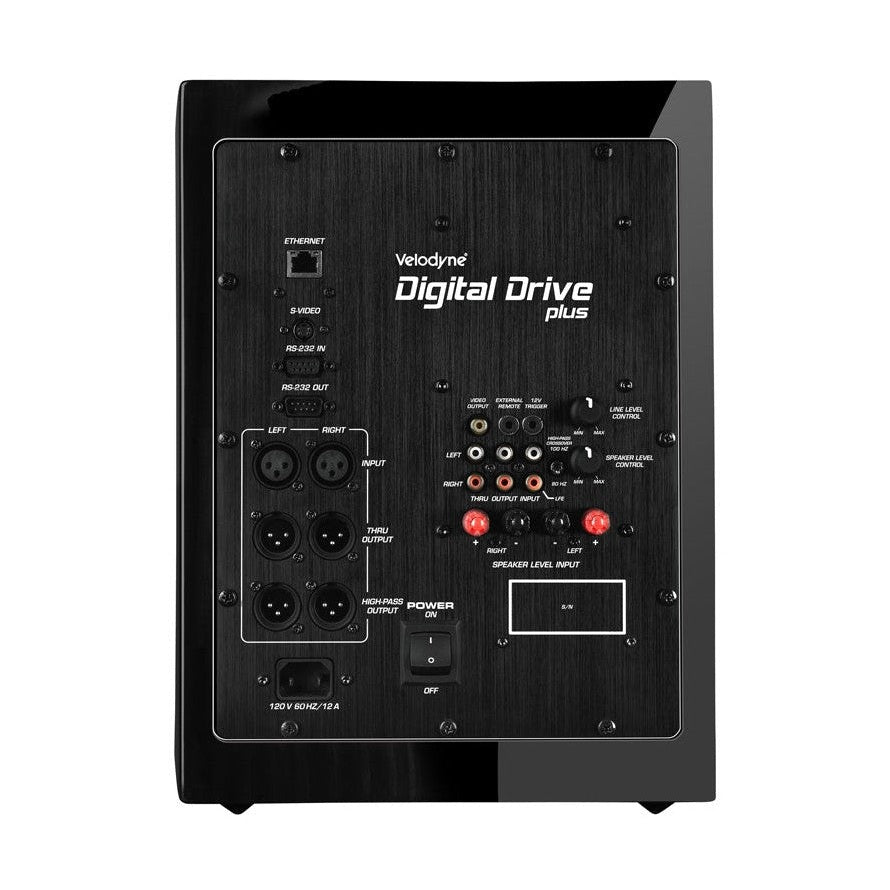

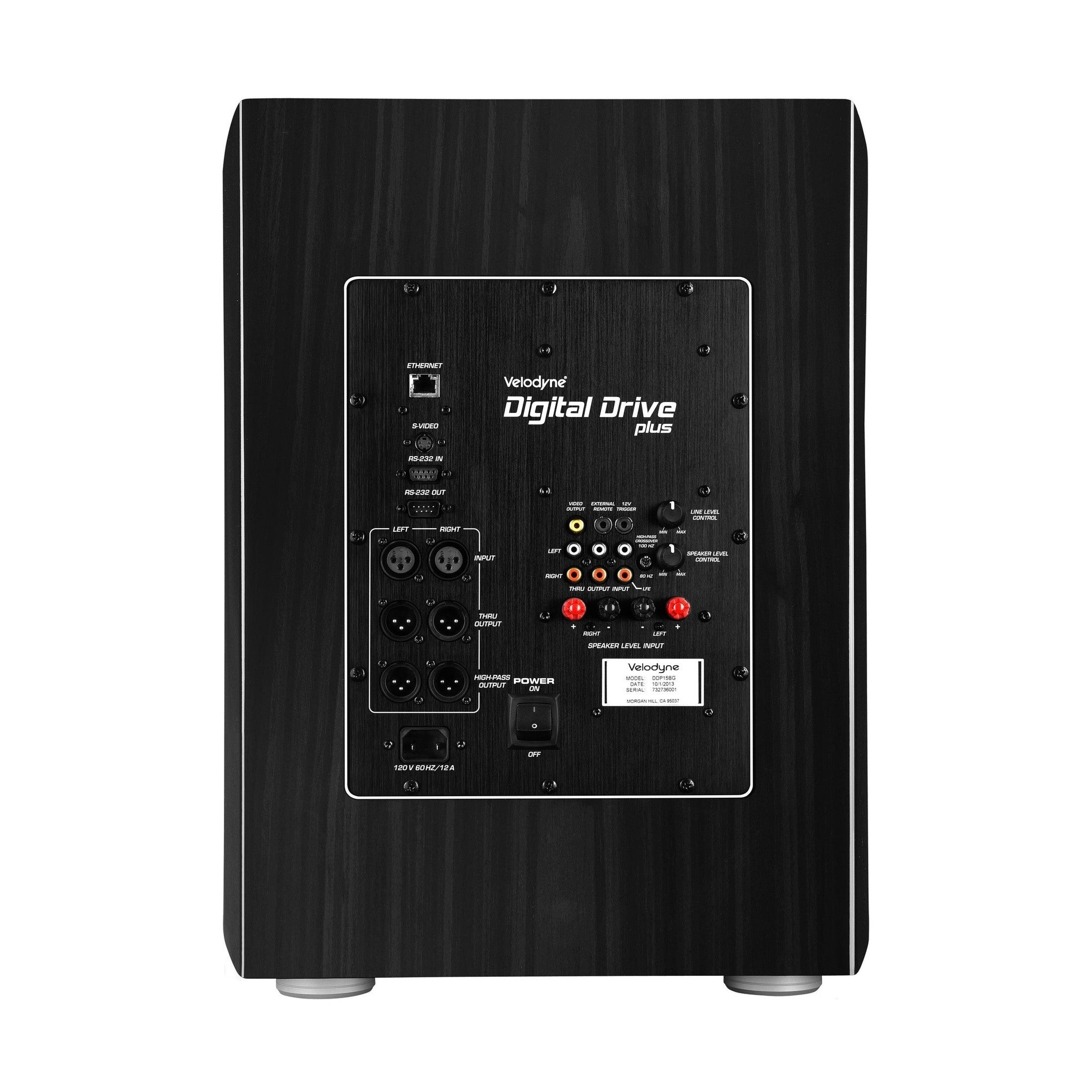

| Input LFE (Mono) | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K | |||
| Input L&R | Line level (RCA & XLR) | |||
| Input Microphone | Balanced (Mini-XLR, cable included) | |||
| Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs | |||
| Output Thru (L&R) | Line level (RCA & XLR) | |||
| Output (L&R), High-Pass (L&R) | Line level (RCA & XLR) | |||
| Included Accessories | Full feature remote control, DD+ accessory kit and video cable | |||
| Finishes | Black gloss ebony or Piano Black | |||
| Dimensions (H/W/D) (includes feet and connectors) | 14.2” x 13” x 16.6” (36 x 33 x 42 cm) | |||
| Shipping Weight (approx) | 34 kg | |||

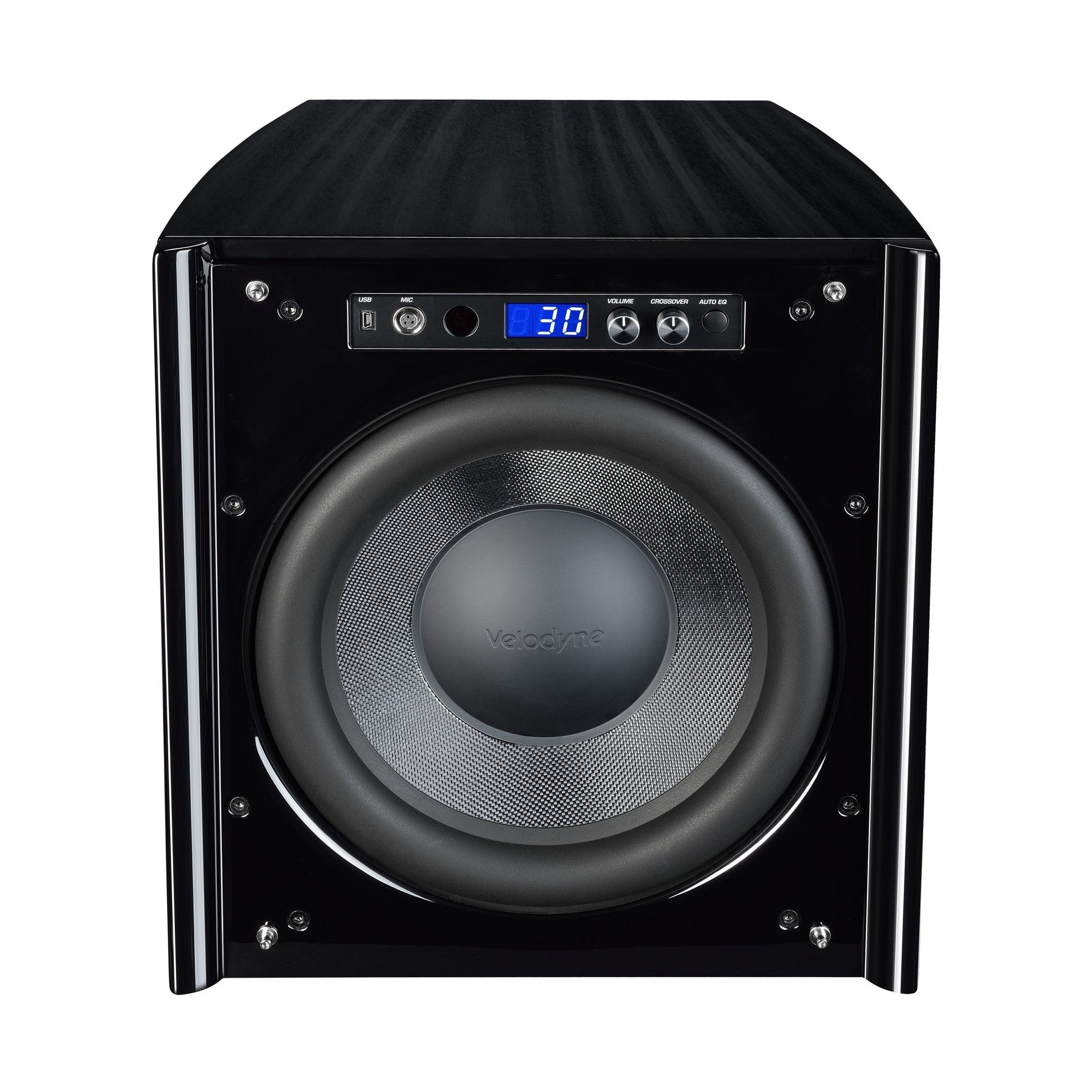

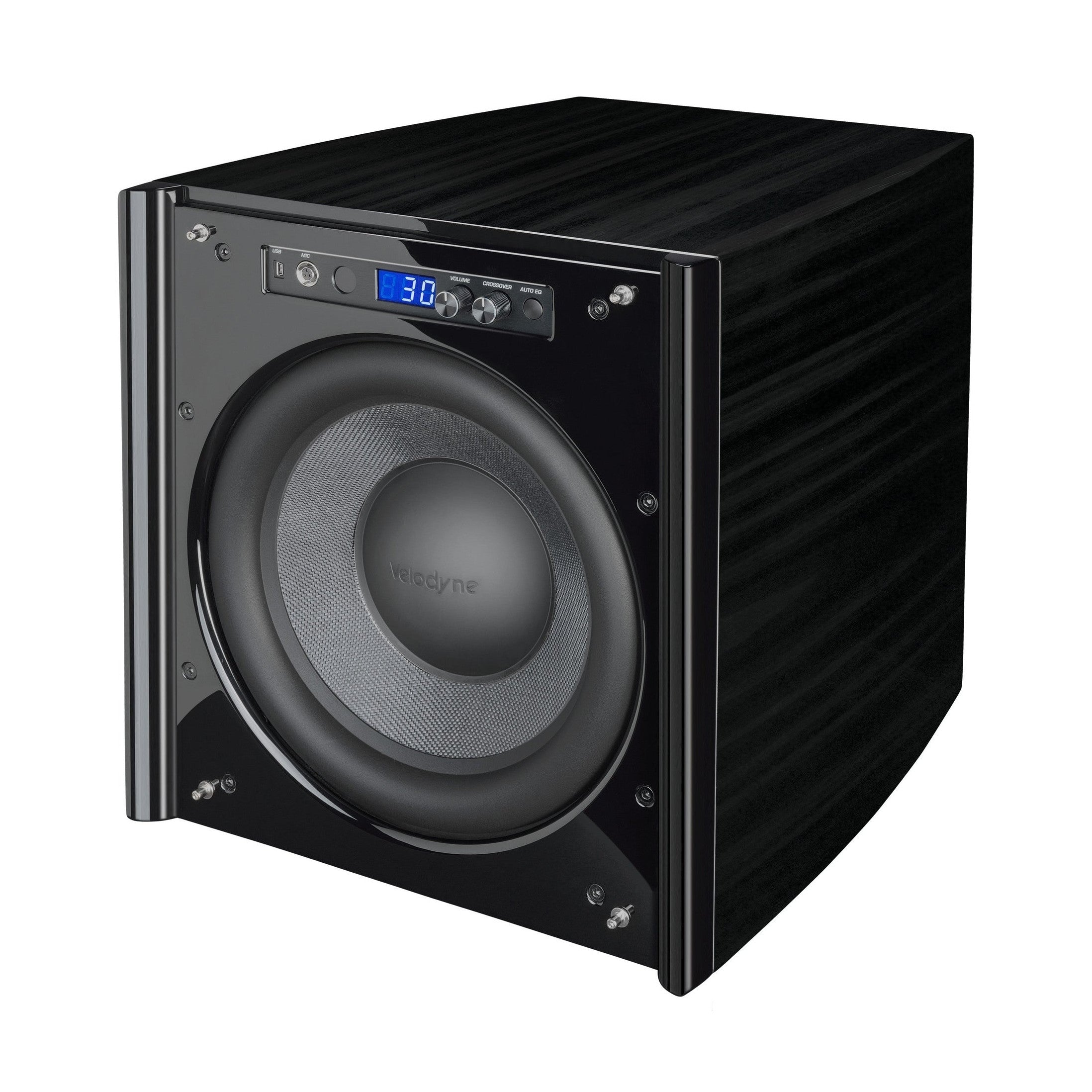

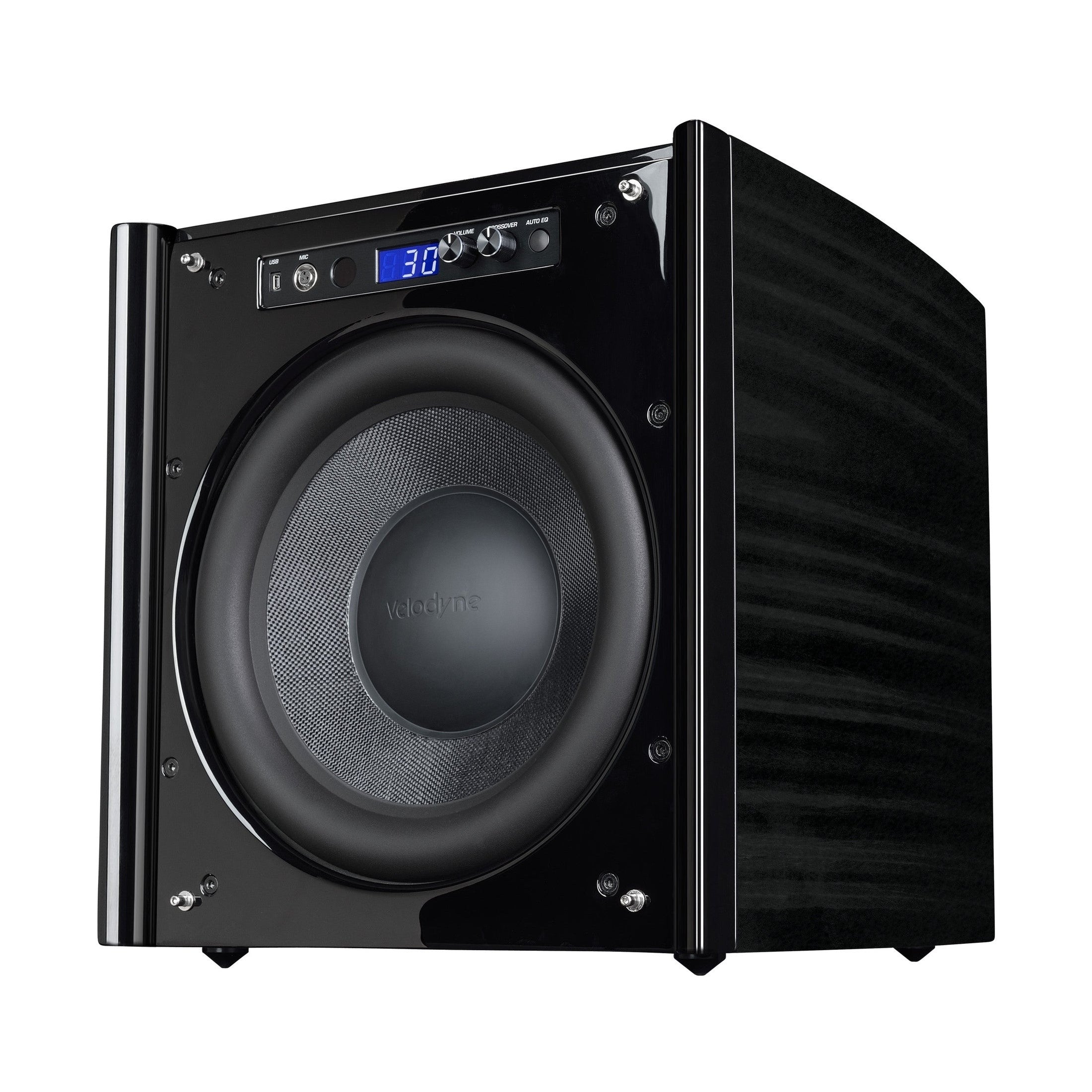

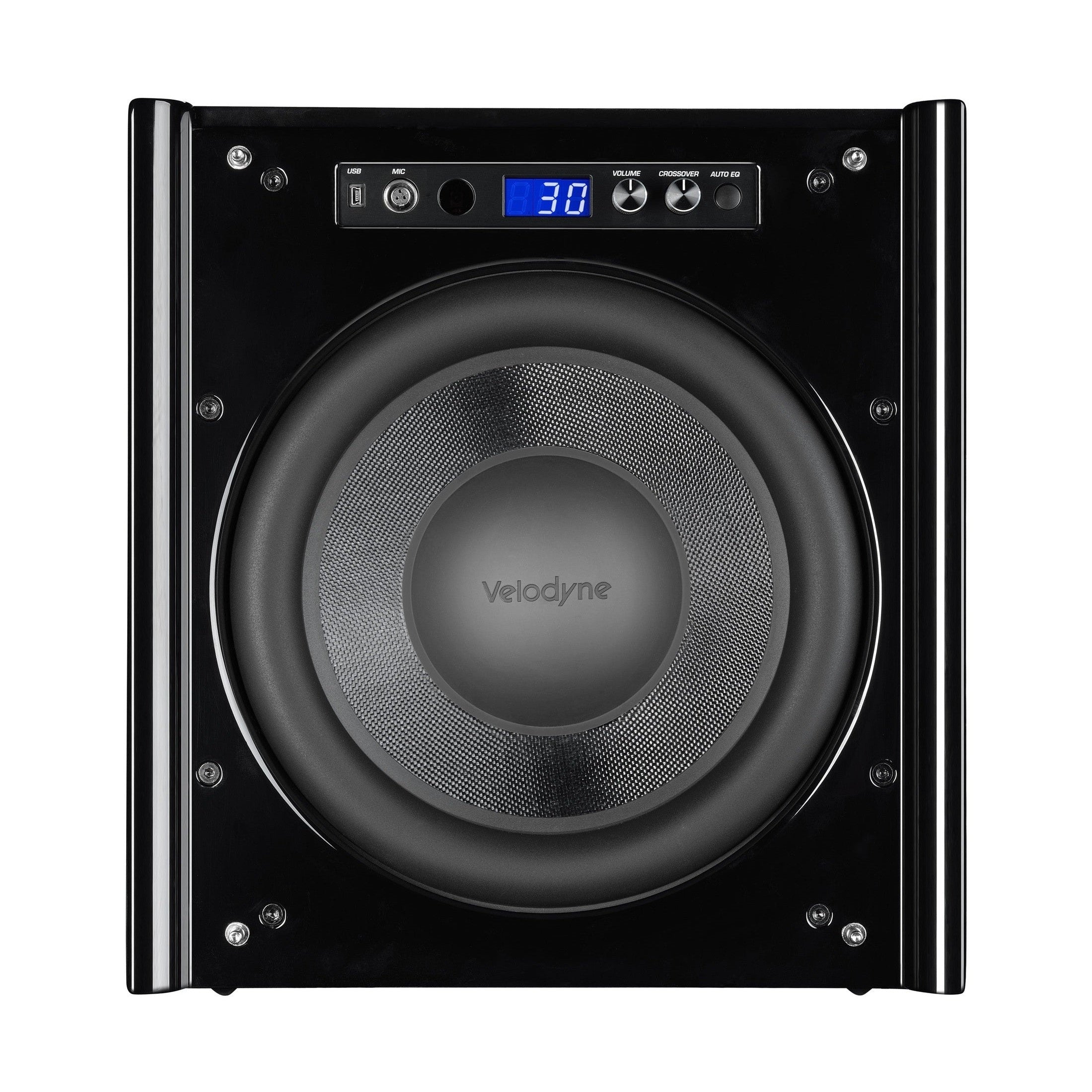

| Driver | 12″ forward firing | |||
|---|---|---|---|---|
| Amplifier Class D | 3000 watts dynamic 1250 watts RMS power |
|||
| Frequency Response: Overall Frequency Response: (± 3 dB) |
10.2 – 300 Hz 17.0 – 120 Hz |
|||
| THD | < 0.5 % (typical) | |||
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave | |||
| Low Pass Crossover | 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
|||
| Phase | 0 to 180 degrees (variable in 15 degree increments) | |||
| Polarity | Adjustable (+/-) | |||
| Magnet Structure | 35 lbs. | |||
| Voice Coil | Six-layer, 65 mm | |||
| Cone | Fiberglass Rohacell Laminate | |||

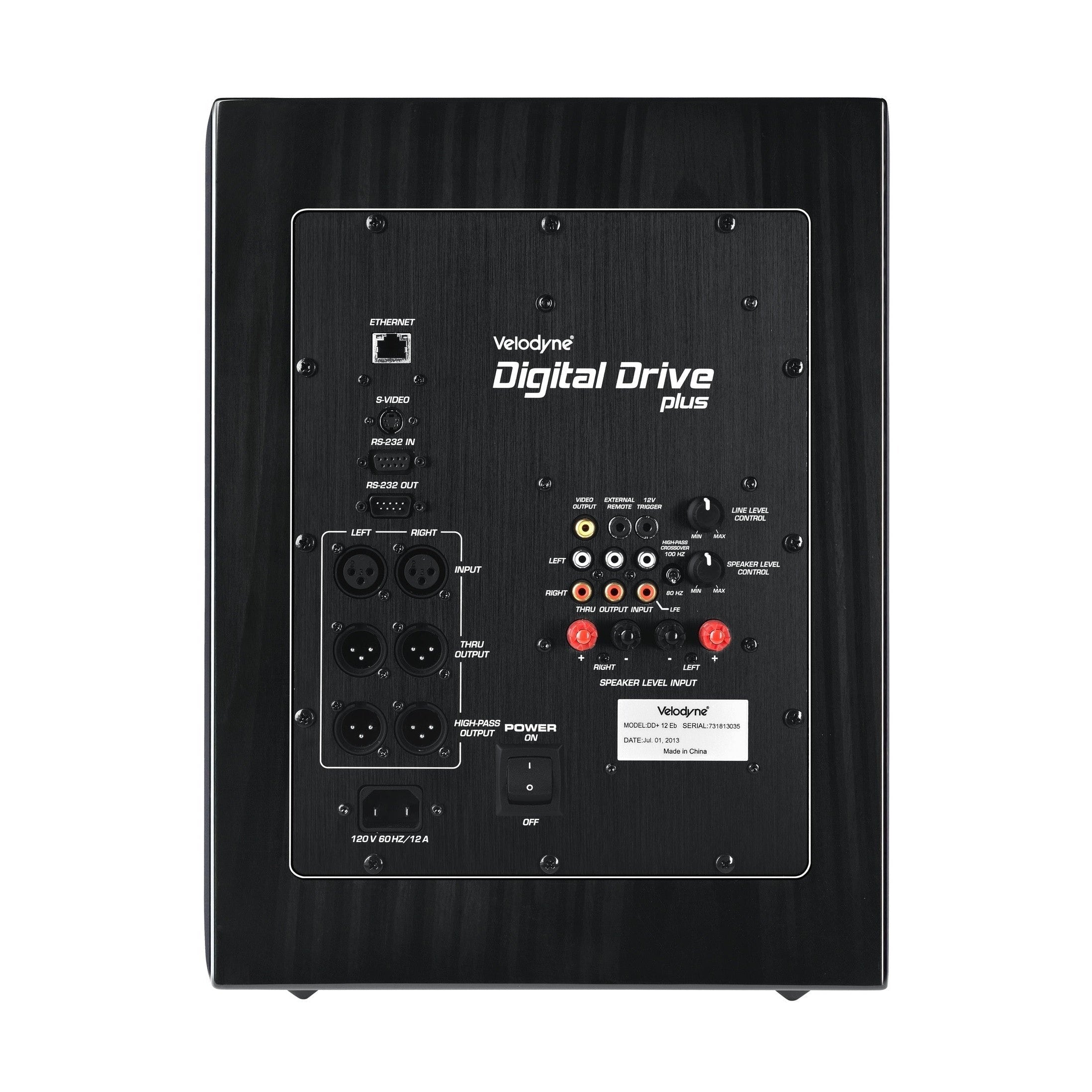

| Input LFE (Mono) | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K | |||
| Input L&R | Line level (RCA & XLR) | |||
| Input Microphone | Balanced (Mini-XLR, cable included) | |||
| Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs | |||
| Output Thru (L&R) | Line level (RCA & XLR) | |||
| Output (L&R), High-Pass (L&R) | Line level (RCA & XLR) | |||
| Included Accessories | Full feature remote control, DD+ accessory kit and video cable | |||
| Finishes | Black gloss ebony or Piano Black | |||
| Dimensions (H/W/D) (includes feet and connectors) | 15.8” x 14.4” x 18” (40 x 37 x 46 cm) | |||
| Shipping Weight (approx) | 38,6 kg | |||

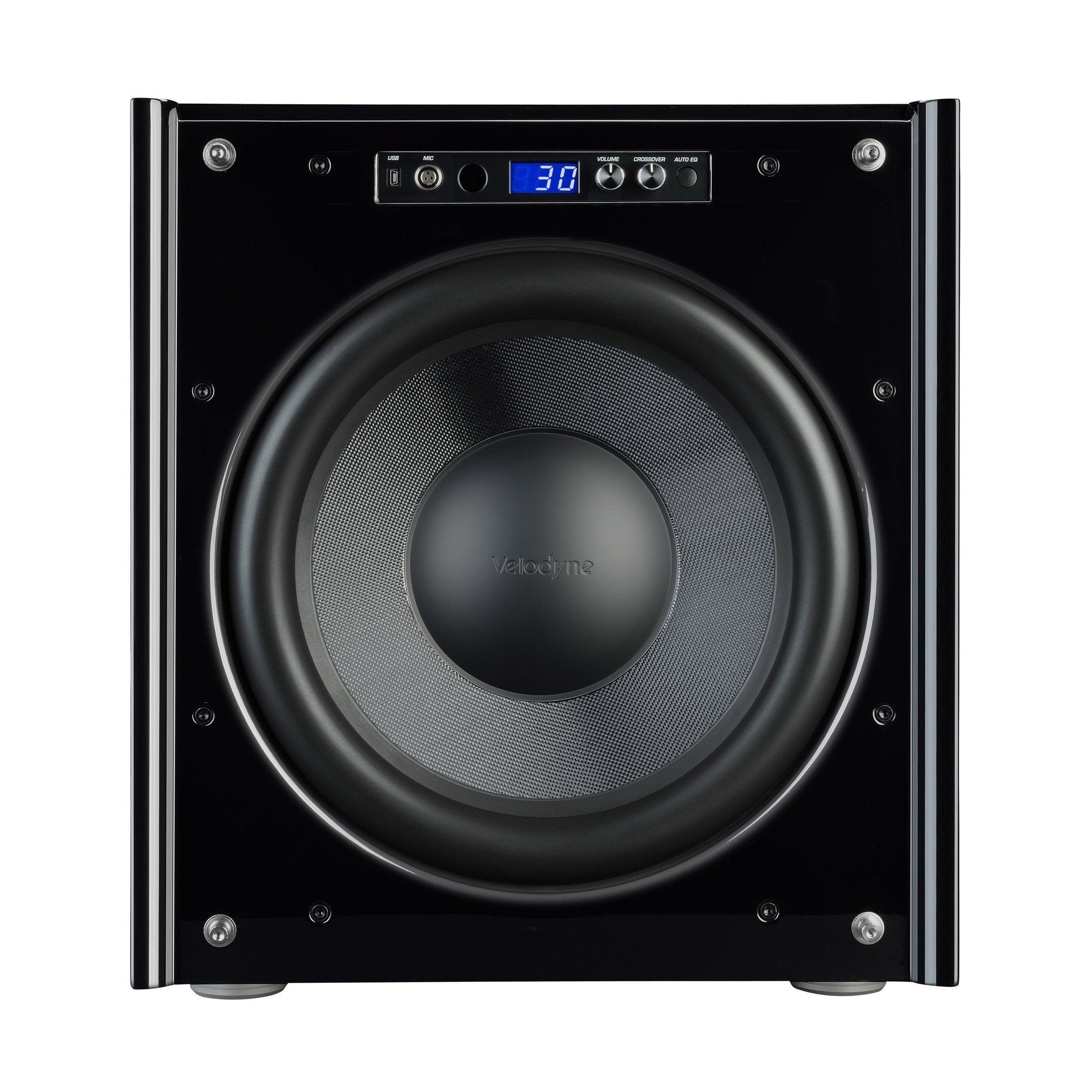

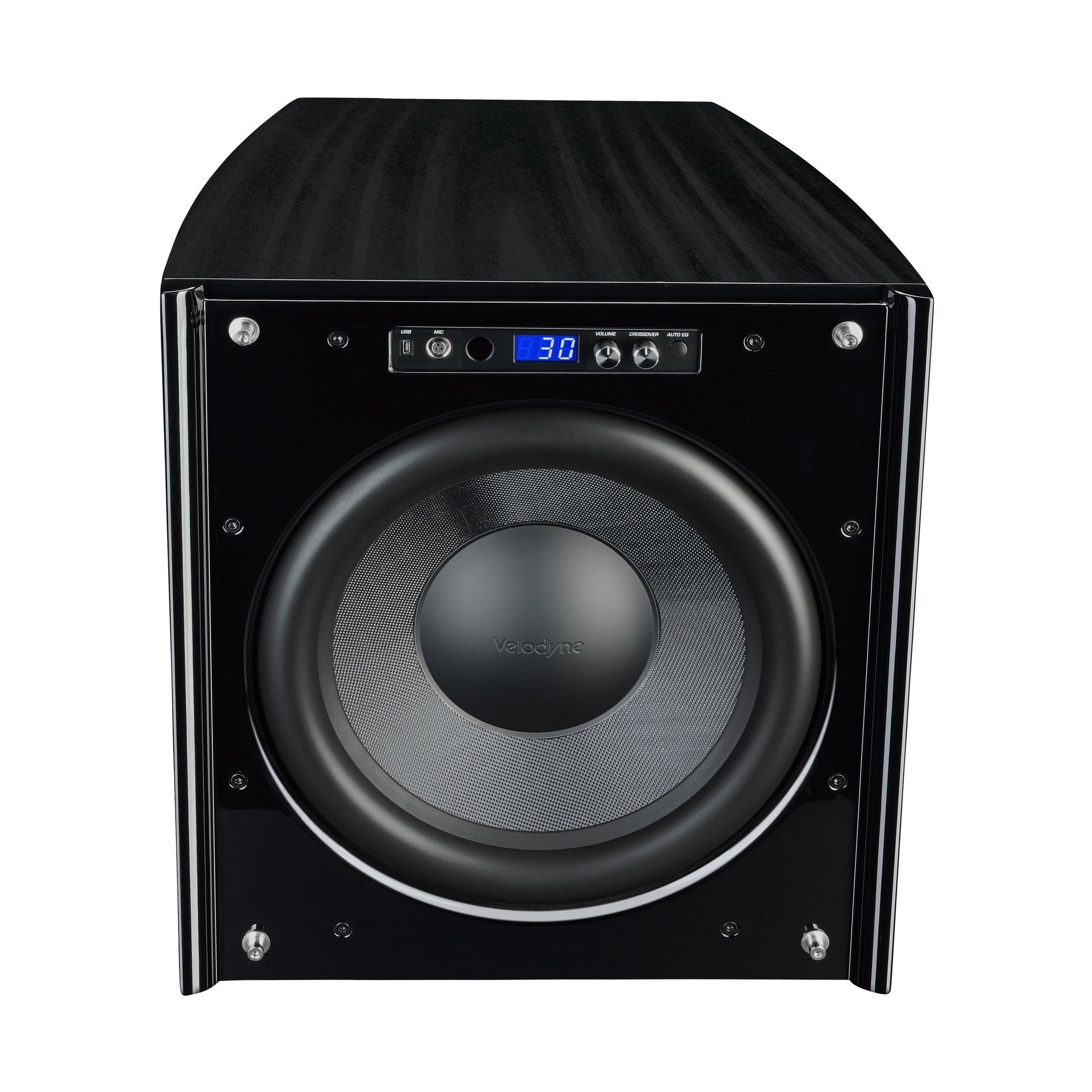

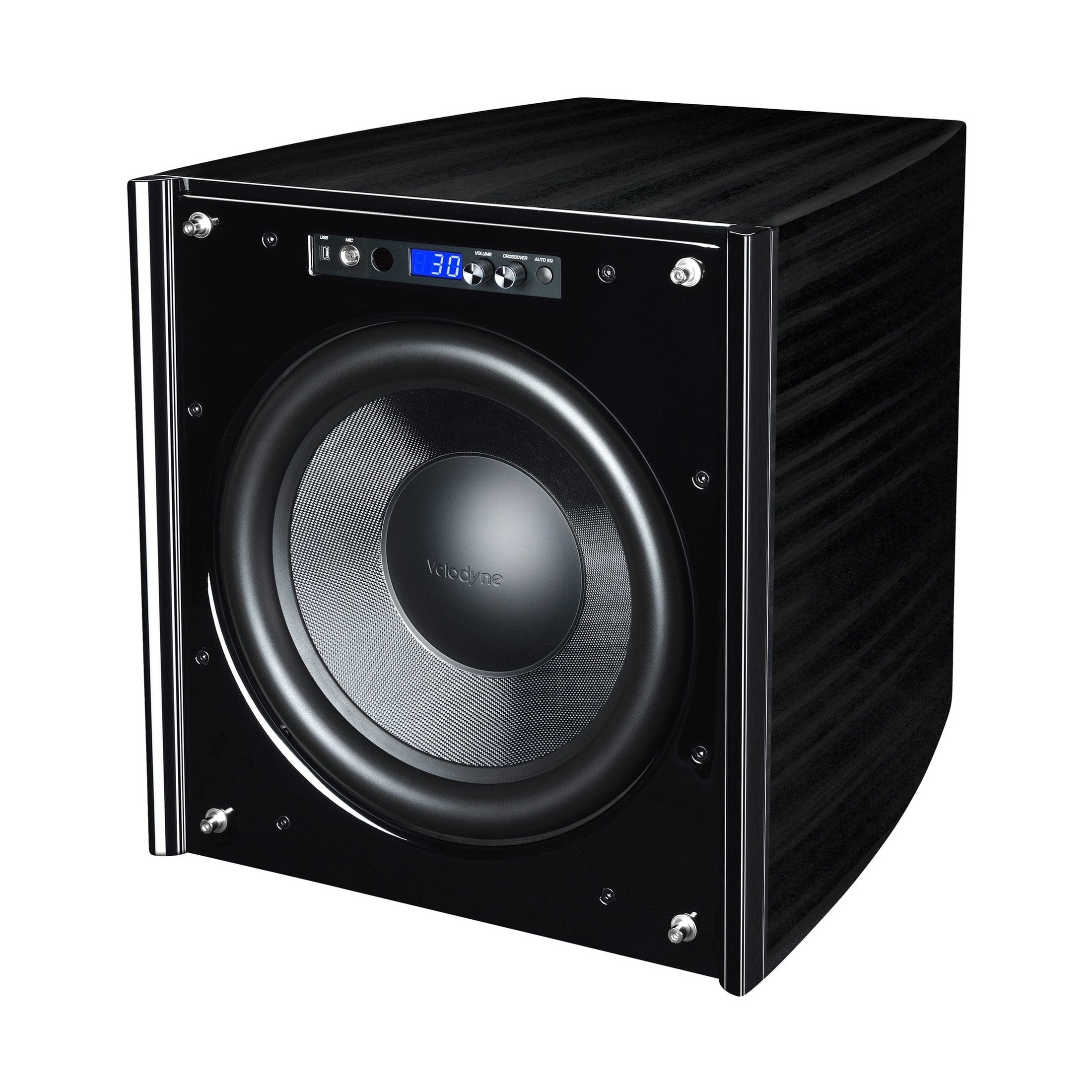

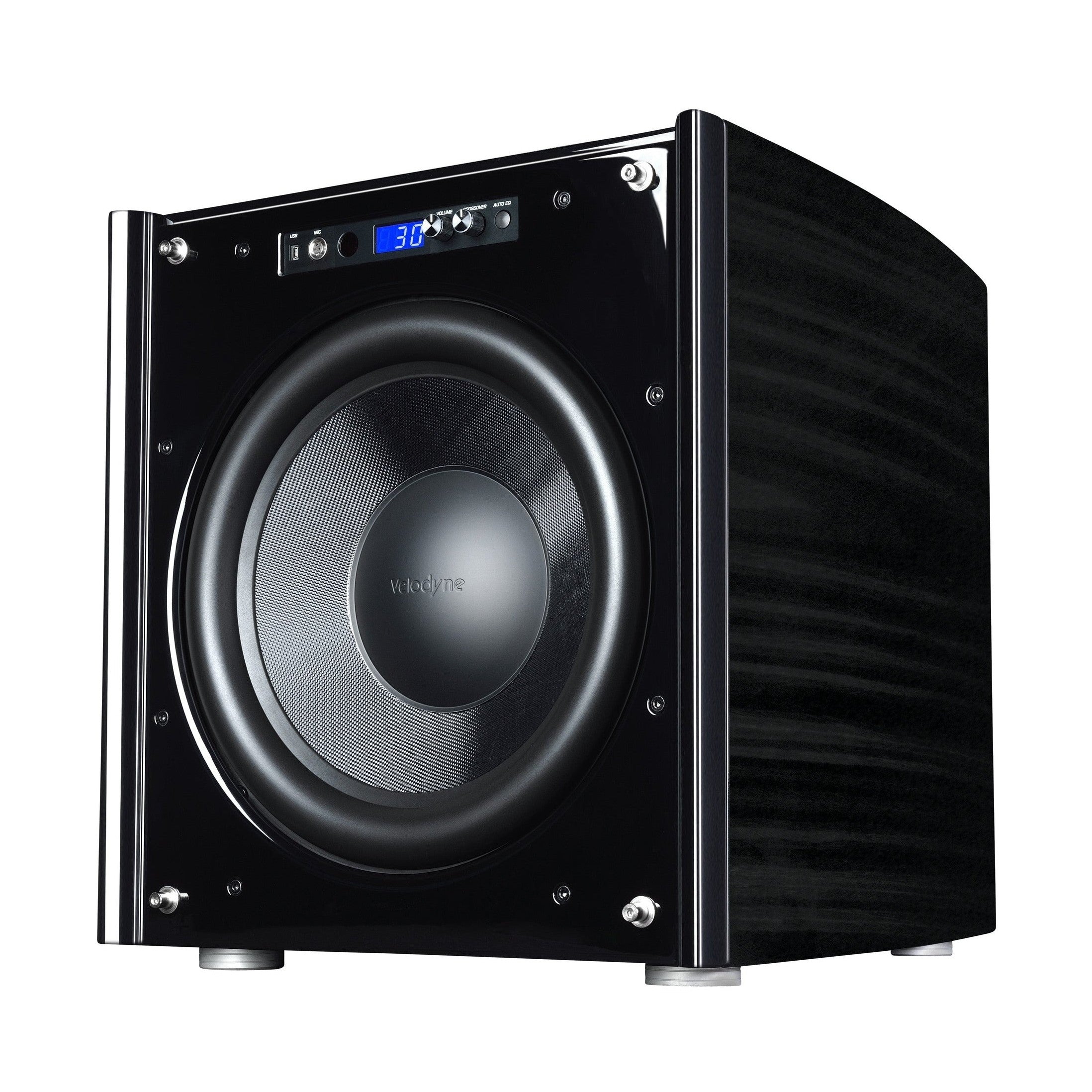

| Driver | 15″ forward firing | |||
|---|---|---|---|---|
| Amplifier Class D | 3000 watts dynamic 1250 watts RMS power |
|||
| Frequency Response: Overall Frequency Response: (± 3 dB) |
9.0 – 300 Hz 14.6 – 120 Hz |
|||
| THD | < 0.5 % (typical) | |||
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave | |||
| Low Pass Crossover | 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
|||
| Phase | 0 to 180 degrees (variable in 15 degree increments) | |||
| Polarity | Adjustable (+/-) | |||
| Magnet Structure | 39.7 lbs. | |||
| Voice Coil | Six-layer, 75 mm | |||
| Cone | Fiberglass Rohacell Laminate | |||
| Input LFE (Mono) | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K | |||
| Input L&R | Line level (RCA & XLR) | |||
| Input Microphone | Balanced (Mini-XLR, cable included) | |||
| Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs | |||
| Output Thru (L&R) | Line level (RCA & XLR) | |||
| Output (L&R), High-Pass (L&R) | Line level (RCA & XLR) | |||
| Included Accessories | Full feature remote control, DD+ accessory kit and video cable | |||
| Finishes | Black gloss ebony or Piano Black | |||
| Dimensions (H/W/D) (includes feet and connectors) | 20” x 18.1” x 22.5” (51 x 46 x 57 cm) | |||
| Shipping Weight (approx) | 54,4 kg | |||

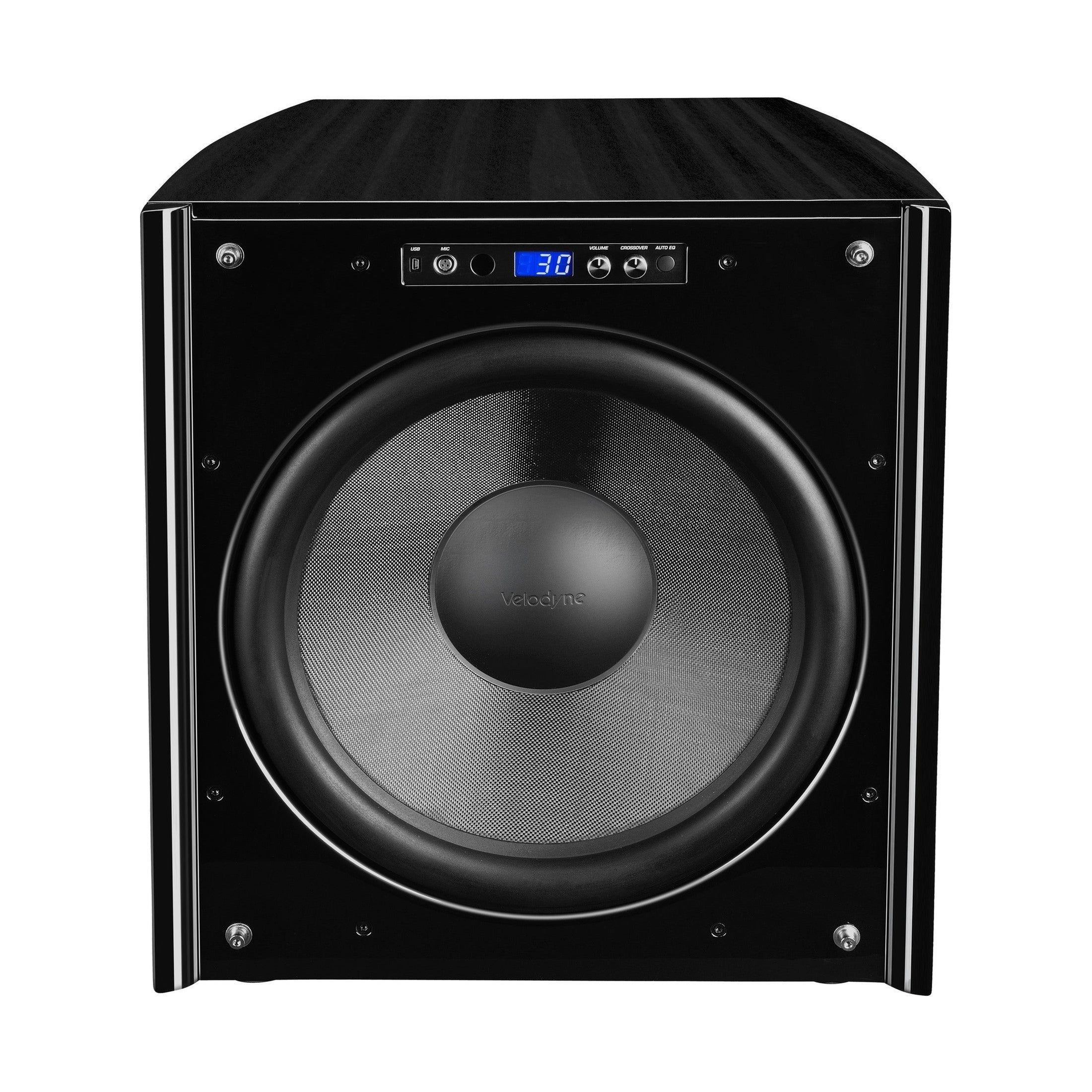

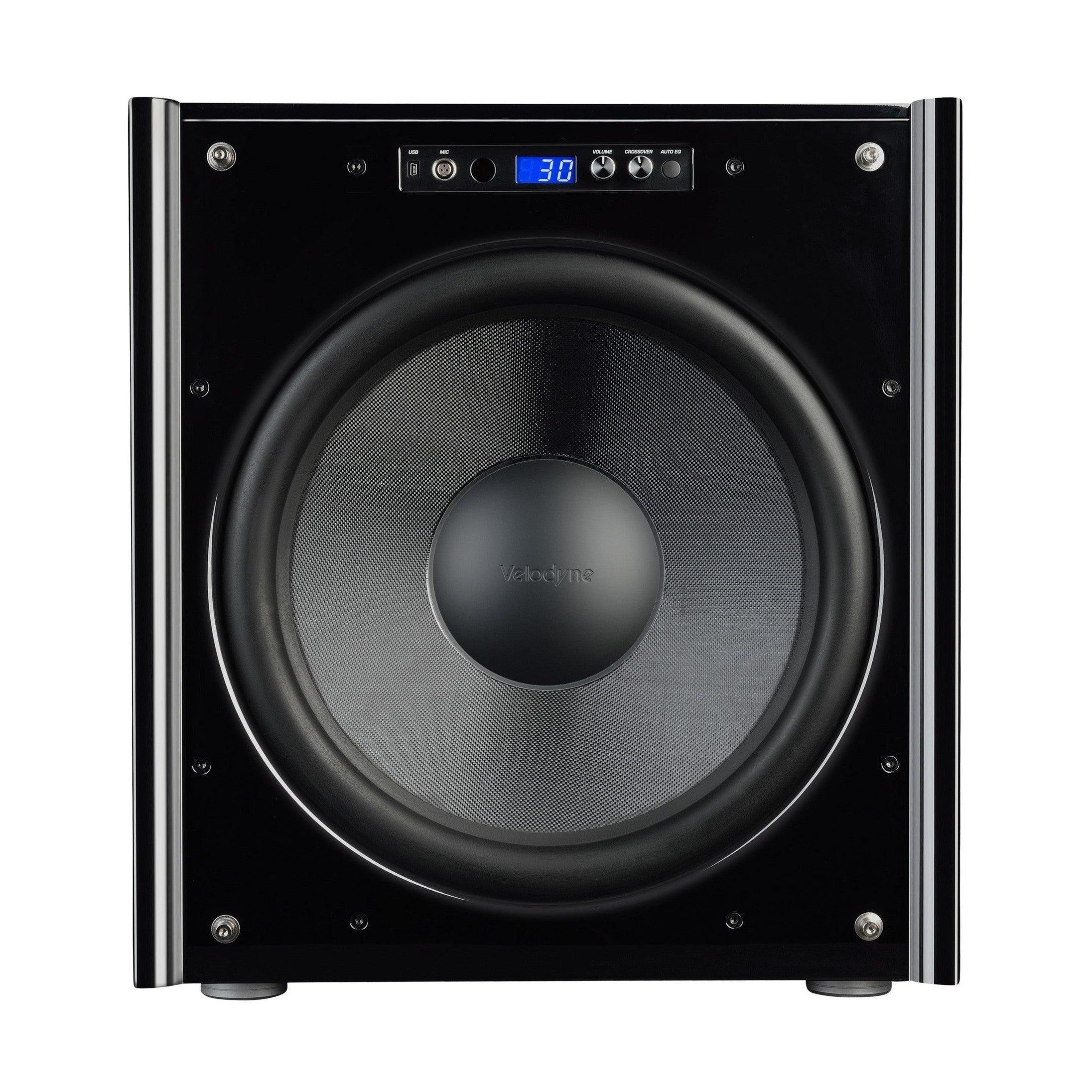

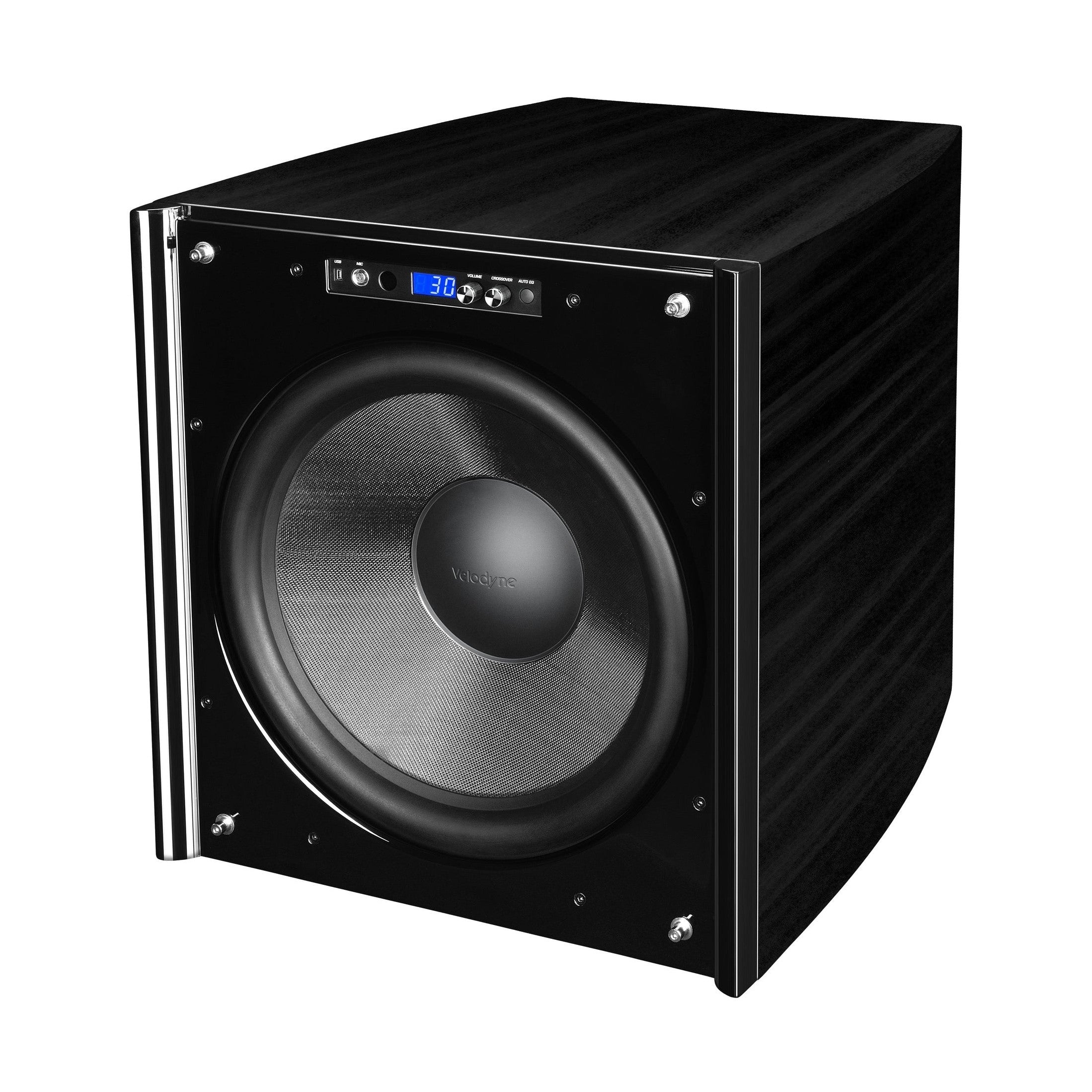

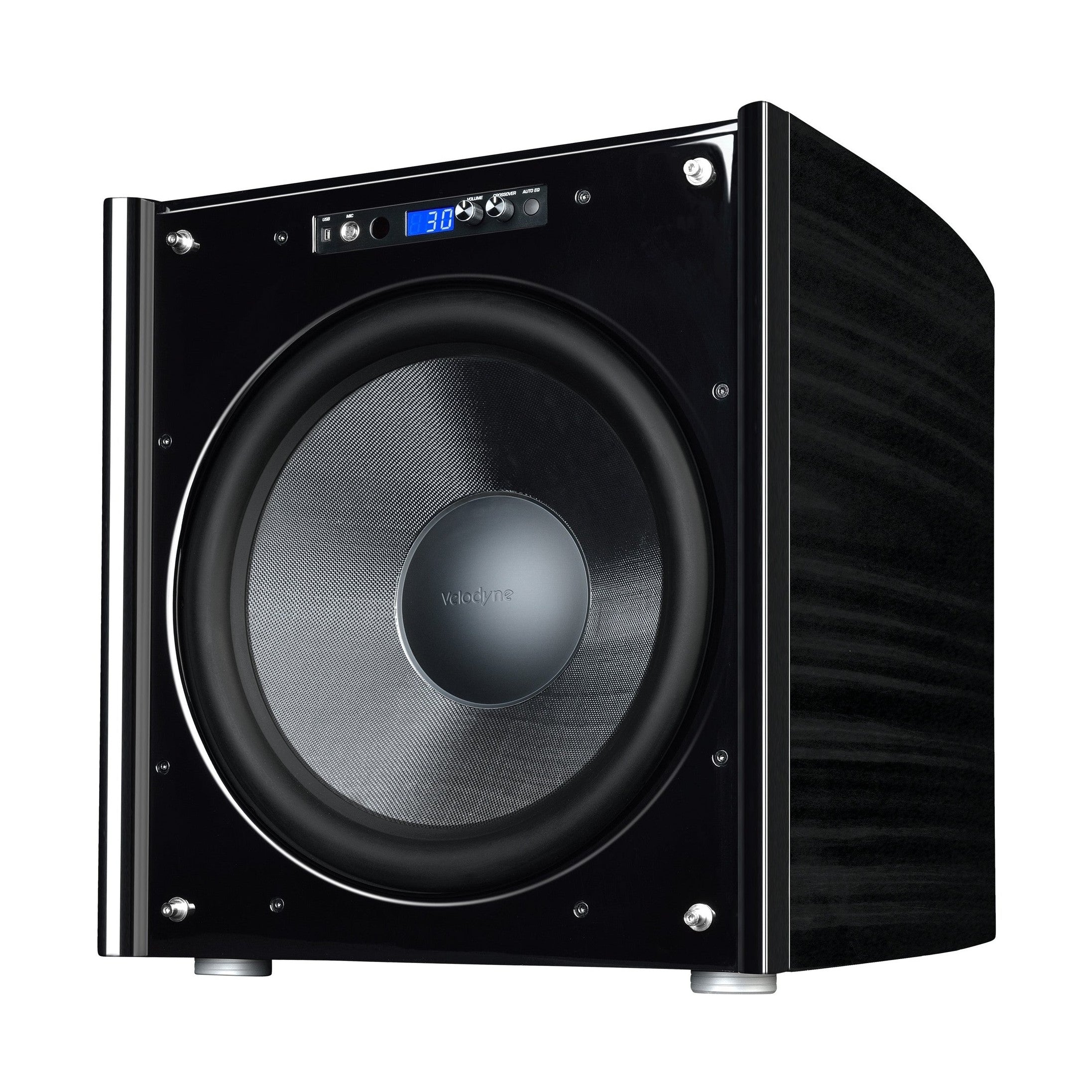

| Driver | 18″ forward firing | |||
|---|---|---|---|---|
| Amplifier Class D | 3000 watts dynamic 1250 watts RMS power |
|||
| Frequency Response: Overall Frequency Response: (± 3 dB) |
8.8 – 300 Hz 14.4 – 120 Hz |
|||
| THD | < 0.5 % (typical) | |||
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave | |||
| Low Pass Crossover | 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
|||
| Phase | 0 to 180 degrees (variable in 15 degree increments) | |||
| Polarity | Adjustable (+/-) | |||
| Magnet Structure | 39.7 lbs. | |||
| Voice Coil | Six-layer, 75 mm | |||
| Cone | Fiberglass Rohacell Laminate | |||
| Input LFE (Mono) | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K | |||
| Input L&R | Line level (RCA & XLR) | |||
| Input Microphone | Balanced (Mini-XLR, cable included) | |||
| Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs | |||
| Output Thru (L&R) | Line level (RCA & XLR) | |||
| Output (L&R), High-Pass (L&R) | Line level (RCA & XLR) | |||
| Included Accessories | Full feature remote control, DD+ accessory kit and video cable | |||
| Finishes | Black gloss ebony or Piano Black | |||
| Dimensions (H/W/D) (includes feet and connectors) | 22.7” x 20.7” x 25.6” (58 x 53 x 65 cm) | |||
| Shipping Weight (approx) | 64,4 kg | |||
