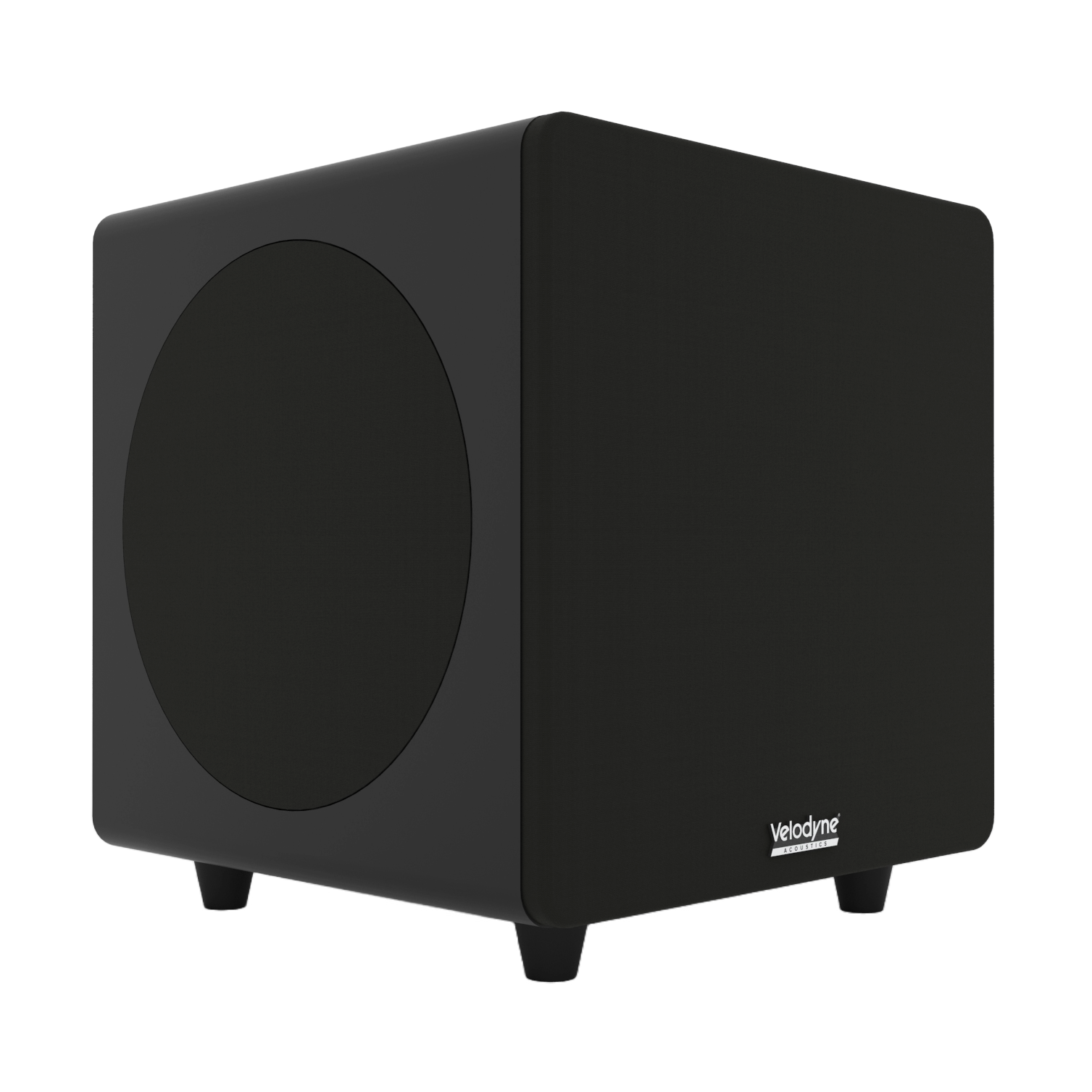

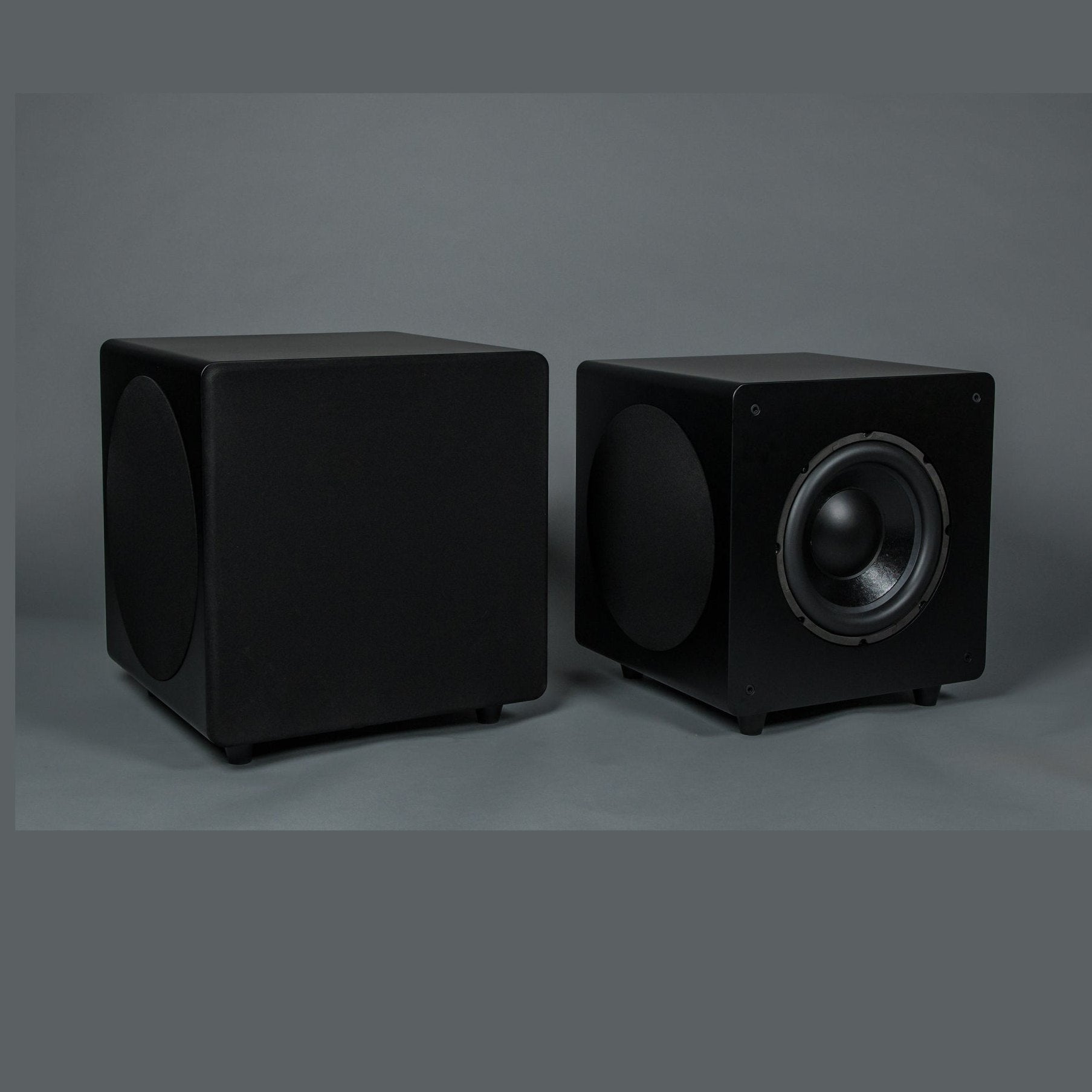

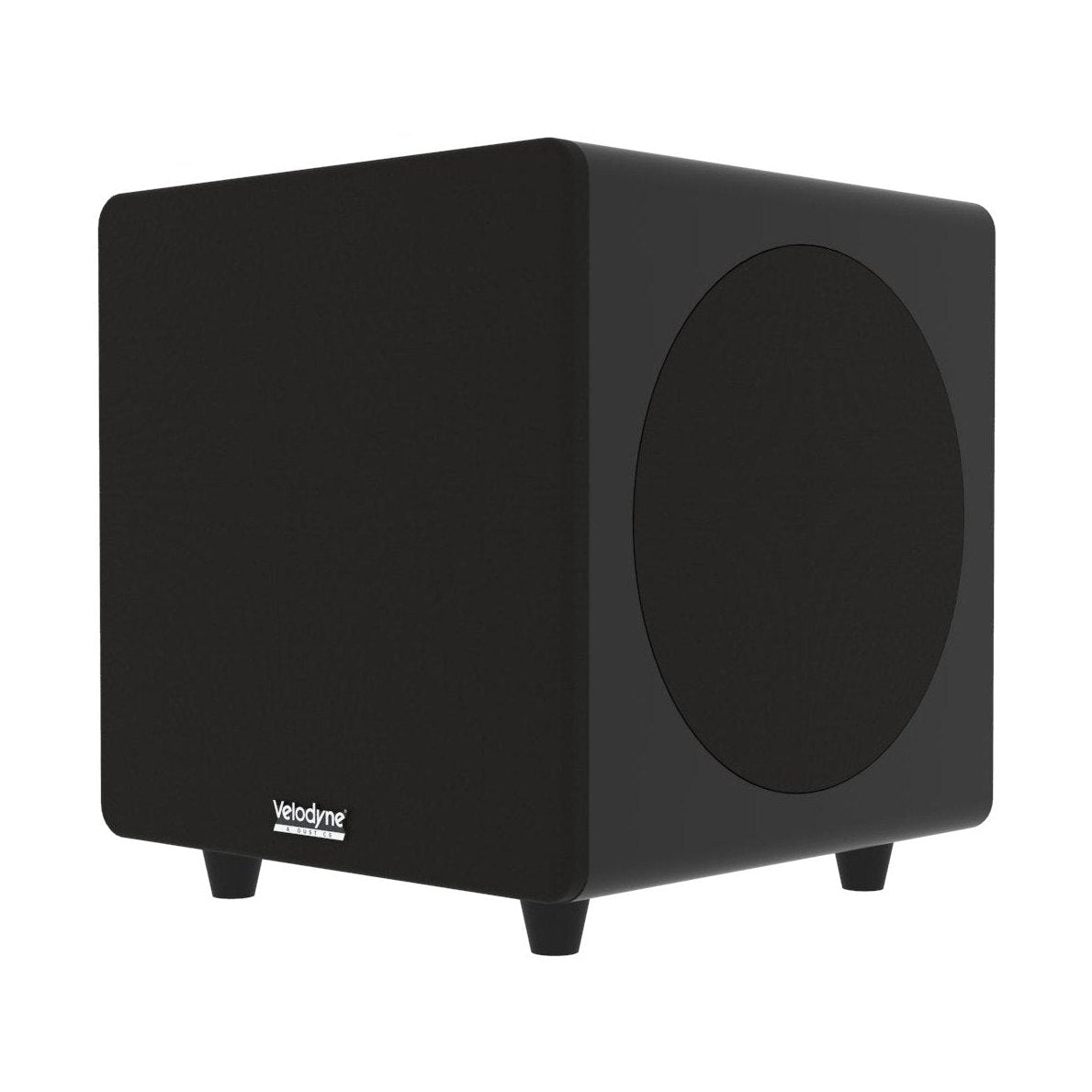

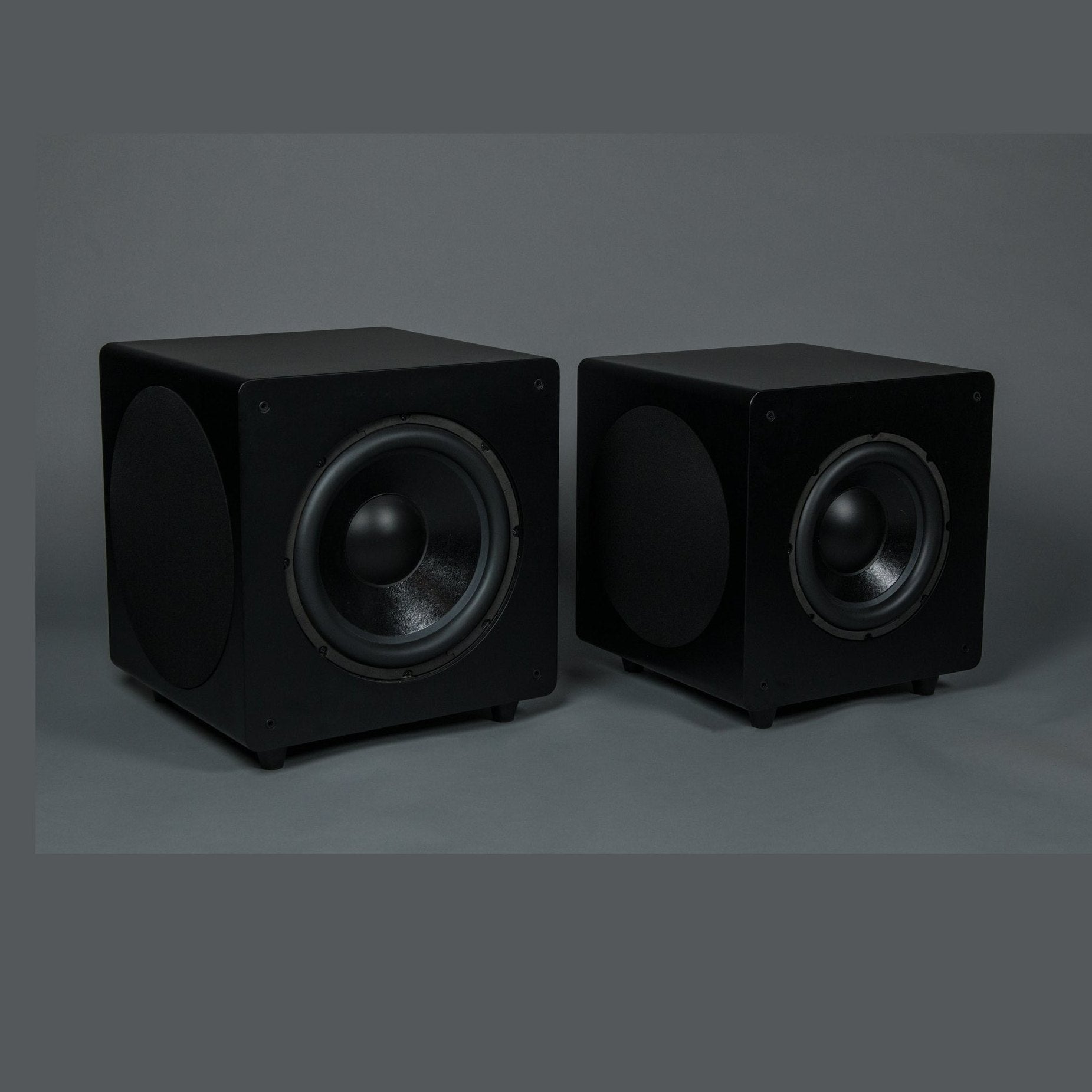

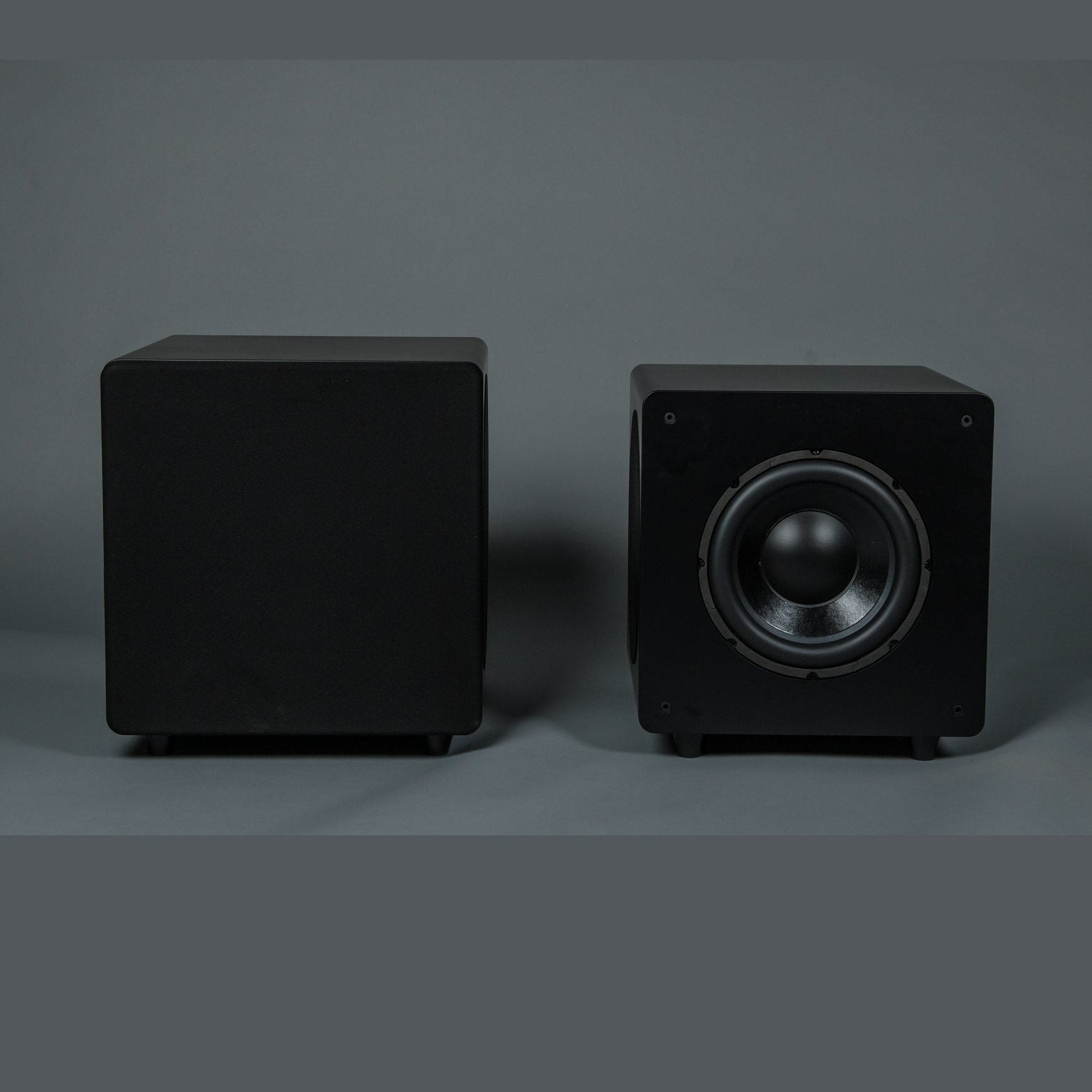

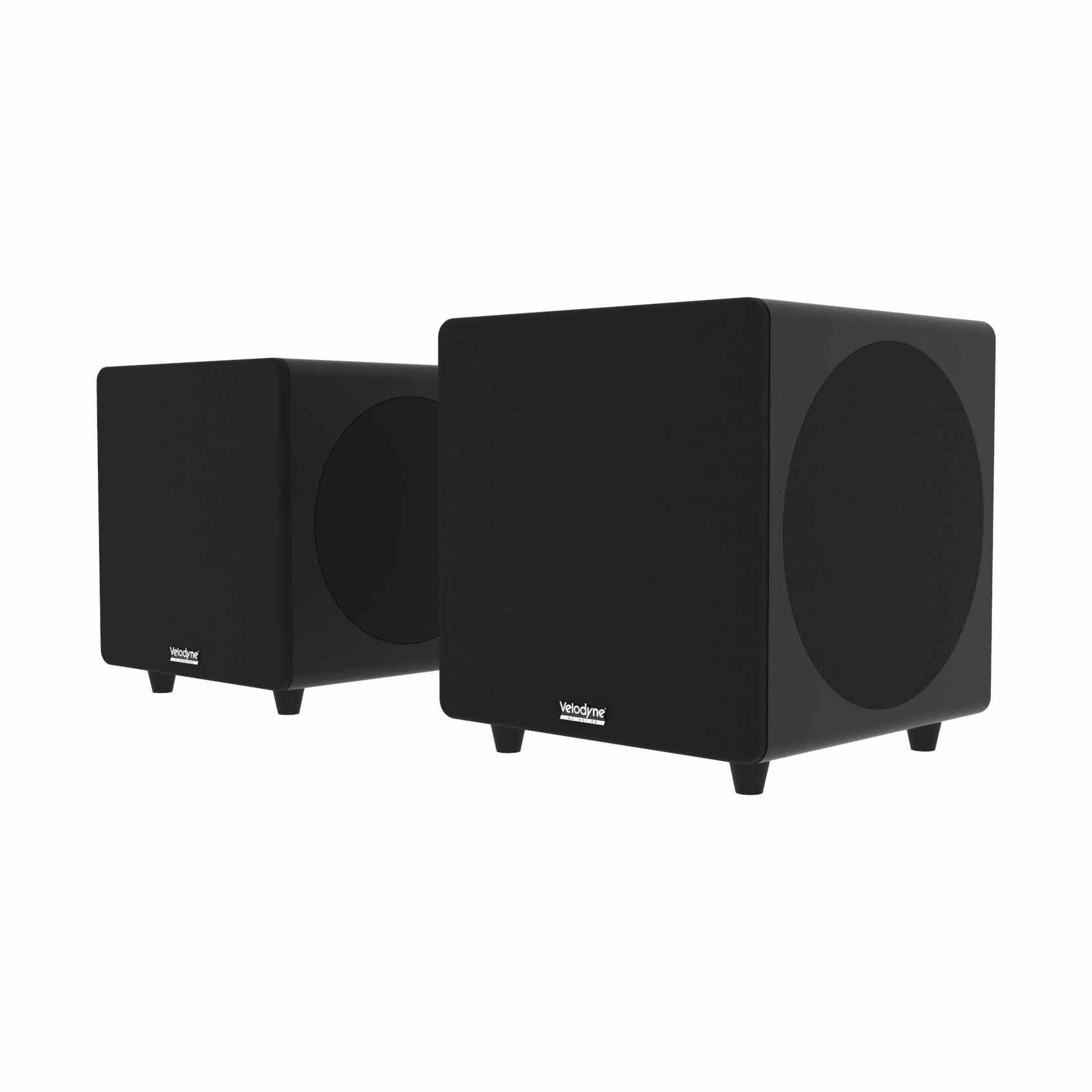

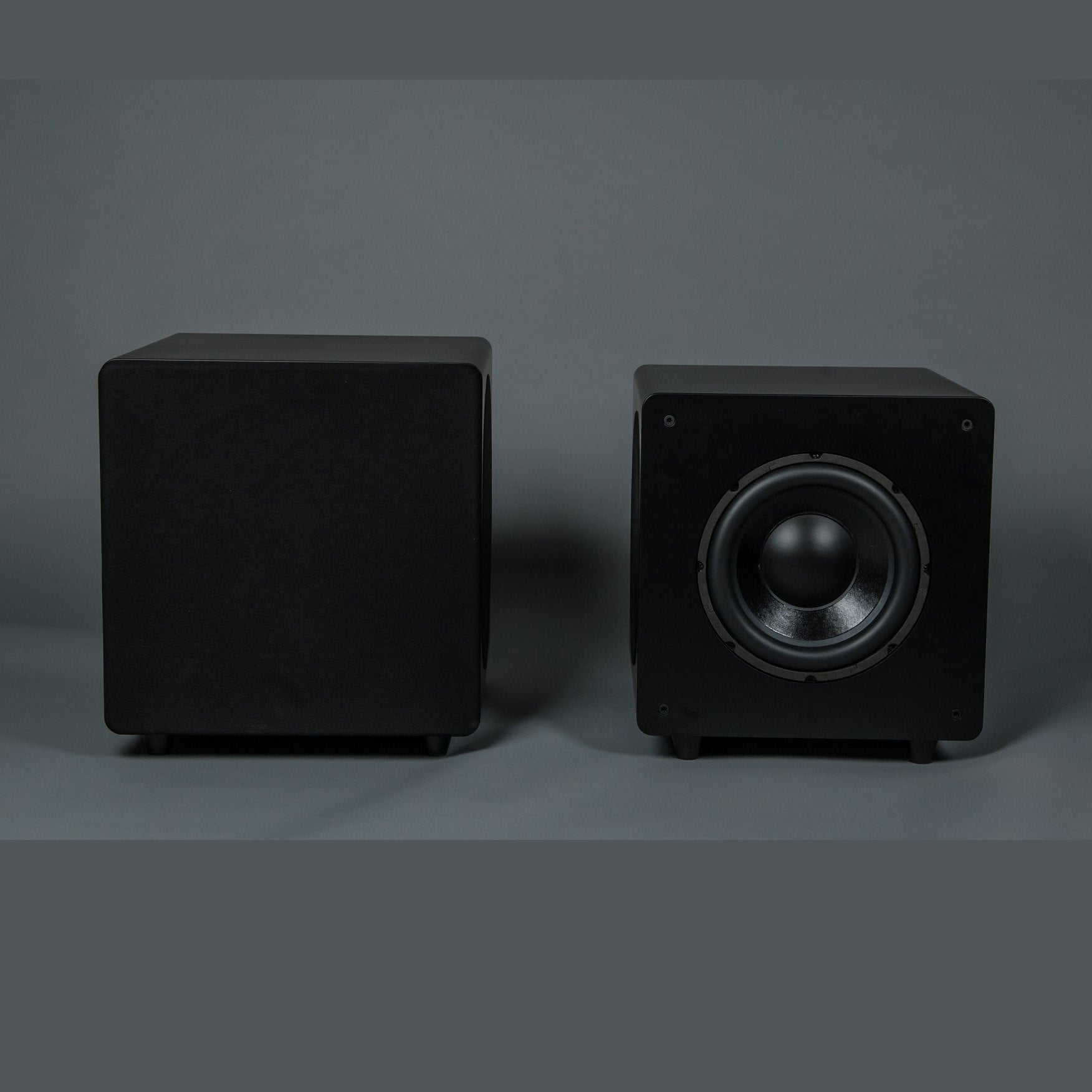

With the high-quality, matte black enclosure and a front-firing active driver with side-firing passive radiators, the Deep Waves series ensures an undreamt-of presence in the home theater. New technology also makes app control from the listening position a uniquely convenient experience.
Velodyne Acoutics offers the highest precision, performance and adjustability even in an affordable model.
| Driver | 10″ front firing driver 10” side radiating passive radiators |
|---|---|
| Amplifier Class D | 600 watt dynamic 350 watt RMS |
| Overall Frequency Response: (± 3 dB) | 28 Hz – 200 Hz |
| Overall Frequency Response: (± 10 dB) | 25 Hz – 280 Hz |
| Low Pass Crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet Design | 22 mm MDF |
| Magnet Structure | Dual ferrite magnet motor |
| Woofer | 10” high excursion double vented basket driver with pp Membrane and convex cone |
| Voice Coil | Four Layer 2,5″ / 63 mm voice coil |

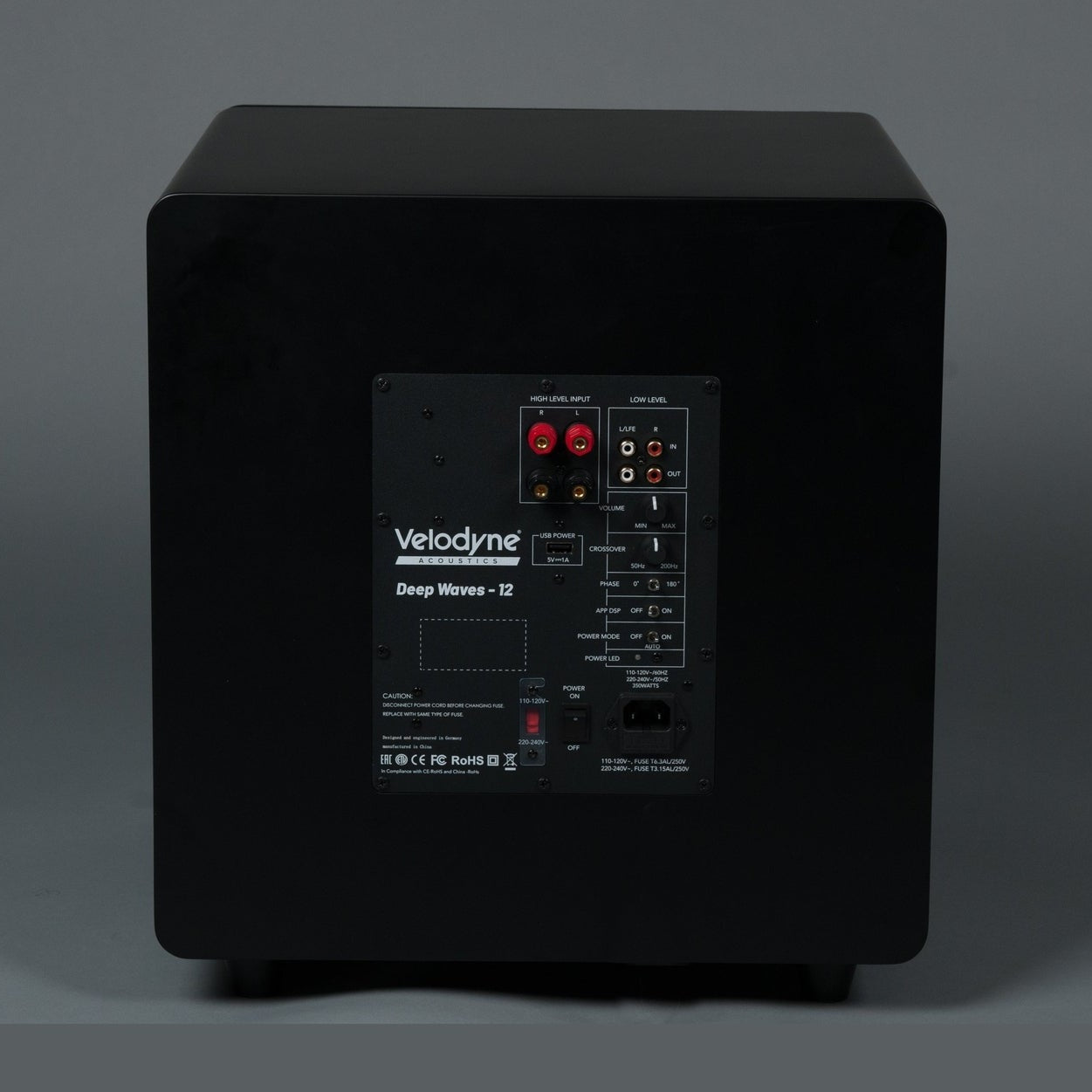

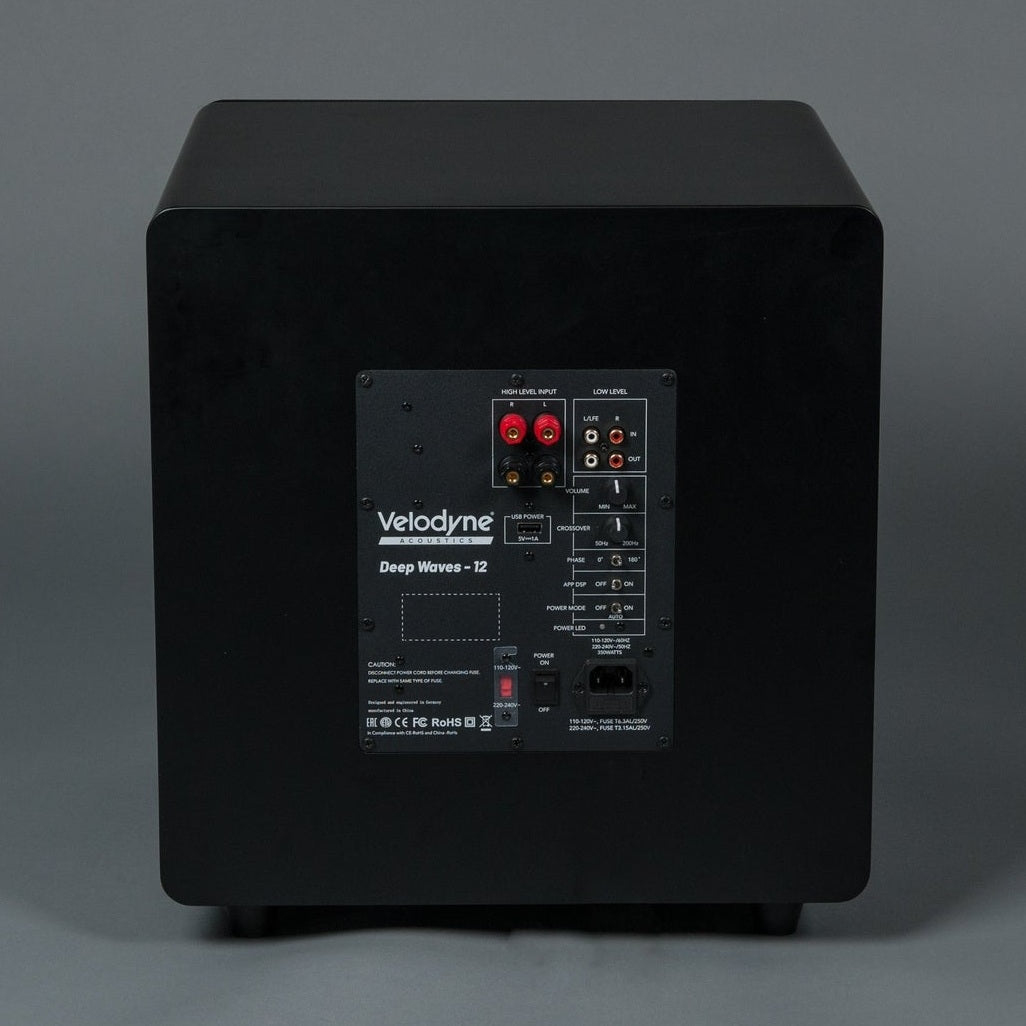

| Input | Gold plated Stereo/LFE RCA, Nickel plated High level in |
| Output | Gold plated Stereo/ LFE RCA |
| Power Selector | Off / Auto / On |
| Finishes | Flat matte black paint |
| Dimensions (W/H/D) (includes feet and connectors) | 38 cm x 40 cm x 32 cm |
| Weight (approx) | 21 kg |
| Shipping Weight (approx) | 24 kg |
| Driver | 12″ front firing driver 12” side radiating passive radiators |
|---|---|
| Amplifier Class D | 800 watt dynamic 400 watt RMS |
| Overall Frequency Response: (± 3 dB) | 25 Hz – 180 Hz |
| Overall Frequency Response: (± 10 dB) | 22 Hz – 220 Hz |
| Low Pass Crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet Design | 22 mm MDF |
| Magnet Structure | Dual ferrite magnet motor |
| Woofer | 12” high excursion double vented basket driver with pp Membrane and convex cone |
| Voice Coil | Four Layer 2,5″ / 63 mm voice coil |
| Input | Gold plated Stereo/LFE RCA, Nickel plated High level in |
| Output | Gold plated Stereo/ LFE RCA |
| Power Selector | Off / Auto / On |
| Finishes | Flat matte black paint |
| Dimensions (W/H/D) (includes feet and connectors) | 41 cm x 48 cm x 41 cm |
| Weight (approx) | 25 kg |
| Shipping Weight (approx) | 28 kg |
