Description

RRP:  8"-$1700, 10"-$2100, 12"-$2500, 15"-$3000

Pressurized, precise low frequency for every living ambiance

The Deep Blue Series combines all the benefits of Velodyne Acoustics subwoofers in a living room-friendly format. The frequency response of the front-firing drivers, designed from the ground up, extends deep into the frequency basement for impressive home theater experiences.

 Specifications Images Downloads



The Features

  • Quad voice coil provides high efficiency, fast rise times and pulse fidelity with double ferrite magnets
  • Enclosed cabinet made of solid MDF material prevents distortion and vibration
  • With adjustable level, crossover frequency and phase, the Deep Blue subwoofers can be flexibly adapted to the listening room and existing equipment

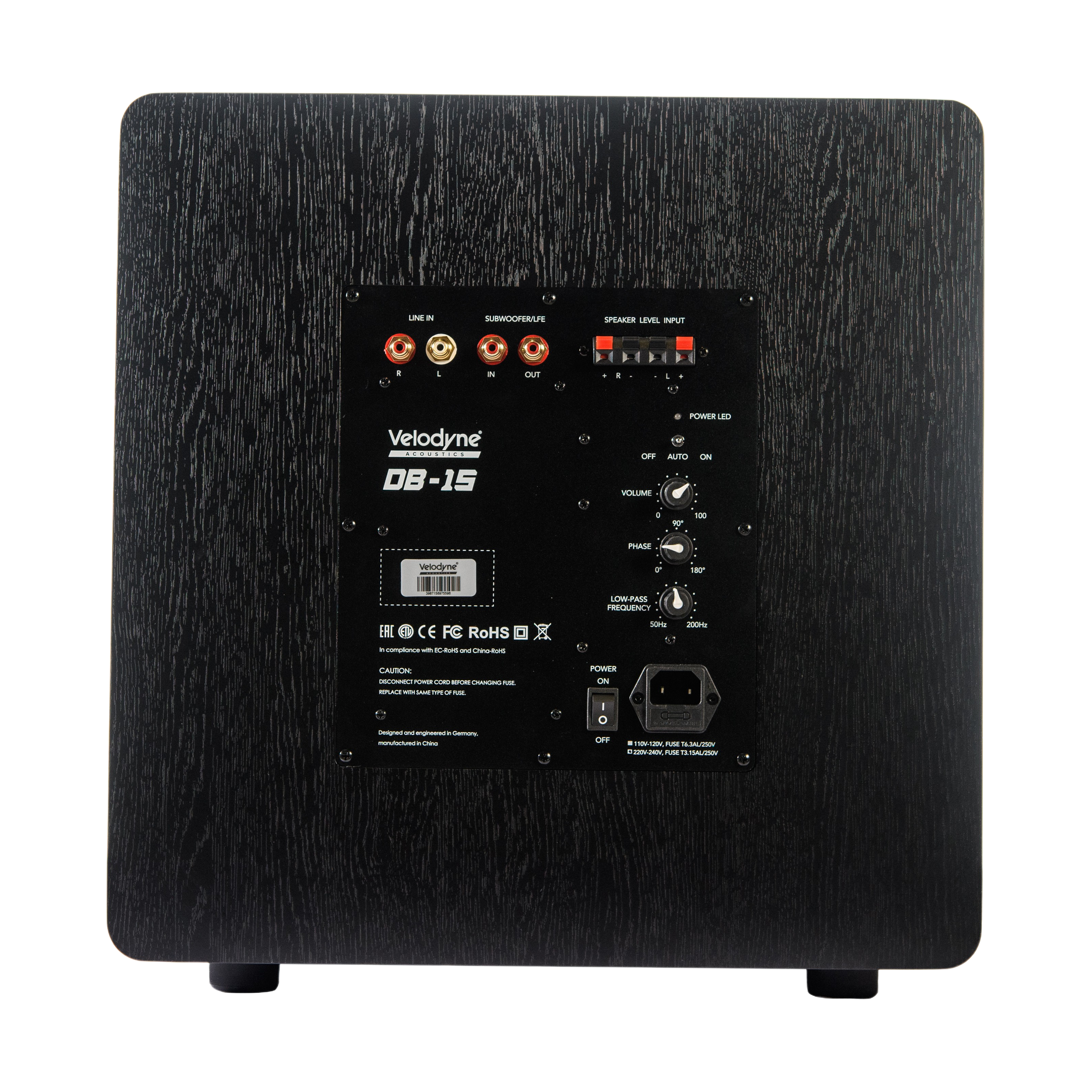

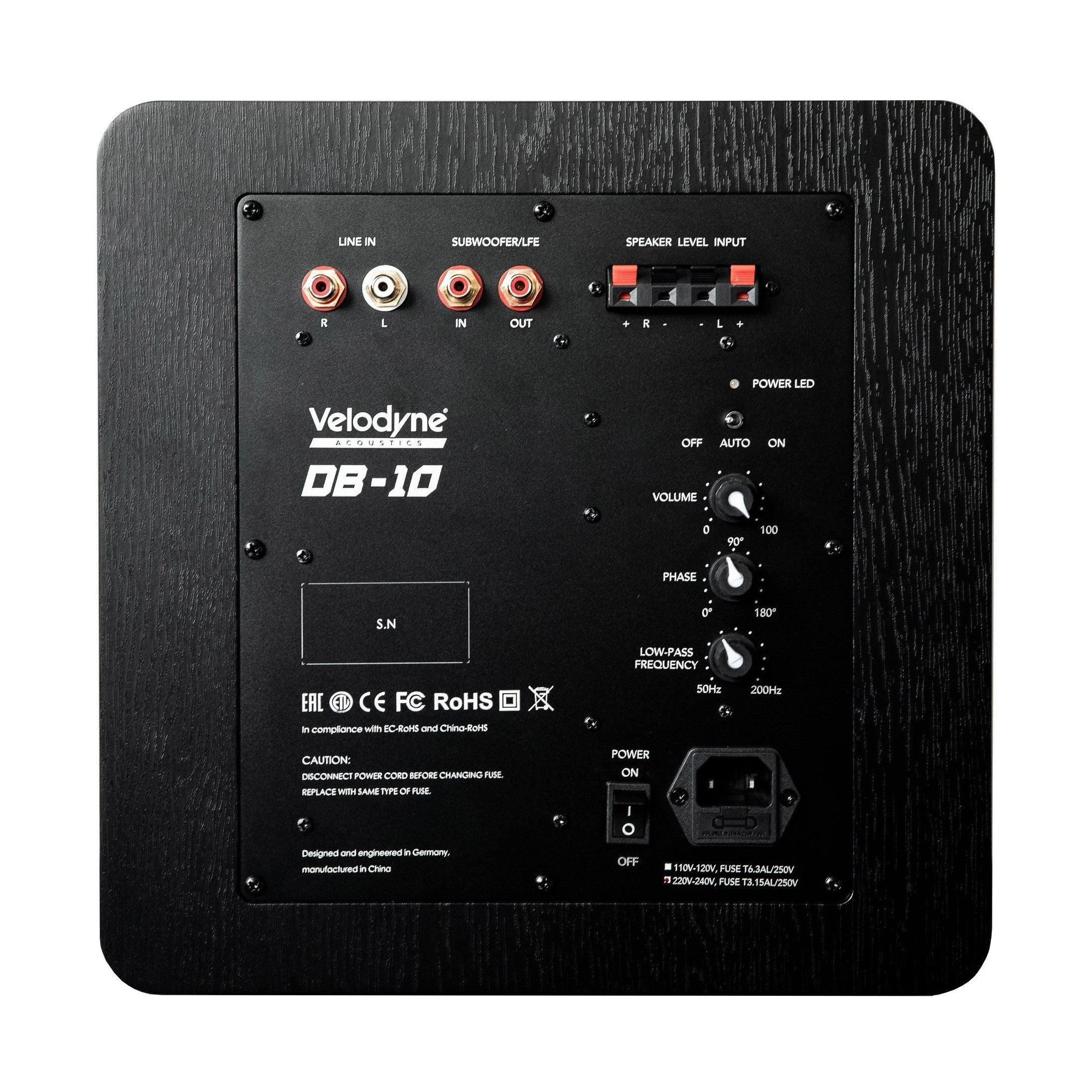

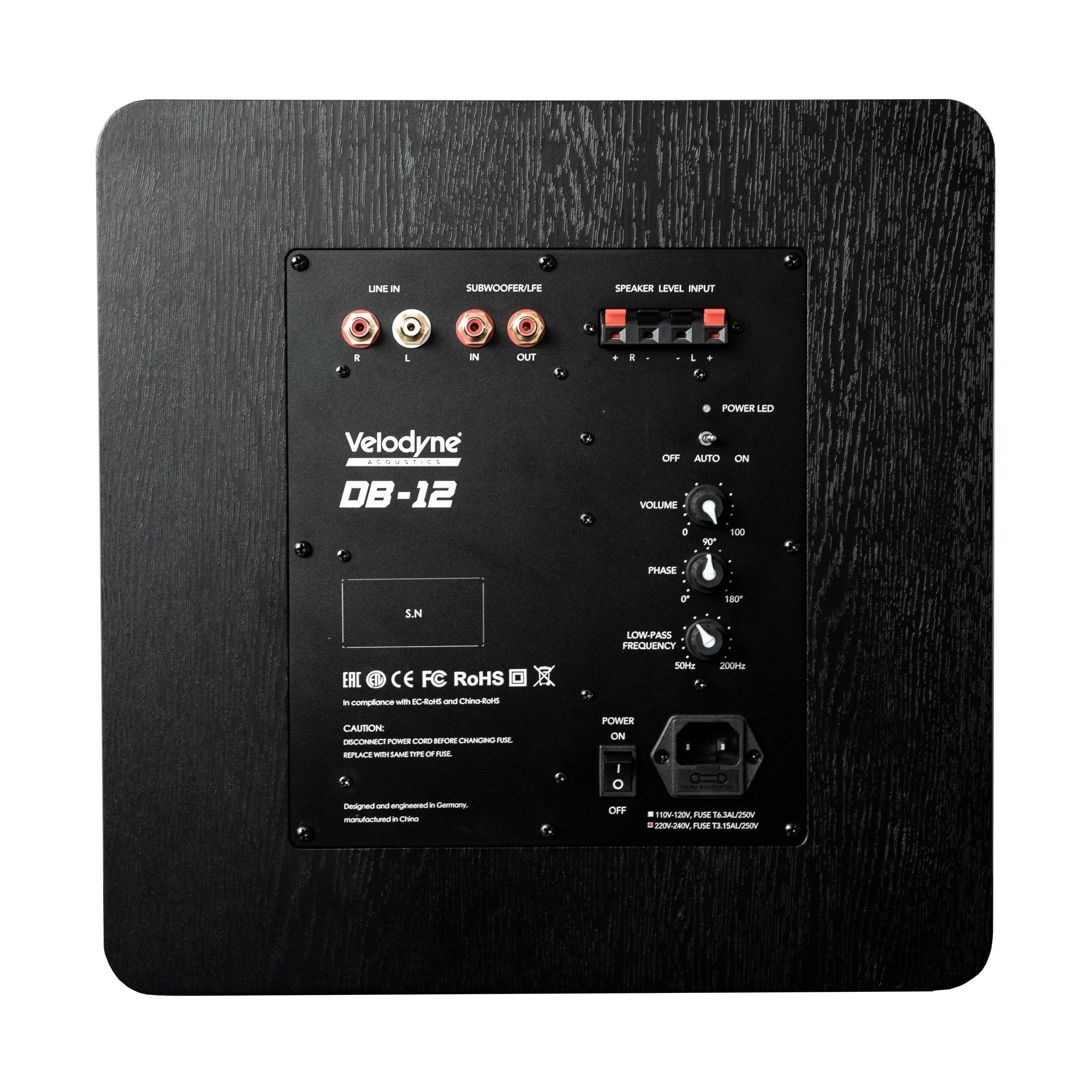

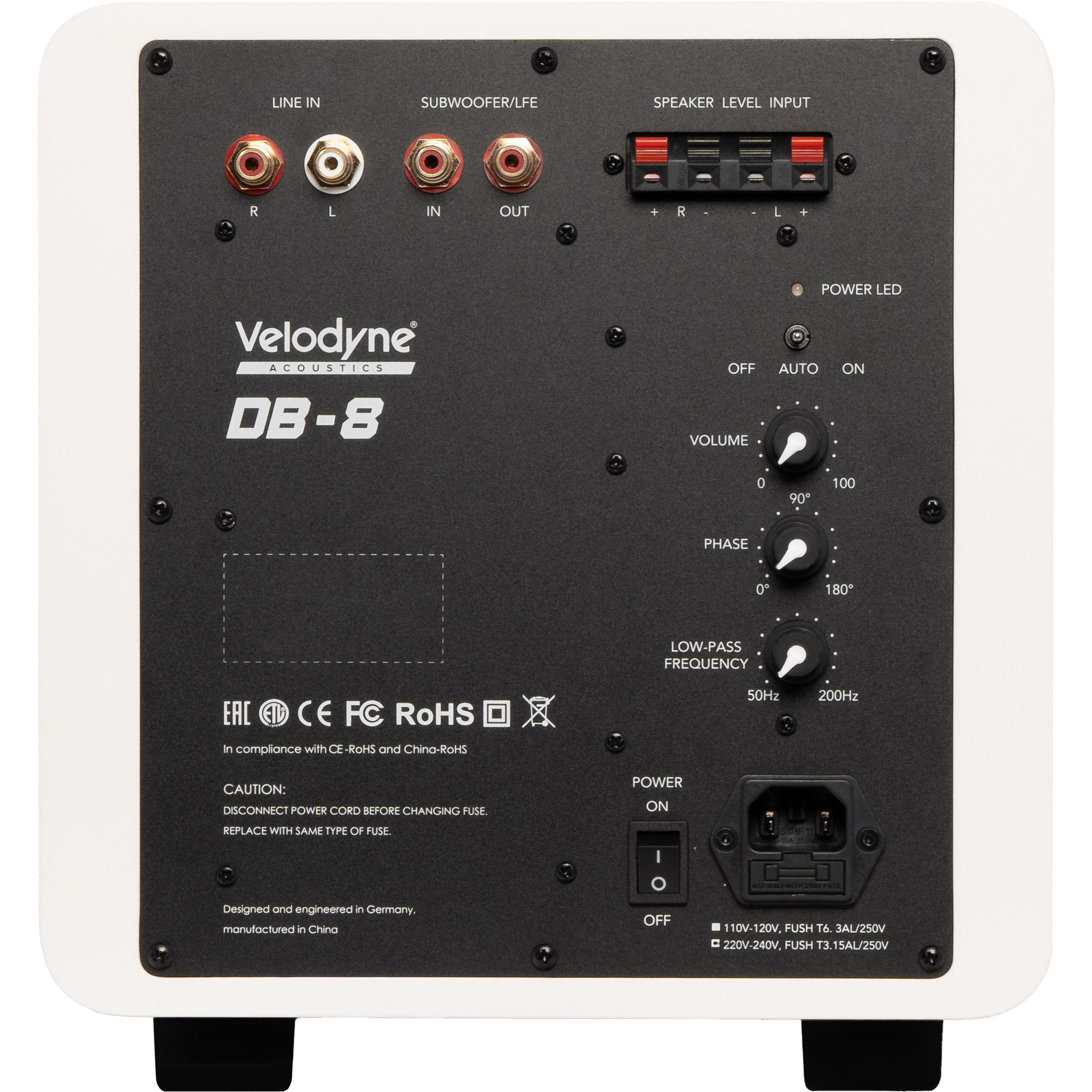

  • For connectivity, RCA input jacks are provided for the left and right channels, as well as a dedicated subwoofer input with loop-through capability

The matching subwoofer for every setup

With drivers ranging from 8 to 15 inches, the Deep Blue series offers the right subwoofer for every set-up.

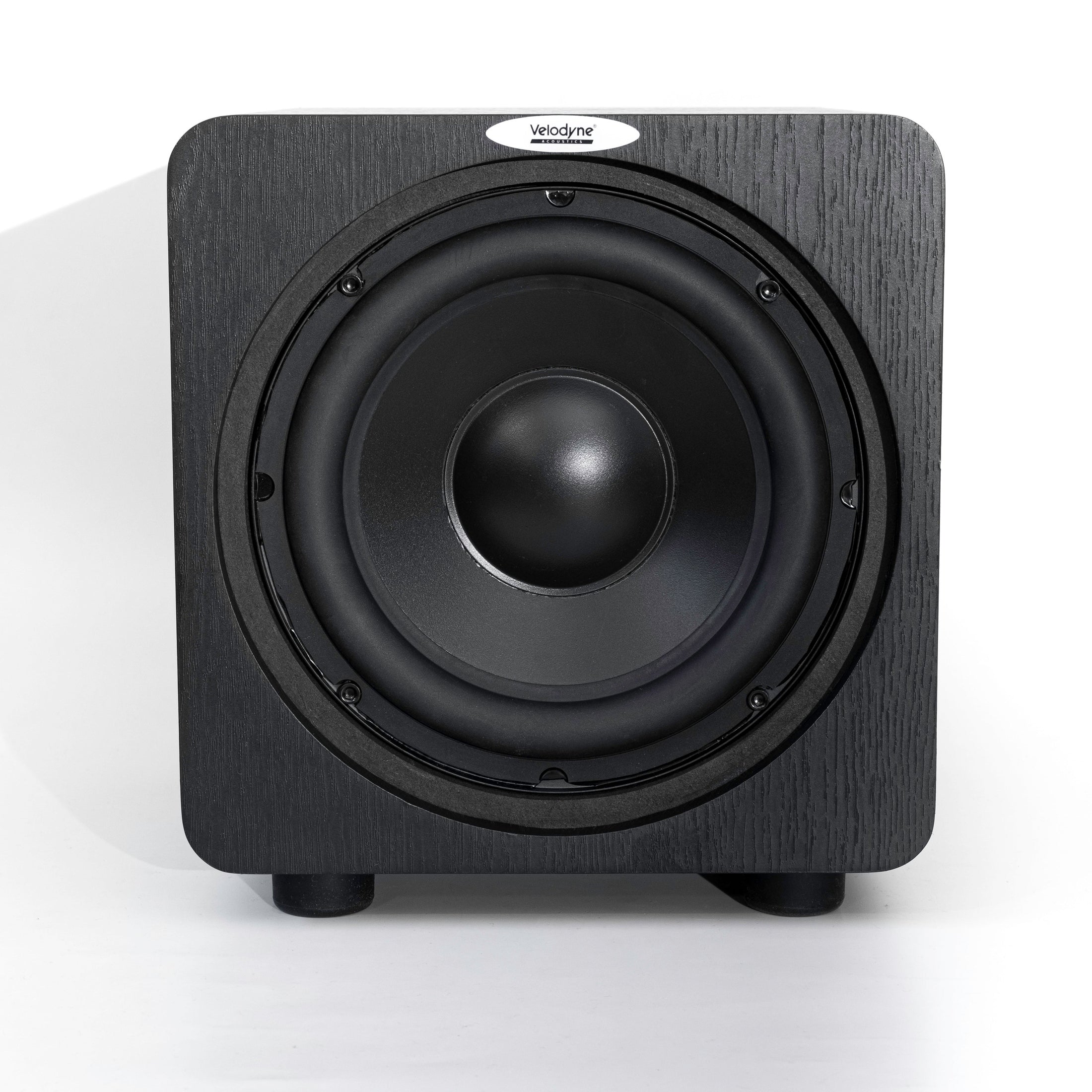

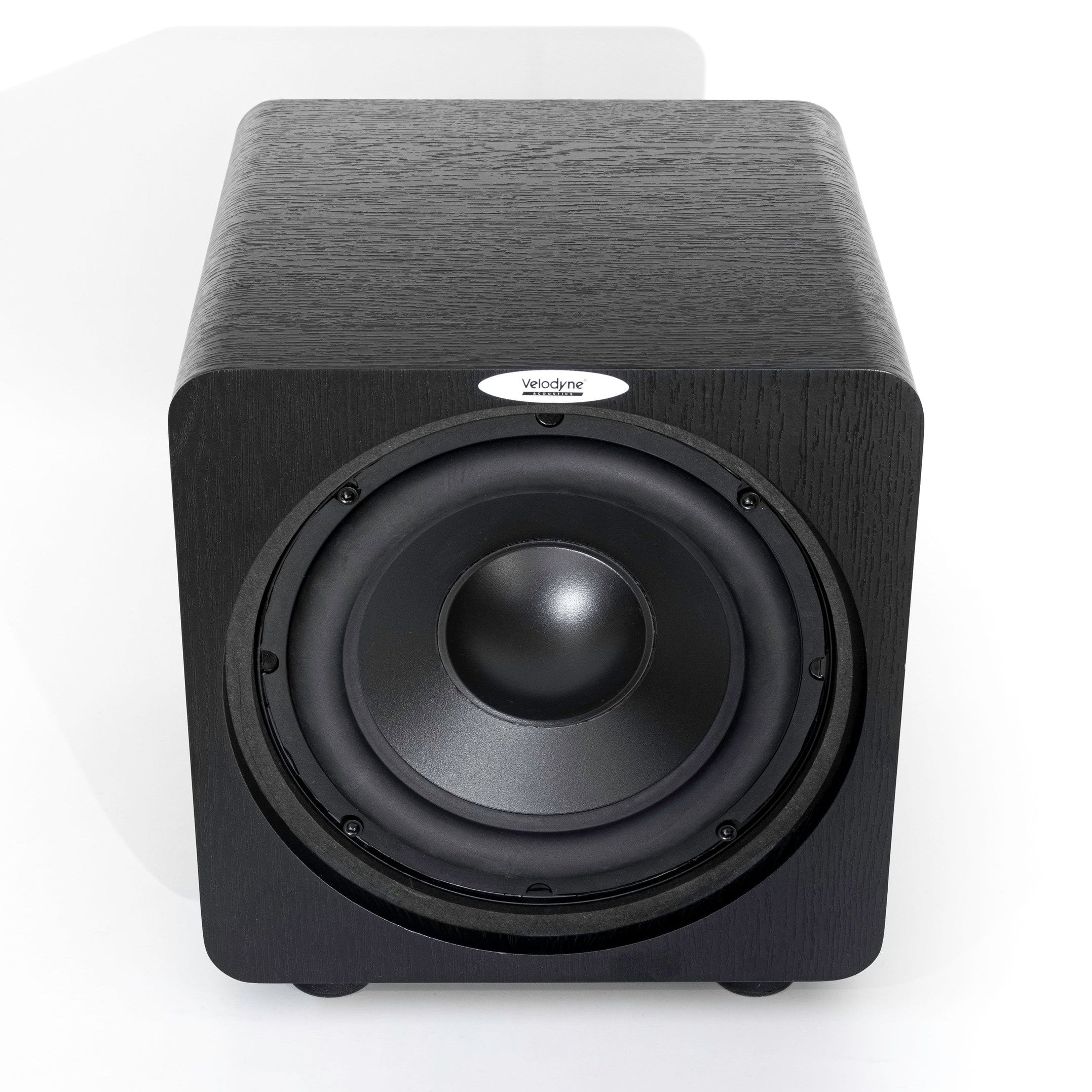

  • Deep Blue 8
Driver 8″ forward firing
Amplifier Class AB 800 watts dynamic
300 watts RMS power
Frequency Response: Overall
Frequency Response: (± 3 dB)		 18 – 300 Hz
32 – 180 Hz
Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)
Phase 0 to 180 degrees
Cabinet Design MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure Dual ferrite magnet motor
Woofer 8” high excursion double vented basket driver with PP inforced Membrane
Voice Coil Four Layer 2″ / 52mm Voicecoil
Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output Gold plated LFE /RCA
Power Selector Off / Auto / On
Finishes Black
Dimensions (W/H/D) (includes feet and connectors) 26 x 28 x 29 cm
Weight (approx) 9 kg
Shipping Weight (approx) 10 kg

  • Deep Blue 10
Driver 10″ forward firing
Amplifier Class AB 850 watts dynamic
350 watts RMS power
Frequency Response: Overall
Frequency Response: (± 3 dB)		 16 – 280 Hz
28 – 180 Hz
Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)
Phase 0 to 180 degrees
Cabinet Design MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure Dual ferrite magnet motor
Woofer 10” high excursion double vented basket driver with PP inforced Membrane
Voice Coil Four Layer 2″ / 52mm Voicecoil
Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output Gold plated LFE /RCA
Power Selector Off / Auto / On
Finishes Black
Dimensions (W/H/D) (includes feet and connectors) 29,6 x 31,6 x 34,8 cm
Weight (approx) 11 kg
Shipping Weight (approx) 12,5 kg



  • Deep Blue 12
Driver 12″ forward firing
Amplifier Class AB 850 watts dynamic
350 watts RMS power
Frequency Response: Overall
Frequency Response: (± 3 dB)		 15 – 250 Hz
26 – 140 Hz
Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)
Phase 0 to 180 degrees
Cabinet Design MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure Dual ferrite magnet motor
Woofer 12” high excursion double vented basket driver with PP inforced Membrane
Voice Coil Four Layer 2,5″ / 65mm Voicecoil
Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output Gold plated LFE /RCA
Power Selector Off / Auto / On
Finishes Black
Dimensions (W/H/D) (includes feet and connectors) 35 x 37 x 38,8 cm
Weight (approx)

13 kg
Shipping Weight (approx) 14,8 kg

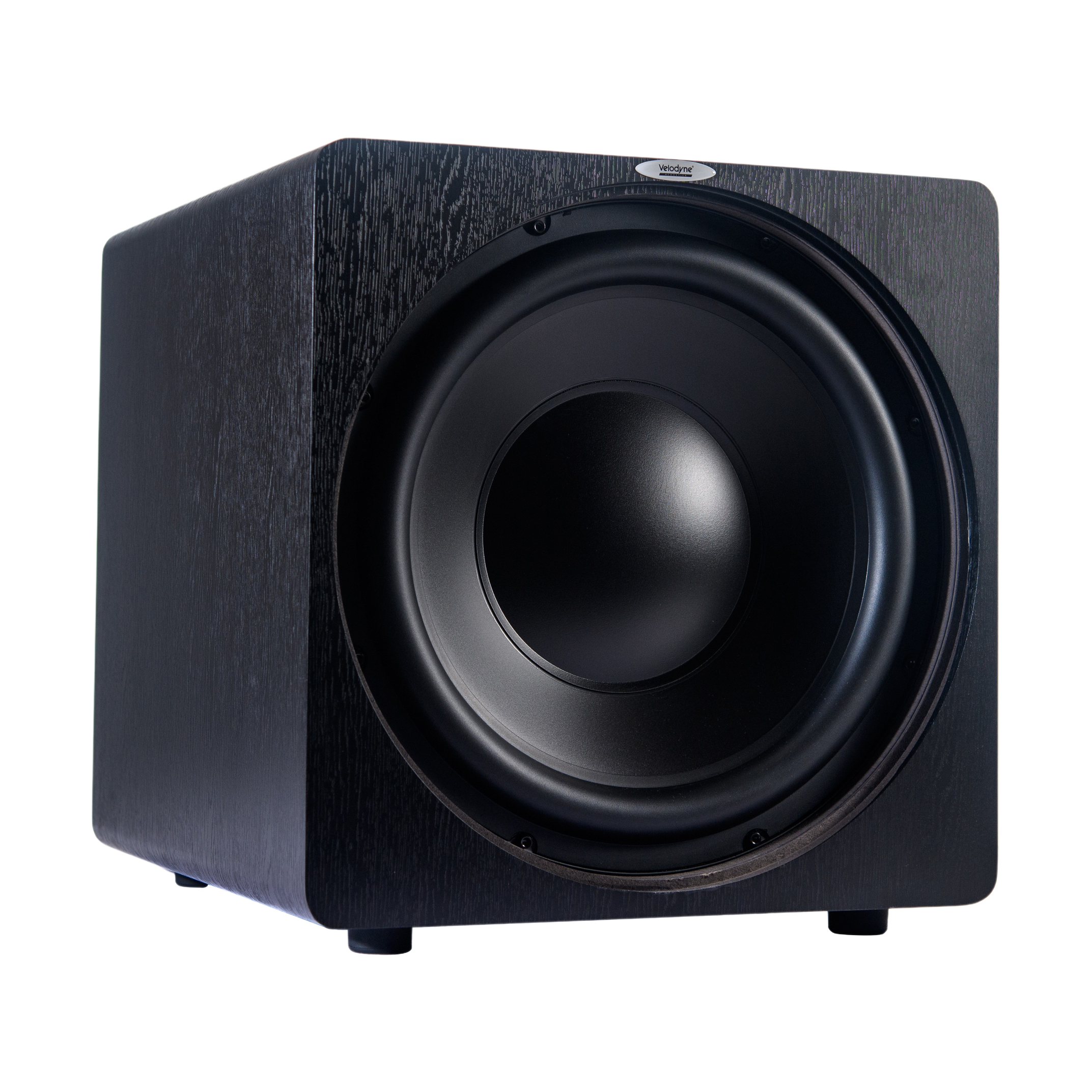

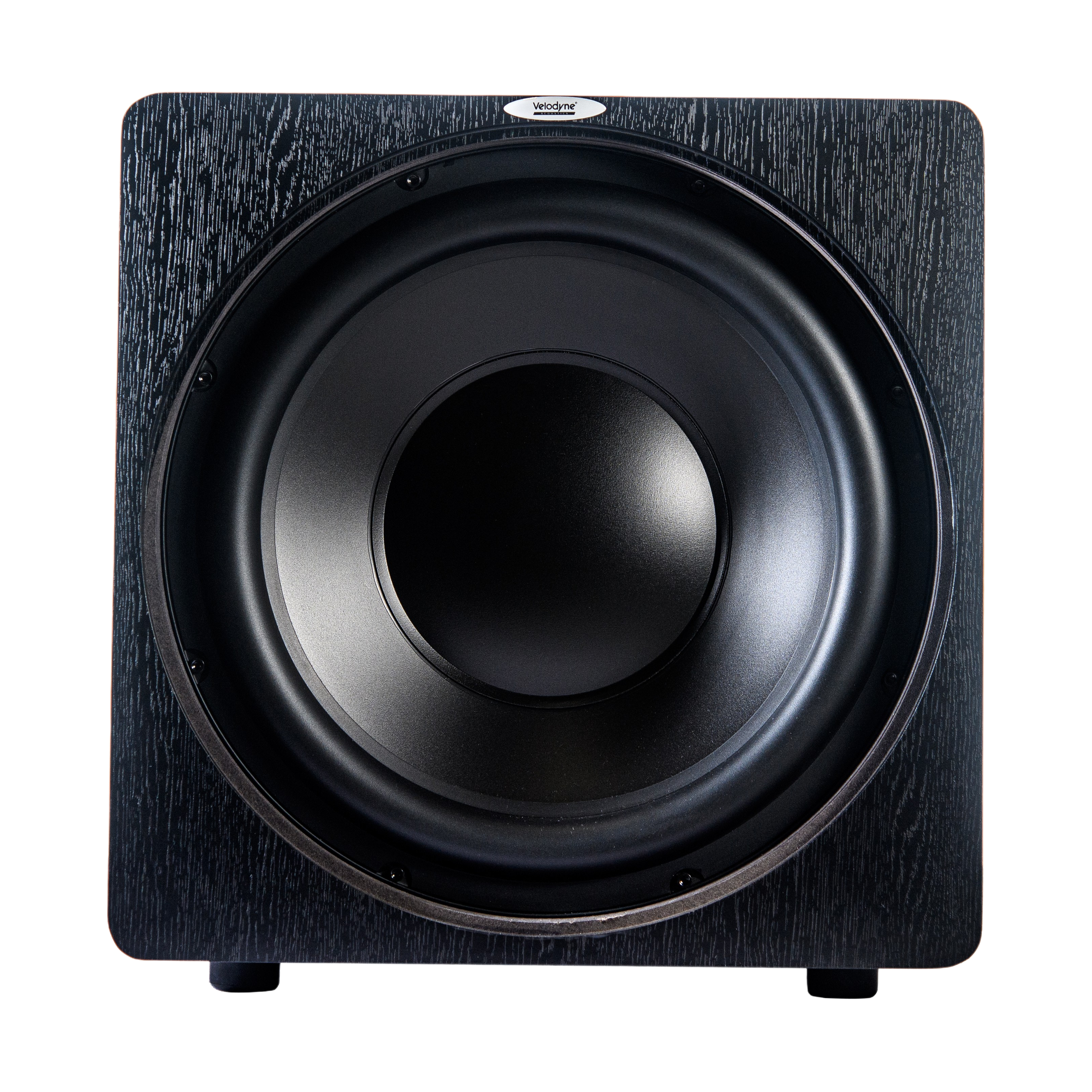

  • Deep Blue 15
Driver 15″ forward firing
Amplifier Class AB 1000 watts dynamic
450 watts RMS power
Frequency Response: Overall
Frequency Response: (± 3 dB)		 13 – 200 Hz
23 – 120 Hz
Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)
Phase 0 to 180 degrees
Cabinet Design MDF Closed Box with 52mm / 2” front Baffle
Magnet Structure Dual ferrite magnet motor
Woofer 15” high excursion double vented basket driver with PP inforced Membrane
Voice Coil Four Layer 3″ / 75mm Voicecoil
Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output Gold plated LFE /RCA
Power Selector Off / Auto / On
Finishes Black
Dimensions (W/H/D) (includes feet and connectors) 42,5 x 44,5 x 48,8 cm
Weight (approx) 23 kg
Shipping Weight (approx) 25,5 kg

Velodyne Acoustics Deep Blue Subwoofers

$1,700.00 CAD
