RRP: $1,099.00
Munich M1T V2
HiFi-Grade Music Transporter, Enjoy the Ultimate Sound Quality
A compact, feature-rich, high-quality network music transporter designed for music lovers who want to obtain more audio sources and enjoy the purest audio quality possible. The M1T’s hardware and software are optimized for better sound quality by improving many details without compromise. It is an ideal addition to your existing DAC and HiFi system to discover the potential of digital music and high-resolution streaming services.
Easy to Use, Pleasant User Experience
- Easy to set up & connect to an external DAC or speaker(s) through digital audio outputs
- Stay connected to digital music. Play and enjoy anytime without a PC involved.
- Master your music at your fingertips via mobile app, VitOS Orbiter.
- New Update: Munich M1T is now officially MQA-supported and certified.
Mobile App, VitOS Orbiter
Easily locate and set up a new device, browse and stream music. Listen to all your favorite songs with details displayed such as bitrate, sample rate, bit depth and format (e.g. DSD, WAV or FLAC).
Superior Hardware System
The M1T is born to pursue superior audio performance without any compromise.
- Elegant metal enclosure with a solid aluminum alloy front panel
- High-performance yet low-power CPU, 4-core 1.5GHz ARM Cortex-A72
- Substantial system memory for large streaming buffers and caches to run multiple applications simultaneously
- Digital output: AES/EBU, I2S, Coaxial. Sampling rate up to PCM 384KHz & DSD 5.6MHz (DSD128)
- USB-Audio output: Up to PCM 768KHz & DSD 11.2MHz (DSD256)
- Advanced circuitry with high quality components
- Fan-less heat dissipation with a highly efficient heat-sink (~20˚C lower after applied)
- A highly permeable EMI absorber (>120 @1MHz) to reduce electrical interference
- Gold plated ports (Coaxial & AES/EBU)
Obtain More Audio Sources For HiFi Systems
- High-resolution streaming services and Internet radios
- Play various music file formats and SACD files(Native DSD up to DSD256, and DoP up to DSD128).
Stream and Play in an Audio Network
- Play high-resolution streaming services and Internet radio
- Roon Ready player
- Play music from network shared storage (over SMB/CIFS)
- DLNA renderer (player)
Further Upgrade - The Combo Setup
Power Source Purifier
Connect the M1 to the Forester F1 linear power supply (supplying 5V 2A DC) to further improve power source and reduce the noise signal.
Product Specification
| Available Color | Black |
| Power Consumption | 10W at max |

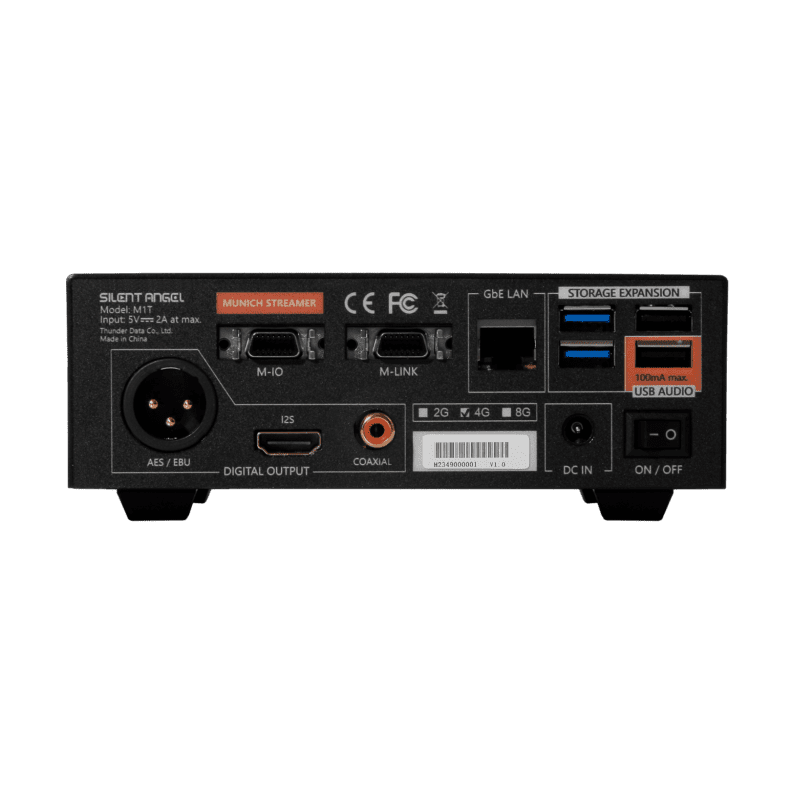

| Digital Outputs | AES/EBU port x 1 I2S port x 1* Coxial port x 1 - Supports up to PCM 384KHz and DSD 5.6M (DSD128) * I2S output signal is not compatible with Holo Audio's DAC |
| USB Audio | USB Audio port x 1 - Supports up to PCM 768KHz and DSD 11.2M (DSD256) |
| USB | USB 3.0 x 2 USB 2.0 x 1 - Above USB ports are for external storage |
| M-IO | M-IO x 1* *Reserved. To be enabled by future firmware upgrade |
| M-LINK | M-LINK x 1* *Reserved. To be enabled by future firmware upgrade |
| Ethernet | 1 GbE RJ45 x 1 |
| Music Format | AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE |
| Gapless Playback | Supported |
| MQA Handling | The M1T will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port. |
| LED Indicator | Mute LED x 1 Power LED x 1 Digital Output LED x 2* *Yellow light on when in DSD format / Green light on when in PCM format |
| Temperature | Operating: 32 ~ 86 °F Storage: -4 ~ 158 °F |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing) |
| Dimensions | 6.11(W) inch x 1.99(H) inch x 4.34(D) inch |
| Weight | 2.21 lbs |
| Document Download |
