SRP - $3295 Each
Who says in-ceiling speakers are always a compromise? The R3ic is the perfect in-ceiling match for any R-series Home Theater, where sacrifices to the perfect audio experiences are unacceptable, and perfection is the only path forward. Patent pending design, with directivity control derived from our DPC, creating a frequency response that matches world class speakers. Featuring the same Silk dome tweeter and midrange, with our custom paper pulp 6.5” woofers as our in-walls and highly regarded in-room speakers. This enables a flat frequency response angled for 30 degree main listening window with off axis and power response to match our in R-series speakers for flawless timber matching needed for true immersive audio. A solid 4mm thick aluminum back box for consistent sound with limited sound transmission into other rooms. This ability to be used not only for in-ceiling surround but in-ceiling LCR or in-wall wide speakers and THX Certified Dominus for surrounds. Better coverage for even response across more seats with no compromises!
It's all in the details

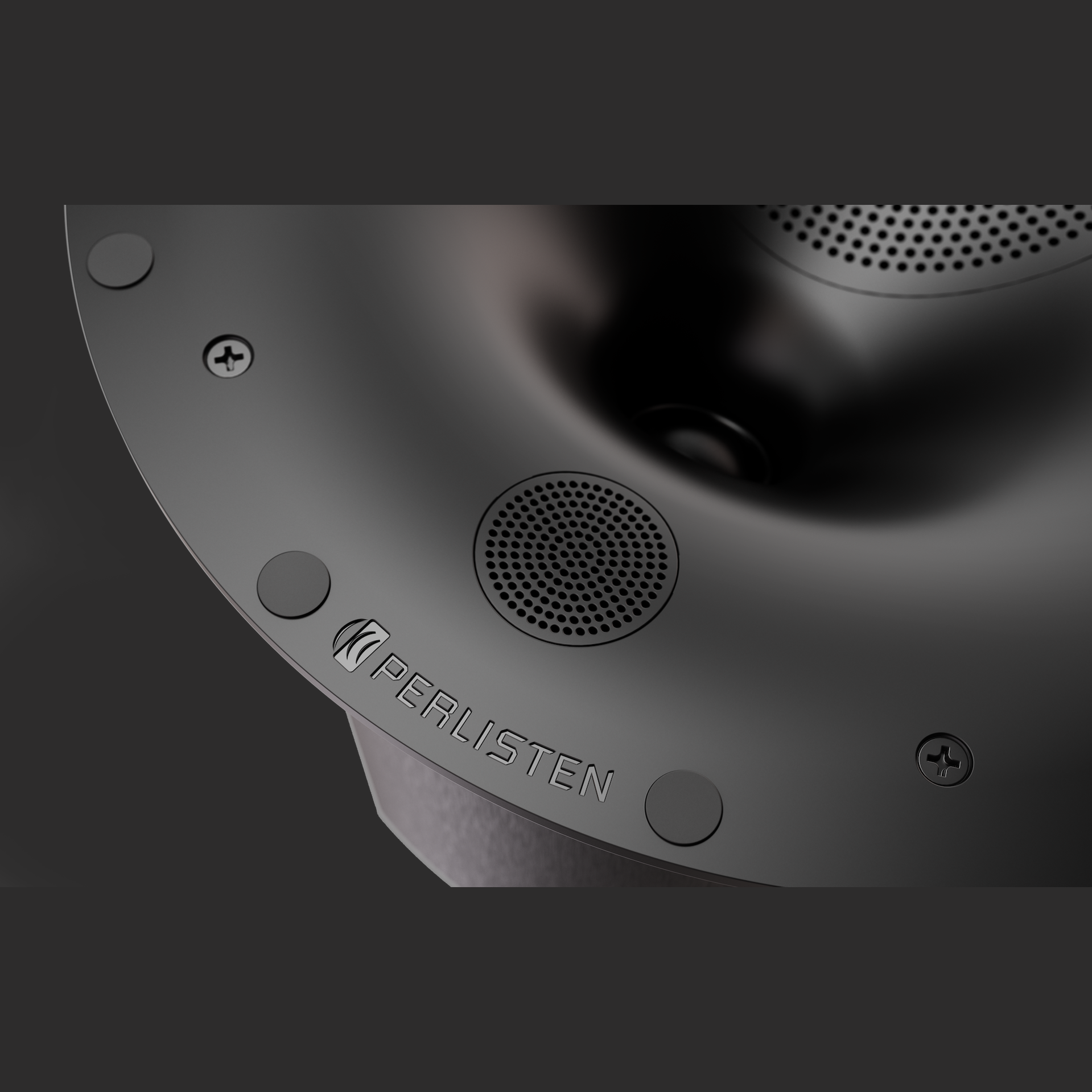

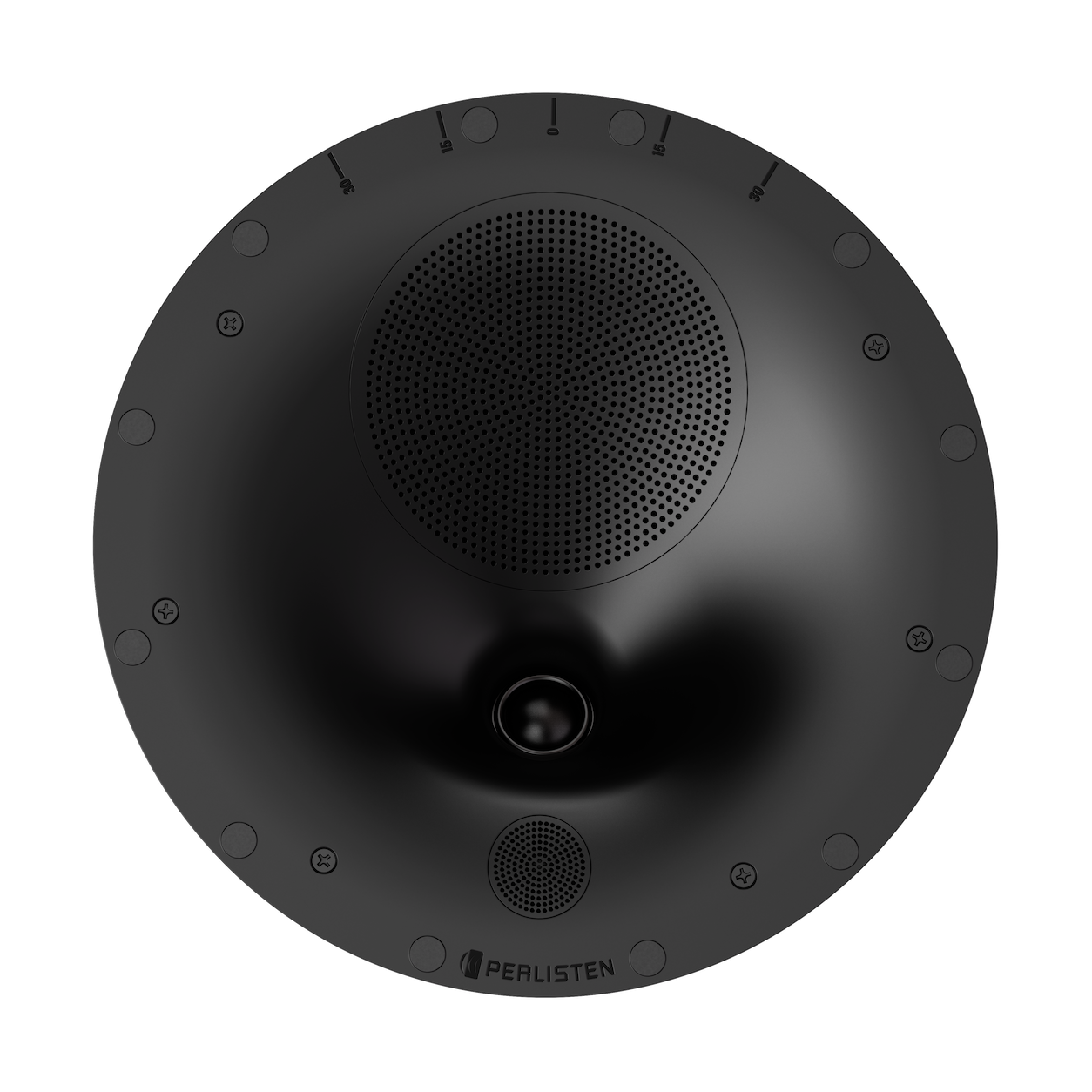

The perfect solution for high end Dolby Atmos, DTS:X, and Auro-3D applications. Featuring an innovative new waveguide array controlling Mid/High frequencies, centered by our 28mm soft dome tweeter and 28mm soft dome mid. Optimized for in-ceiling applications where a 30 degree reference axis is desired as well as larger listening window in the direction towards the listening space. Extremely versatile – Can be used as L,C,R, surround, height, or wide channel speaker. Once again, all transducers were developed ground up by our engineers shareing largely from with R-Series, based on decades of research, culminating in this world class design. Utilizing advanced Comsol acoustical modeling, the result is one of the most technologically advanced in-ceiling loudspeakers available. This new tweeter/waveguide DPC-Array delivers amazing accuracy, smoothness, and directivity control to handle the critical vocal range and delicate treble. The R3ic also benefits from our unique and proprietary timbre matching technique across the entire R-Series.
| Enclosure Alignment | 3-way acoustic suspension |
| Driver compliment | DPC Array: 28mm silk dome tweeter 28mm silk dome mid Woofers: 165mm Alum frame, HPF pulp |
| Sensitivity | 88.8dB / 2.83v / 1.0m |
| Impedance | 4Ω nominal / 3.0Ω min |
| Listenting Window (from 30deg Ref) | Horizontal: +/-55 deg Vertical: +/-30 deg |
| Response Linearity | 100 - 20kHz +/-1.5dB window |
| Frequency Response | 59 - 30kHz (-6dB) 46 - 33kHz (-10dB) |
| Typical In Room bass extension | 51 Hz (-6dB) 36 Hz (-10dB) |
| Overall Dimensions (with grille) | 343.3 diam x 194.8mm depth 13.5" diam x 7.7" depth |
| Recommended cutout | 305mm diameter 12" diameter |
| Weight | 20.4lbs. (9.4kg) 11.8lbs. (5.4kg) without enclosure |
| Recommended Amplifier Power | 50 - 200W (with 80Hz HPF) 50 - 125W (full range) |
| SPL capability @1m (100-20kHz) | 111.8dB peak 111.0dB peak <3% 2nd, 3rd Harmonics |
| Certification | THX Dominus, THX Ultra |
