The E-02 is a fully balanced phonostage preamplifier that features fully balanced circuits from the input stage right through to the final output stage. It is perfectly designed for handling the extremely low-level signals from a MC cartridge, minimize noise interference and powerfully amplify signals with low impedance to bring the very best sound out of your beloved MC cartridge collection.

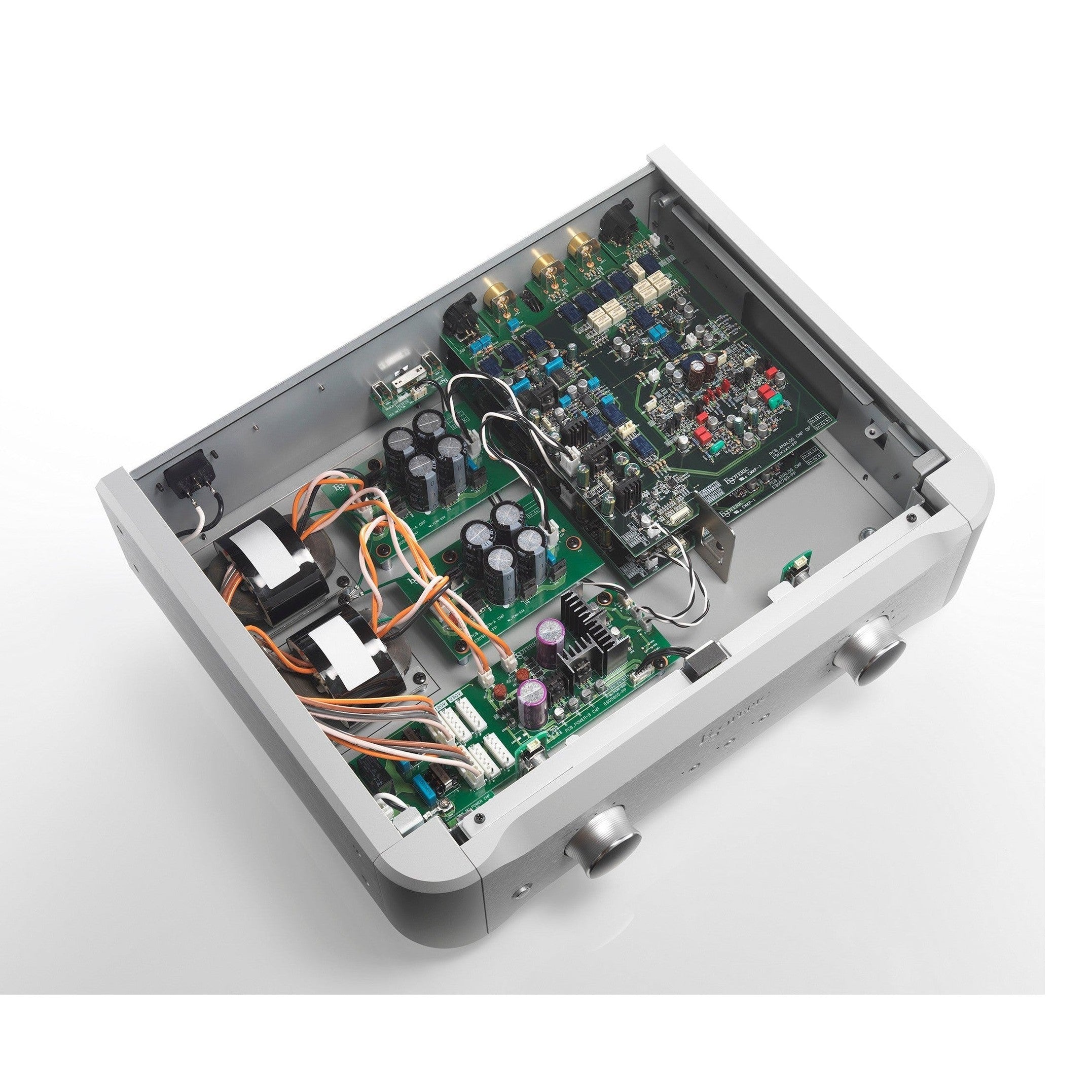

Identical power supply transformers, power boards and amplifier circuits are mounted independently on each channel. Outstanding channel separation and robust power supply components deliver solid, powerful, and exceptionally high quality audio playback.

The E-02 features a newly designed fully balanced MC head amplifier and RIAA amplifier. The NF-CR type RIAA amplifier achieves outstanding RIAA characteristics of ±0.2dB together with minimum Negative Feedback, and the high voltage power supply delivers an exceptionally wide dynamic headroom.

The E-02 employs the same buffer amplifier technology as our flagship Grandioso C1 preamplifier, which features a high current output capability and an exceptionally high slew rate of 2,000V/μs. Each channel is equipped with two buffer amplifiers which drive the hot and cold signals separately when the system is in XLR output mode. When switched to RCA output mode, however, the amplifiers work in parallel to maximize the output linearity. This design achieves super-fast current output, resulting in breathtaking super-dynamic sound.

The E-02 is compatible with ESOTERIC's unique ES-LINK Analog current transmission in addition to regular XLR and RCA outputs. ES-LINK Analog is a current transmission method that fully utilizes the high speed and powerful capabilities of the HCLD circuit to fully maximize the potential of compatible devices.

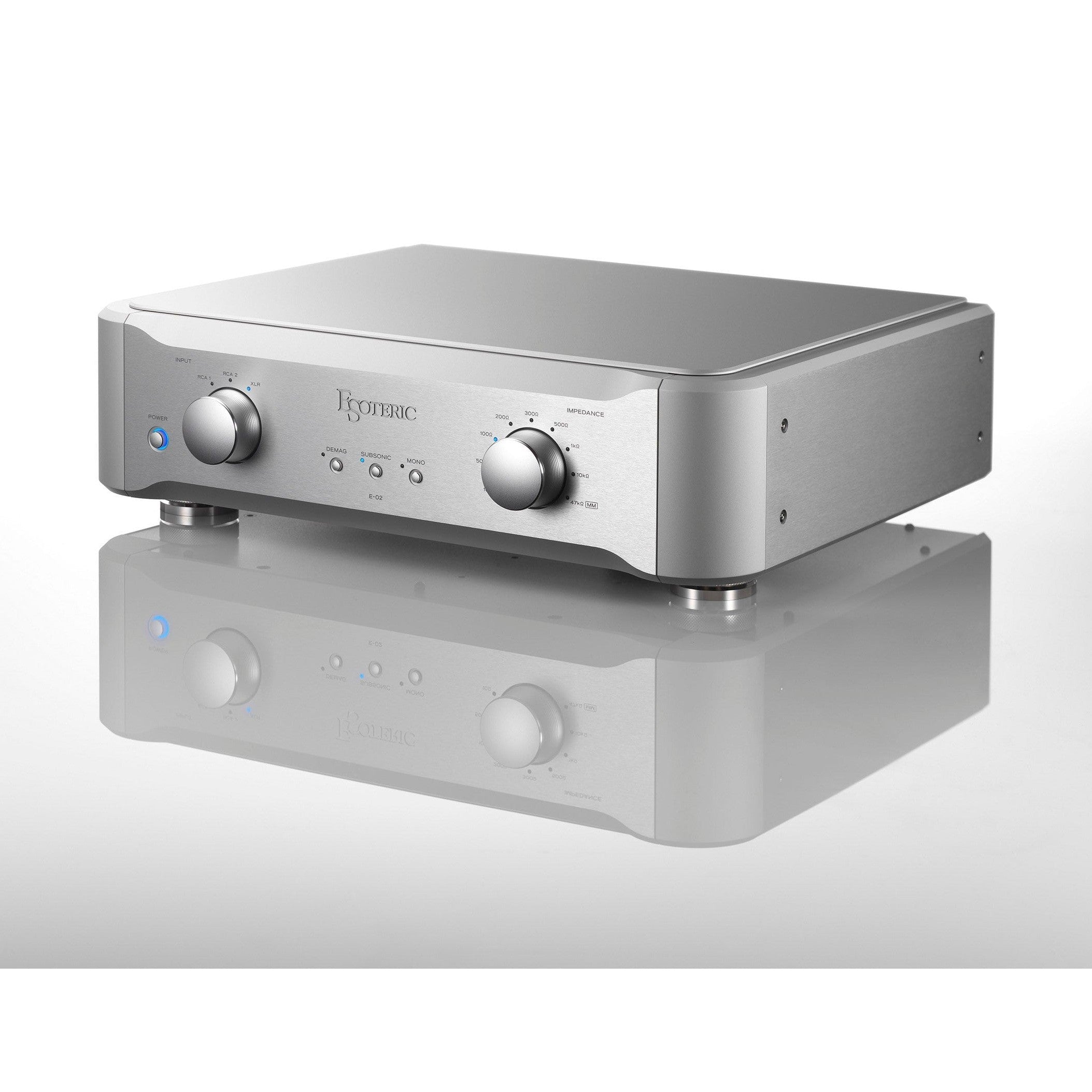

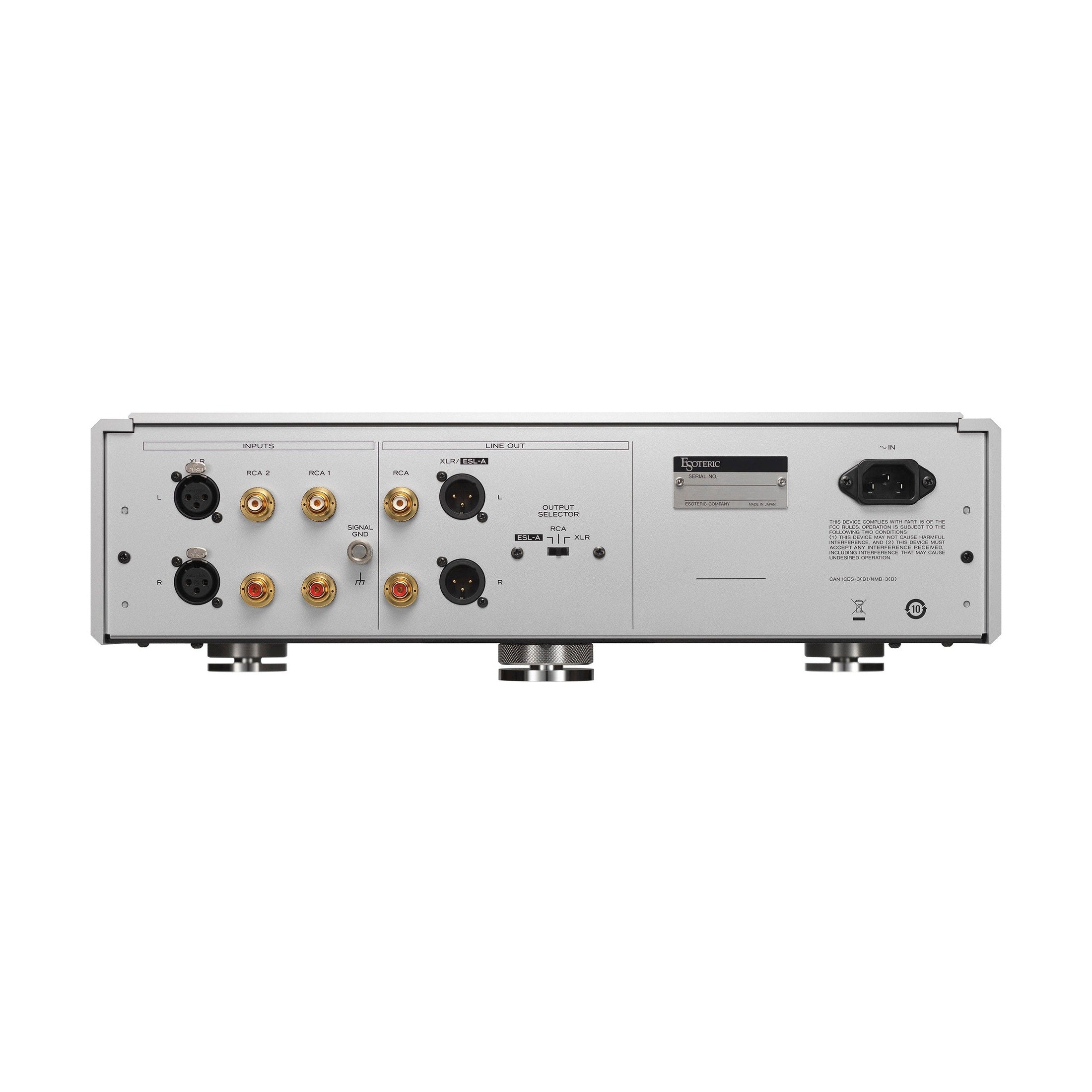

The E-02 is equipped with one XLR (MC dedicated) input and two RCA inputs, with the RCA inputs also featuring fully balanced transmission throughout all stages after the input amplifier. Cartridge impedance, filter ON/OFF and MONO switch ON/OFF settings can be configured as presets for each input, and switched easily using the large dial control on the front panel.

The E-02 enables you to select between nine different impedance positions (MC: 10Ω, 50Ω, 100Ω, 200Ω, 300Ω, 500Ω, 1kΩ, 10kΩ, MM: 47kΩ).

Simply playback a record for around 30 seconds with the DEMAG function switched on to demagnetize any unexpected magnetization of the cartridge's coils or step-up transformers and recover the original sound. The E-02 is equipped with a sub-sonic filter (17Hz, -6dB/octave), a MONO switch and output switching (XLR, RCA, ES-LINK Analog) controls.

Phonostage amplifiers that amplify extremely low signal levels are highly sensitive to vibration, which is why ESOTERIC pays special attention to chassis construction in order to control vibration wherever possible. The arrangement of each component is designed in minute detail, and a slit construction is used in the bottom chassis that supports all of the circuits to minimize interference. The highly rigid thick aluminum enclosure and proprietary pinpoint feet (patent no. JP4075477) are extremely effective in minimizing the effects of vibration from external sources.

In our uncompromising pursuit of superior sound quality, ESOTERIC uses nothing but the highest grade components including custom-designed power supply capacitors and machined gold-plated RCA terminals. The two large selector knobs on the front panel feature a ball-bearing structure based on the VRDS drive mechanism, providing a beautifully smooth analog feel without any wobble. Knobs are sculpted from solid aluminum for a truly refined, high-end look and feel.
